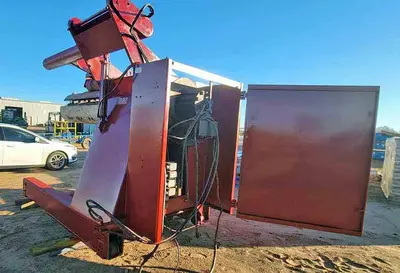

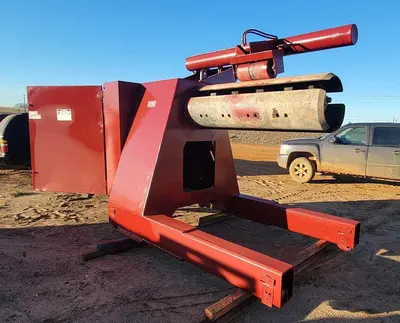

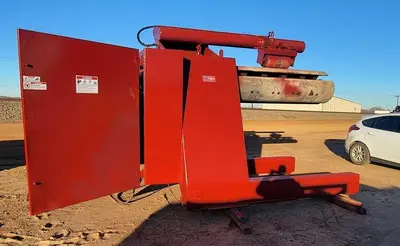

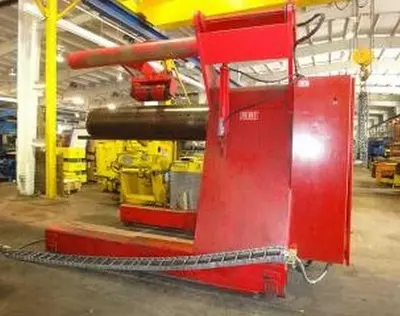

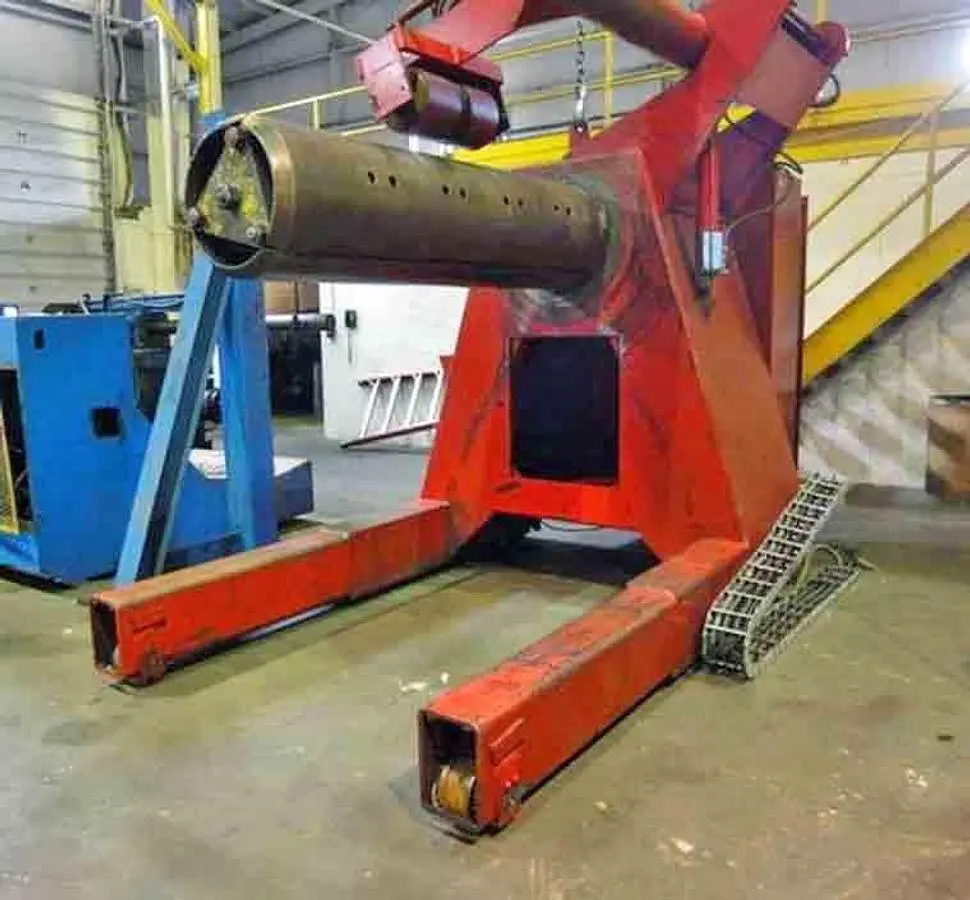

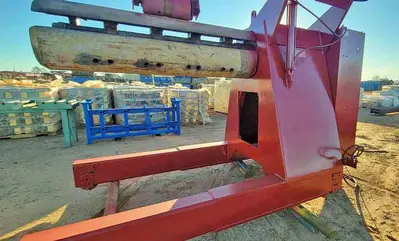

USED RED BUD RM30-72-60

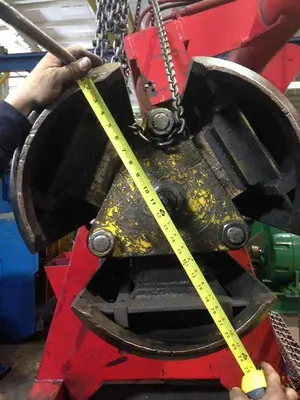

The Red Bud RM30-72-60 uncoiler is a robust, used industrial machine designed to manage heavy coil loads with a maximum weight capacity of 60,000 lbs. This machine is well-suited for handling large coils with an outer diameter of up to 72 inches and an inner diameter of 20 inches. The mandrel, which has a face width of 76 inches, includes hydraulic expansion, providing efficient and secure handling of materials.
For precise material handling, the uncoiler features a hydraulic feed-up drive and sliding base, ensuring smooth operation and flexibility. The passline height is set at 68 inches, accommodating various production line setups. The machine is equipped with a powered hold-down roll for consistent performance. The air-actuated disc brake enhances safety and control during operations.
Ideal for a range of material thicknesses from .020 inches to .135 inches, the Red Bud uncoiler is engineered for high performance in demanding applications. It offers a reliable solution for industries requiring robust and efficient coil handling and processing capabilities.
