OVERVIEW

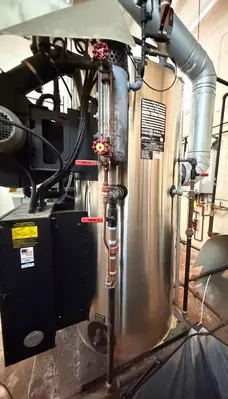

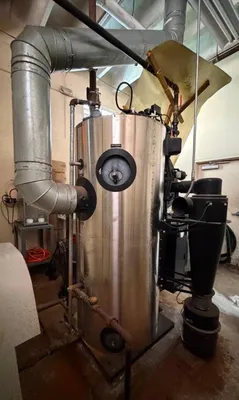

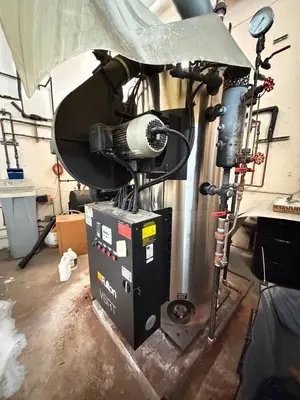

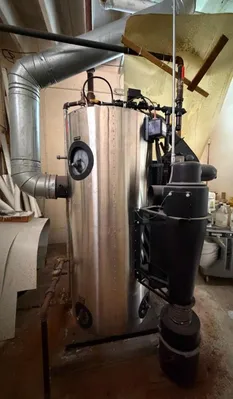

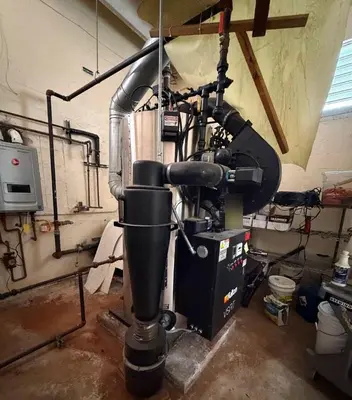

Fulton VSRT30 Vertical Spiral Rib Tubeless Steam Boiler - National Board Number 752, Serial Number F10110765A, Year Built 2019. Professional-grade natural gas-fired vertical spiral rib tubeless steam boiler featuring 1,005,000 BTU/HR output capacity with 1,035 lbs/hr steam generation at 150 PSI maximum allowable working pressure and 65 square feet heating surface. Complete packaged system includes Fulton integrated control panel, cyclone blower for combustion air, VFD drive control, and complete electrical systems. Built to ASME standards with innovative vertical spiral rib tubeless design for superior heat transfer and efficiency. Features 0.375" shell thickness, 1.25" head thickness, stainless steel construction, and modern digital monitoring systems. Maximum BTU input at altitude 1,200,000. Gas supply pressure range: 3" WC minimum to 13.8" WC maximum. Manifold gas pressure range: -2.8" WC minimum to -3" WC maximum. Complete with all safety trim and controls installed. Ideal for commercial buildings, light industrial facilities, institutional applications, or any operation requiring compact, efficient steam generation with proven Fulton vertical spiral rib tubeless technology and space-saving design.
EQUIPMENT SPECIFICATIONS

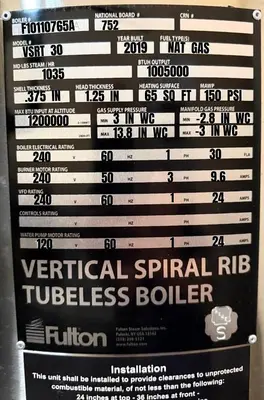

Boiler Model Information:
Manufacturer: Fulton
Location: Pulaski, NY USA 13142
Product Line: Vertical Spiral Rib Tubeless Boiler
Model Number: VSRT 30
Serial Number: F10110765A
National Board No: 752
Year Built: 2019
Configuration: Vertical spiral rib tubeless steam boiler
Type: Natural gas-fired
Horsepower: 30 HP
Performance Ratings:
BTU Output: 1,005,000 BTU/HR
Horsepower: 30 HP
Steam Capacity: 1,035 lbs/hr
Maximum BTU Input at Altitude: 1,200,000
Heating Surface: 65 sq. ft.
Maximum Allowable Working Pressure: 150 PSI
Shell Thickness: 0.375" (3/8")
Head Thickness: 1.25"
Fuel Type: Natural Gas
Gas Supply Specifications:
Gas Supply Pressure Min: 3" WC (Water Column)
Gas Supply Pressure Max: 13.8" WC
Manifold Gas Pressure Min: -2.8" WC
Manifold Gas Pressure Max: -3" WC
Electrical Specifications:
Boiler Electrical Rating: 240V, 60 Hz, 1-Phase, 30 FLA
Burner Motor Rating: 240V, 50 Hz, 3-Phase, 9.6 Amps
VFD Rating: 240V, 60 Hz, 1-Phase, 24 Amps
Water Pump Motor Rating: 120V, 60 Hz, 1-Phase, 24 Amps
Physical Configuration:
Configuration: Vertical
Design: Spiral rib tubeless
Construction: Stainless steel
Mounting: Floor-mounted
Finish: Stainless steel exterior
Origin: USA
KEY FEATURES & BENEFITS
Fulton Quality Manufacturing:
Premium USA boiler manufacturer
2019 year of manufacture
Vertical Spiral Rib Tubeless series
National Board certified (752)
Heavy-duty commercial construction
Professional installation quality
Nearly new condition
Pulaski, New York manufacturing
High-Efficiency Performance:
30 horsepower rating
1,005,000 BTU/HR output
1,035 lbs/hr steam generation
65 sq. ft. heating surface
150 PSI maximum working pressure
1,200,000 BTU maximum input at altitude
Natural gas fuel efficiency
Compact vertical design
Continuous duty rated
Vertical Spiral Rib Tubeless Design:
Innovative spiral rib technology
Tubeless construction eliminates tube maintenance
No tube bundle to clean or replace
Vertical orientation saves floor space
Enhanced heat transfer surfaces
Spiral rib configuration maximizes efficiency
Faster steam generation
Better thermal efficiency
Reduced maintenance requirements
Longer service life
Improved water circulation
Advanced Combustion System:

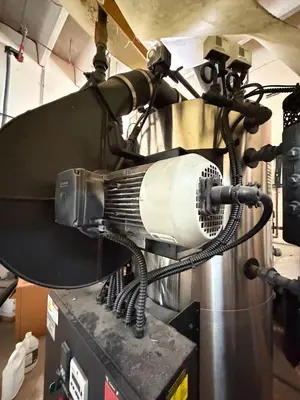

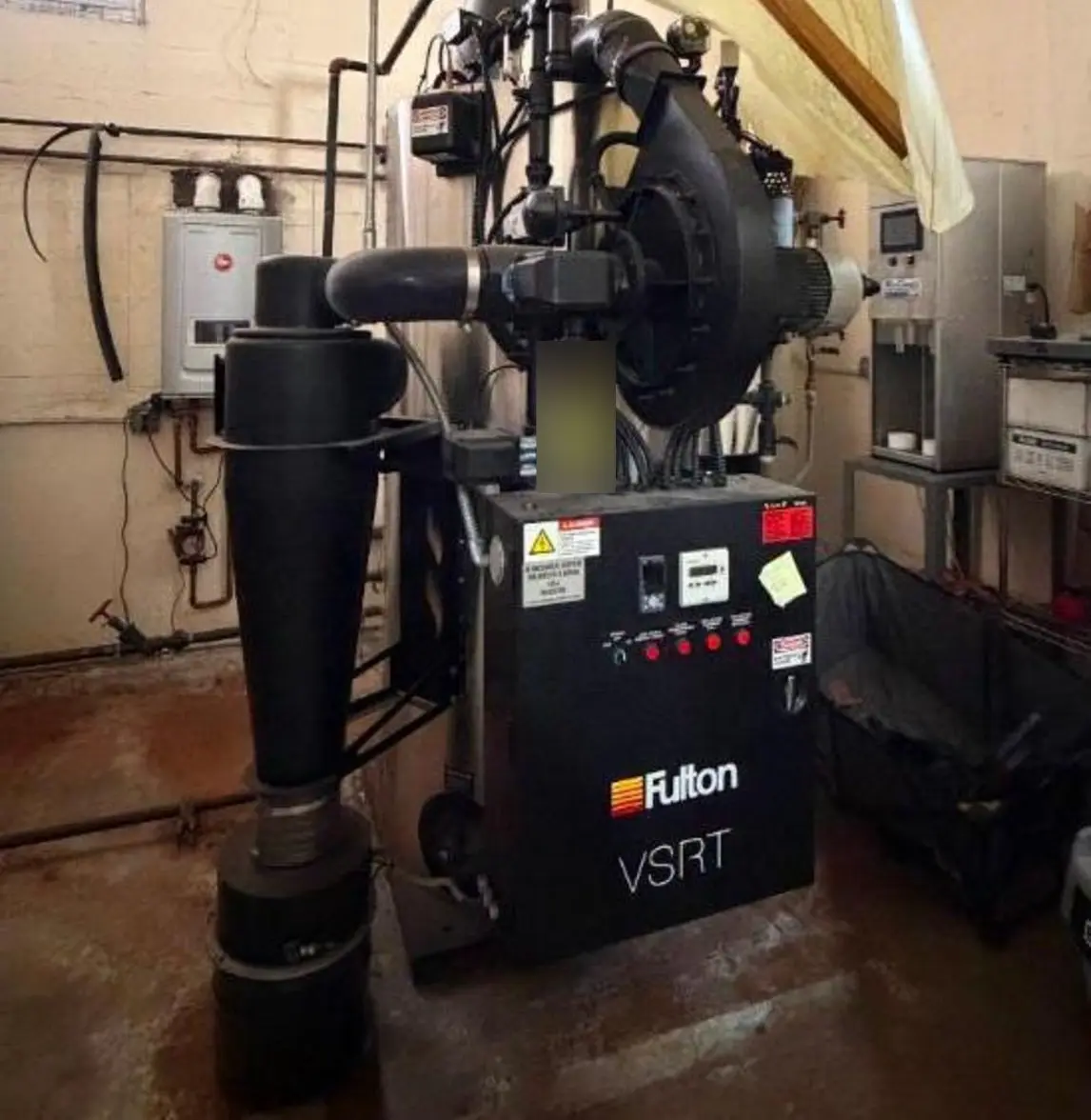

Cyclone blower for combustion air
Variable frequency drive (VFD) control
VFD rated 24 amps
Optimized air/fuel ratio
Enhanced combustion efficiency
Reduced emissions
Professional burner management
Modern control technology
Digital Control Systems:

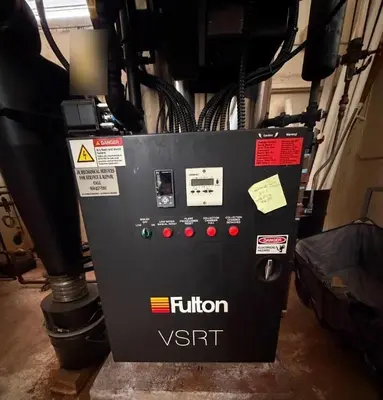

Fulton integrated control panel
VFD drive control
Real-time monitoring
Diagnostic capabilities
Temperature and pressure monitoring
User-friendly operation
Warning and alarm indicators
Professional-grade components
Heavy-Duty Construction:
0.375" (3/8") shell thickness
1.25" head thickness
Stainless steel construction
Corrosion-resistant materials
Robust design
Long service life
Minimal maintenance
Industrial-grade quality
Nearly New Condition:
2019 year of manufacture
Modern design and technology
Recent construction standards
Minimal operating hours
Excellent condition
Current safety standards
Up-to-date engineering
Extended service life remaining
Safety & Compliance:
150 PSI ASME design pressure
National Board certified (752)
Multiple safety interlocks
Safety relief valve protection
Low water cutoff protection
Flame safeguard system
Code-compliant installation
Professional engineering
ETL certified to UL STD 795 and CSA STD 3.1
SYSTEM COMPONENTS

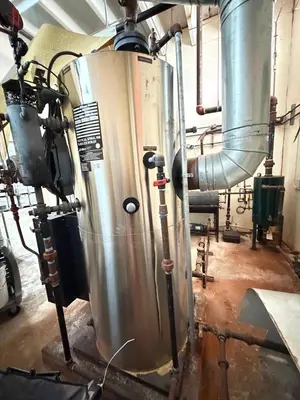

Main Boiler:
Fulton Model VSRT 30
Serial Number F10110765A
National Board No: 752
Year 2019 manufacture
Vertical spiral rib tubeless design
30 HP capacity
65 sq. ft. heating surface
150 PSI MAWP
Stainless steel construction
Complete with all trim
Burner System:
Natural gas burner
Power burner design
Forced draft combustion
Modulating control capability
Gas train components
Safety shut-off valves
Flame safeguard system
Professional installation

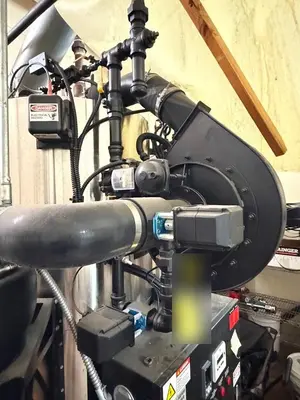

Combustion Air System:

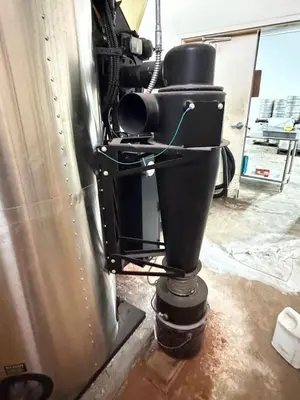

Cyclone blower assembly
Variable frequency drive control
VFD rated 24 amps
Air damper controls
Combustion air ducting
Professional installation
Optimized air delivery

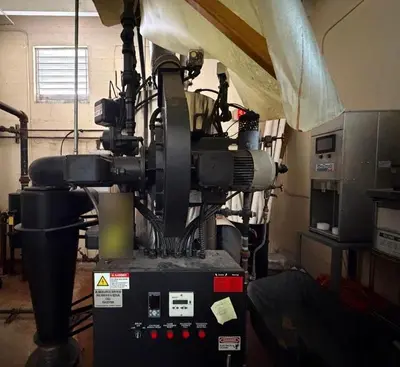

Control Systems:
Fulton integrated control panel
VFD drive control panel
Burner management system
Flame safeguard controls
Operational diagnostics
Temperature controls
Pressure monitoring
Safety interlocks
Warning and alarm indicators
Electrical Components:
240V single-phase power supply
60 Hz frequency
30 FLA boiler rating

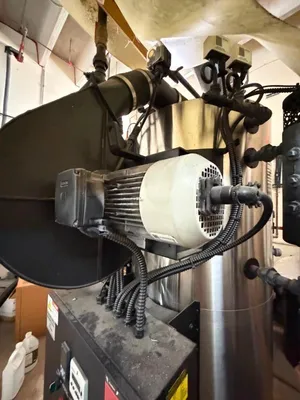

Burner motor: 240V, 50 Hz, 3-Ph, 9.6A
VFD: 240V, 60 Hz, 1-Ph, 24A
Water pump: 120V, 60 Hz, 1-Ph, 24A
All wiring and connections
Disconnect provisions
Circuit protection
Professional installation
Safety & Instrumentation:
Low water cutoff protection
Safety relief valve
Pressure gauge
Temperature sensors
Water level controls
Gas pressure switches
Flame supervision
Emergency shutdown capability

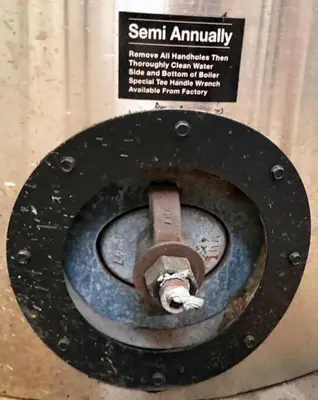

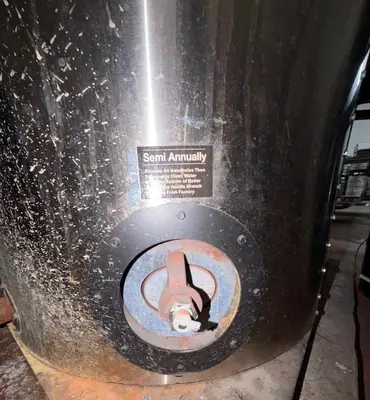

Semi-annual handhole inspection label
Water System:
Feedwater pump (120V, 24A)
Water level controls
Feedwater valves
Piping connections
Blowdown valve
Drain connections
Level indication
Low water protection

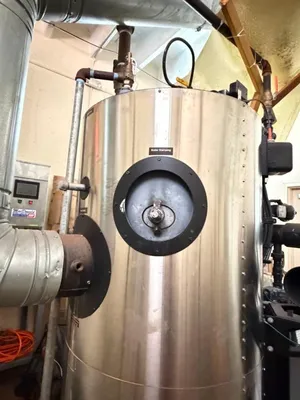

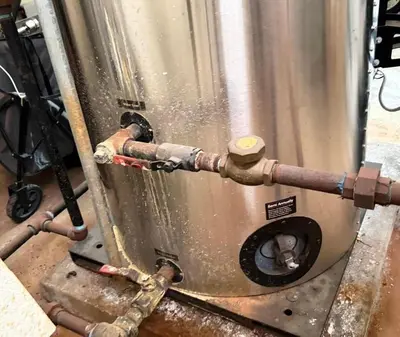

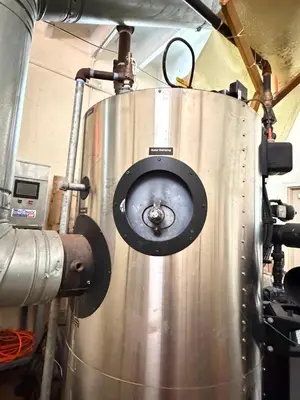

Handhole access ports
Gas System:
Gas pressure regulator
Manual gas valve
Safety shut-off valves
Gas pressure switches
Inlet connection
Manifold pressure monitoring
Safety interlocks
Professional gas train
SPECIFICATIONS SUMMARY
Boiler:
Manufacturer: Fulton
Location: Pulaski, NY USA 13142
Model: VSRT 30
Serial No: F10110765A
National Board: 752
Year: 2019
Type: Vertical spiral rib tubeless steam boiler
Fuel: Natural Gas
Horsepower: 30 HP
Output: 1,005,000 BTU/HR
Max Input: 1,200,000 BTU at altitude
Steam: 1,035 lbs/hr
Heating Surface: 65 sq. ft.
Max Pressure: 150 PSI
Shell: 0.375" thickness
Head: 1.25" thickness
Origin: USA
Construction: Stainless steel
Gas Supply:
Supply Pressure Min: 3" WC
Supply Pressure Max: 13.8" WC
Manifold Pressure Min: -2.8" WC
Manifold Pressure Max: -3" WC
Fuel Type: Natural Gas
Electrical:
Boiler: 240V, 1-Ph, 60 Hz, 30 FLA
Burner Motor: 240V, 3-Ph, 50 Hz, 9.6A
VFD: 240V, 1-Ph, 60 Hz, 24A
Water Pump: 120V, 1-Ph, 60 Hz, 24A
Certifications:
ETL Certified to UL STD 795
Certified to CSA STD 3.1
National Board Certified (752)
ASME "S" Stamp
Physical:
Configuration: Vertical
Design: Spiral rib tubeless
Mounting: Floor-mounted
Finish: Stainless steel
ADDITIONAL INFORMATION
Condition: Used - 2019 Manufacture, Excellent Condition
Manufacturer: Fulton Steam Solutions, Inc.
Manufacturing Location: Pulaski, NY USA 13142
Product Line: Vertical Spiral Rib Tubeless Boiler
Model: VSRT 30
Serial Number: F10110765A
National Board Number: 752
Year Built: 2019
Fuel Type: Natural Gas
BTU Output: 1,005,000 BTU/HR
Maximum BTU Input at Altitude: 1,200,000
Horsepower: 30 HP
Steam Generation: 1,035 lbs/hr
Heating Surface: 65 square feet
Maximum Allowable Working Pressure: 150 PSI
Shell Thickness: 0.375 inches (3/8")
Head Thickness: 1.25 inches
Gas Supply Pressure: 3" WC minimum to 13.8" WC maximum
Manifold Gas Pressure: -2.8" WC minimum to -3" WC maximum
Electrical Requirements:
Boiler: 240V, 1-Phase, 60 Hz, 30 FLA
Burner Motor: 240V, 3-Phase, 50 Hz, 9.6 Amps
VFD: 240V, 1-Phase, 60 Hz, 24 Amps
Water Pump Motor: 120V, 1-Phase, 60 Hz, 24 Amps
Certifications:
ETL Certified to UL STD 795
Certified to CSA STD 3.1
ASME "S" Stamp on Shell
National Board Certification (752)
Intertek Listing (4001483)
Control System: Fulton integrated control panel with VFD drive
Combustion Air System: Cyclone blower with VFD control
Safety Features:
Low water cutoff protection
Safety relief valve
Flame supervision system
Multiple safety interlocks
Emergency shutdown capability
Pressure relief protection
Gas pressure monitoring
Professional safety controls
Semi-annual handhole inspection requirements

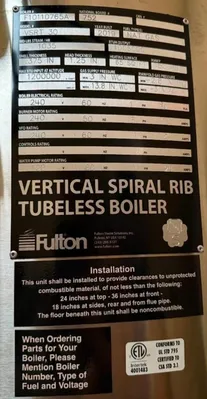

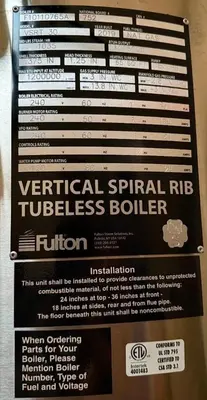

Installation Requirements:
24 inches clearance at top
36 inches clearance at front
18 inches at sides, rear and from flue pipe
Floor beneath unit shall be noncombustible
Professional installation required
Foundation specifications per manufacturer
Adequate clearances per code requirements
Professional rigging and placement
Electrical hookup by licensed electrician
Gas connection by licensed professional
Professional commissioning recommended
Features:
Fulton Vertical Spiral Rib Tubeless Boiler design
2019 year of manufacture - nearly new condition
30 horsepower rating
1,005,000 BTU/HR output capacity
1,200,000 BTU maximum input at altitude
1,035 lbs/hr steam generation
65 square feet heating surface
150 PSI maximum working pressure
Natural gas-fired for efficient operation
Vertical spiral rib tubeless design
No tube bundle to clean or replace
Spiral rib configuration maximizes heat transfer
Tubeless construction eliminates tube maintenance
Compact vertical footprint saves floor space
Heavy-duty 0.375" shell thickness
Robust 1.25" head thickness
Stainless steel construction for corrosion resistance
National Board certified (752)
ASME construction and certification
ETL certified to UL STD 795 and CSA STD 3.1
Cyclone blower for combustion air
Variable frequency drive (VFD) control
VFD rated 24 amps
Fulton integrated control system
Real-time monitoring and diagnostics
Low water cutoff protection
Safety relief valve protection
Flame safeguard system
All safety trim and controls installed
Complete electrical package
Burner motor: 240V, 3-Phase, 9.6A
Water pump: 120V, 1-Phase, 24A
Professional-grade components throughout
Complete packaged system
Semi-annual handhole inspection access
Special tee handle wrench available from factory
Ready for natural gas connection and startup
2019 manufacture - excellent condition
ETL certified to UL and CSA standards
Professional-grade commercial/industrial construction
Pulaski, New York USA manufacturing quality
* Manufacturer: Fulton
* Model Number: VSRT 30
* Serial Number: F10110765A
* National Board No: 752
* Year Built: 2019
* Type: Natural gas-fired
* Horsepower: 30 HP
