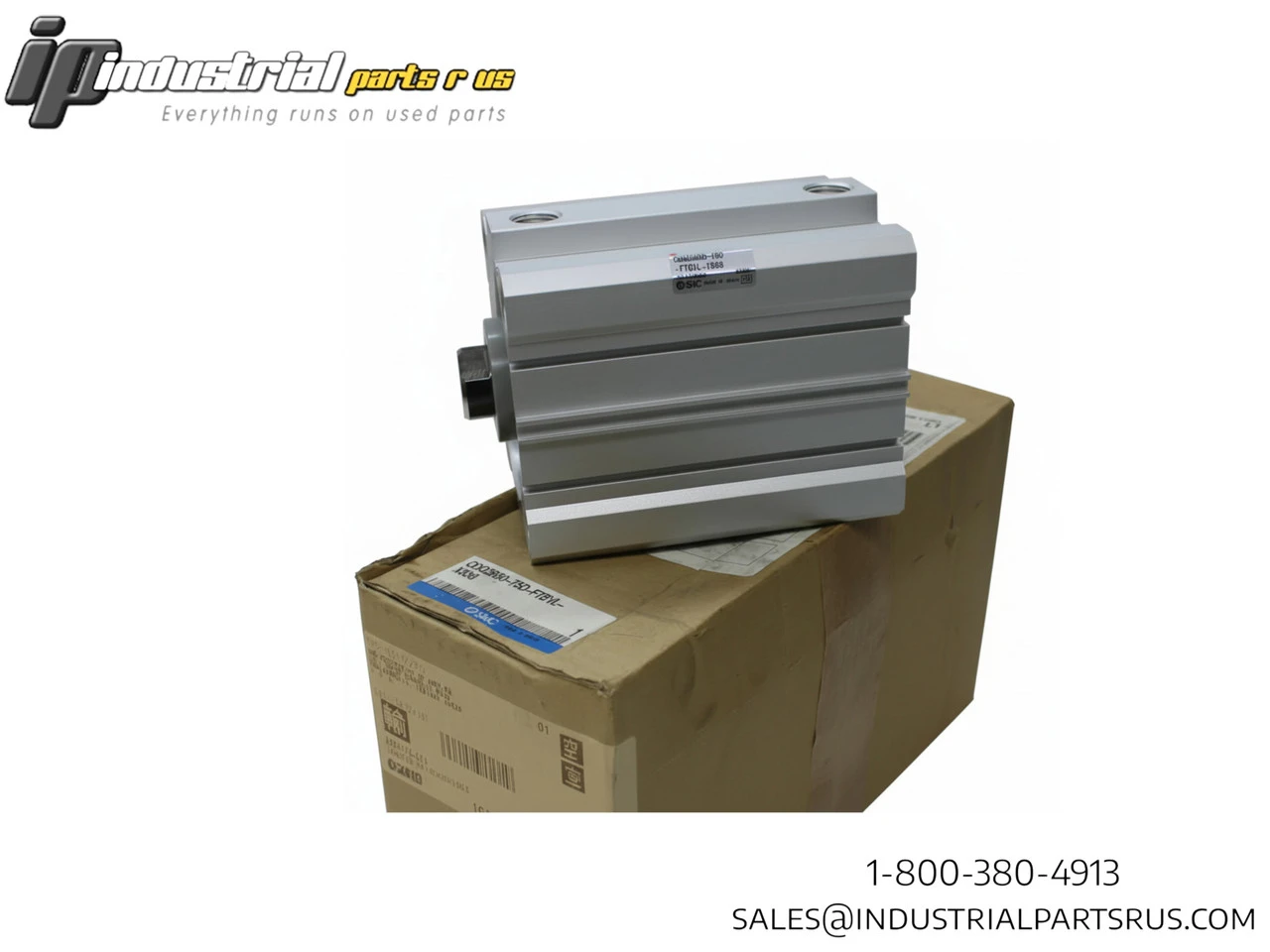

NEW SMC CDQ2B80-75D-F7BVL-X838

SMC CDQ2B80-75D-F7BVL-X838 is a CQ2 series compact pneumatic cylinder designed for space-saving industrial automation applications. This double-acting, single rod cylinder features an 80mm bore diameter and 75mm stroke length with built-in magnet and auto switch mounting grooves on four surfaces. The unit comes equipped with two solid-state auto switches with grommet lead wire termination, indicator lights, and 2-wire configuration for position detection.

Bore Size: 80mm
Stroke Length: 75mm
Action Type: Double Acting, Single Rod
Maximum Operating Pressure: 1.0 MPa (145 PSI)
Proof Pressure: 1.5 MPa (218 PSI)
Minimum Operating Pressure: 0.05 MPa
Port Thread Type: Rc/M Thread
Mounting Style: Through-hole (Standard)
Built-in Magnet: Yes
Auto Switch Type: Solid State with Indicator Light
Number of Auto Switches: 2 pieces
Auto Switch Configuration: 2-wire, Perpendicular, Grommet
Lead Wire Length: 3m
Operating Voltage: DC24V (DC10-28V)
Auto Switch Mounting: 4 Surfaces (32-100mm bore sizes)
Operating Temperature: -10°C to +60°C (with auto switch)
Lubrication: Not Required (Non-lube)
Manufacturer: SMC Corporation

SKU: IP16220
UPC: 721814247978
Condition: New
Availability: In Stock
Weight: 4.00 LBS
Width: 10.00
(in)
Height: 5.00
(in)
Depth: 15.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814247978
Country/Region of Manufacture: Japan
Max. Mpa: 1.0MPa
Max. PSI: 145PSI
Max. Operating Pressure: 1.0 MPa (145PSI)
Useraction: Double Acting
Manufacturer: SMC
Bore: 80mm
Max. Pressure: 1.0 MPa (145PSI)
Part Number: CDQ2B80-75D-F7BVL-X838
Shelf: B-12
Stroke: 75mm
Bore Diameter: 80mm
Model: CDQ2B80-75D-F7BVL-X838
MPN: CDQ2B80-75D-F7BVL-X838
