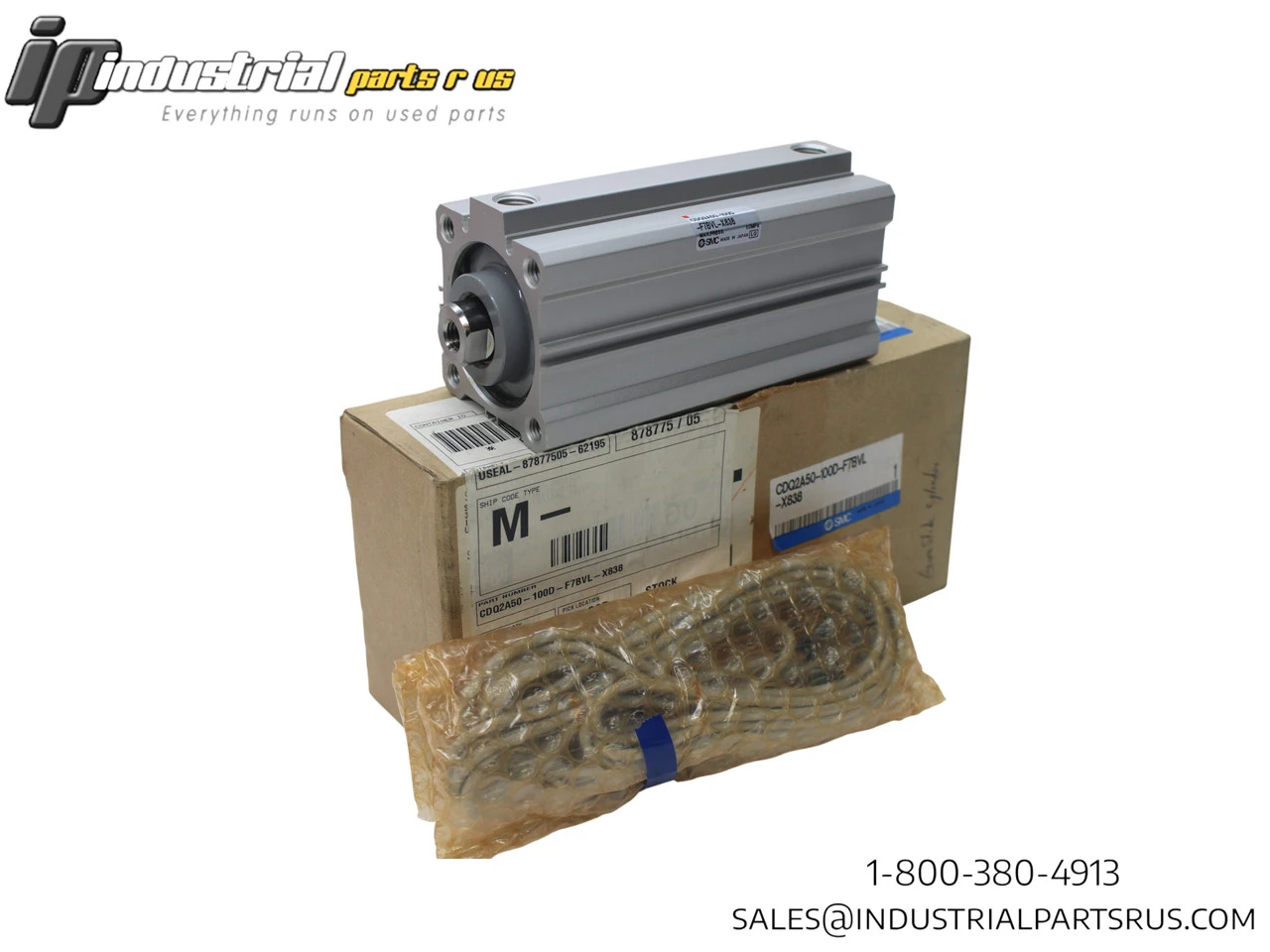

SMC CDQ2A50-100D-F7BVL-X838 Compact Pneumatic Cylinder
Overview
Description
SMC CDQ2A50-100D-F7BVL-X838 is a space-saving compact pneumatic cylinder from the CQ2 series, designed for efficient operation in industrial automation applications. This double acting, single rod cylinder features a 50mm bore diameter and 100mm stroke length with built-in magnet for position sensing. The unit includes F7BVL solid state auto switches with indicator lights mounted on the cylinder body, operating at 24V DC with maximum pressure rating of 1.0 MPa.
Bore Size: 50mm
Stroke Length: 100mm
Type: Double Acting Single Rod
Maximum Operating Pressure: 1.0 MPa (145 PSI)
Built-in Magnet: Yes
Auto Switch: F7BVL Solid State with Indicator Light
Switch Type: 2-wire, Perpendicular Lead Wire
Mounting: Four threaded mounting holes
Body Option: With Rubber Bumper
Series: CQ2/CDQ2 Compact Cylinder
Specifications
| Weight | 3.00 LBS | 3.00 LBS |
|---|
SKU: IP16214
UPC: 721814247961
Condition: New
Availability: In Stock, Pneumatic Cylinder, Compact Cylinder, SMC, Double Acting, Automation, CDQ2A Series, Industrial Pneumatics, Air Cylinder, Auto Switch
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 5.00
(in)
Depth: 10.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814247961
Mpa: 1.0MPa
Max. Mpa: 1.0MPa
Max. PSI: 145PSI
Max. Operating Pressure: 1.0MPa (145PSI)
Useraction: Double Acting
Bore: 50mm
Max. Pressure: 1.0MPa (145PSI)
PSI: 145PSI
Shelf: B-7
Stroke: 100mm
Bore Diameter: 50mm
MPN: CDQ2A50-100D-F7BVL-X838
Voltage: DC24V
