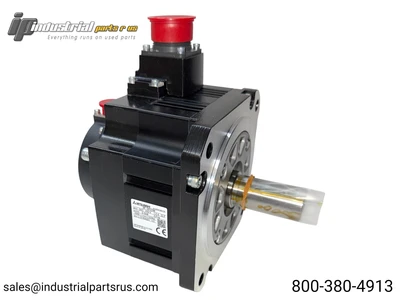

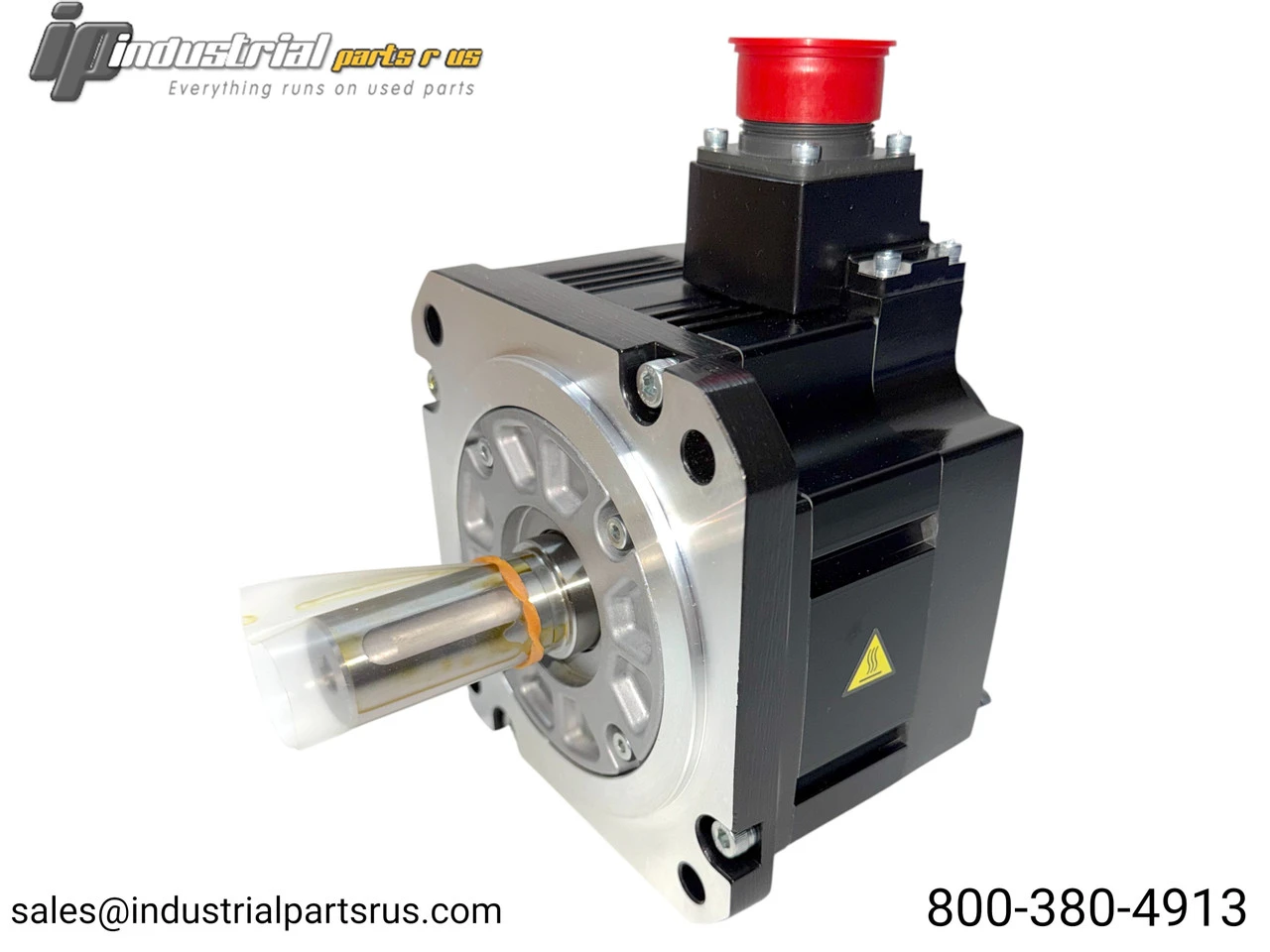

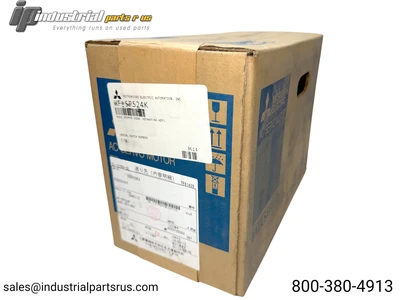

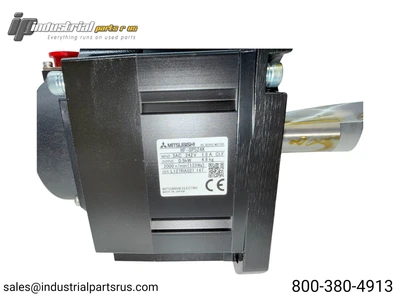

NEW MITSUBISHI HF-SP524K

The Mitsubishi HF-SP524K is a medium-inertia AC servo motor from the MELSERVO J3 series, designed for high-performance industrial automation applications. Featuring a 5kW rated output with 23.9Nm nominal torque and 2000rpm rated speed, this motor delivers precise motion control for material handling systems, robotics, and X-Y tables. Built with IP67 protection and an 18-bit absolute feedback encoder, it ensures reliable operation in demanding industrial environments.
Specifications
Rated Output: 5kW (5000W)
Rated Torque: 23.9Nm nominal
Maximum Torque: 71.6Nm
Rated Speed: 2000rpm
Maximum Speed: 3000rpm
Supply Voltage: 400VAC class
Rated Current: 12A
Maximum Current: 36A
Moment of Inertia: 0.0097 kg.m² (97 kg.cm²)
Encoder: 18-bit absolute feedback encoder (262,144 pulses/rev)
Mounting: 176x176mm flange mounting
Protection Rating: IP67
Insulation Class: 130 (F)
Cooling Method: Natural cooling
Operating Temperature: 0 to +40°C
Storage Temperature: -15 to +70°C
Humidity: 10-80% RH (non-condensing)
Shaft Type: Keyed shaft
Compatible Amplifier: MR-J3-60A/B/T series
Dimensions: 228.9mm (H) x 176mm (W) x 342.5mm (D)
Product Series: HF-SP (Medium Inertia)

SKU: IP16225
UPC: 721814247909
Condition: New
Availability: In Stock
Weight: 20.00 LBS
Width: 12.00
(in)
Height: 12.00
(in)
Depth: 12.00
(in)
Shipping: Calculated at Checkout
GTIN: 721814247909
Country/Region of Manufacture: Japan
Manufacturer: Mitsubishi
Shelf: K-27
Model: HF-SP524K
MPN: HF-SP524K
Type: AC Servo Motor
