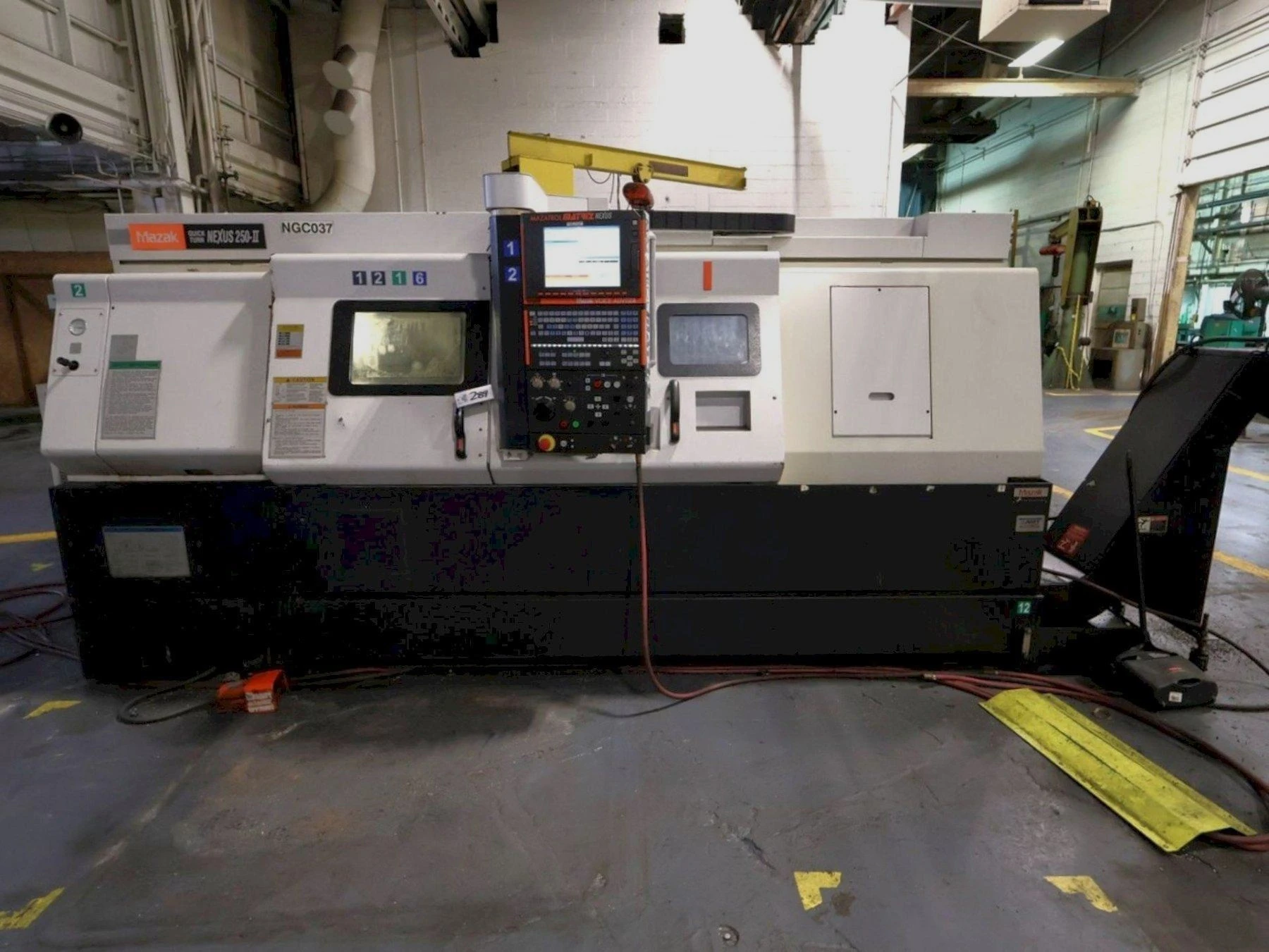

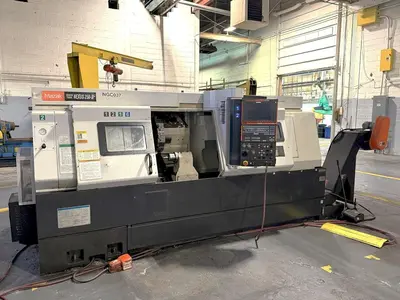

USED 2009 MAZAK NEXUS QTN 250-II/1500
Overview
Description
LONG BED Version with 60" Centers

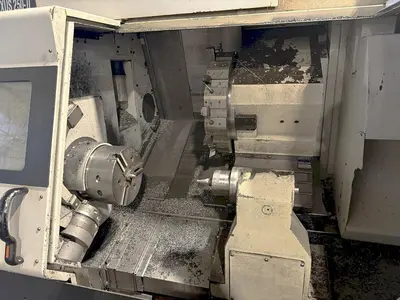

10" 3 Jaw Hydraulic Chuck
Chip Conveyor
Automatic Tool Eye
Programmable Tailstock
Inch/Metric Conversion
IC Memory Card Interface
USB Port Interface (2 slots)
3.5" Floppy Disk Interface
RS232 Port Interface
Hydraulic Pressure Interlock
Chuck Open/Close Confirmation
Multi-Tap Transformer

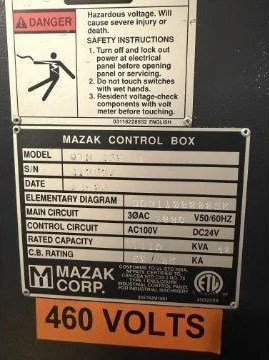

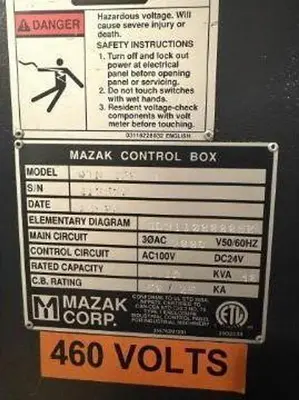

Currently Wired 460V Electrics / Rated 111 Amps with 40 Kva Capacity
Coolant System with Tank & Pump
All Available Manuals
All Available Tooling

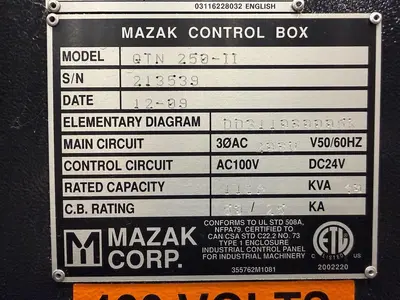

**Manufactured New in December of 2009**

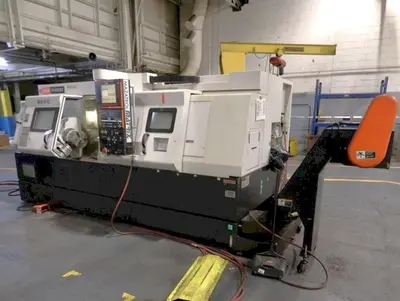

The 2009 Mazak Nexus QTN 250-II/1500 CNC Lathe is a versatile machine designed for precision and efficiency in metalworking. Equipped with a Mazatrol Matrix Nexus control system, this lathe offers a 10" 3-jaw hydraulic chuck and a maximum swing of 24.04 inches. It excels in handling complex tasks with its maximum cutting diameter of 13.78 inches and a substantial maximum machining length of 60 inches, making it especially useful for longer workpieces.
The lathe features an 8.75-inch X-axis travel and an expansive 60.25-inch Z-axis travel. A standout characteristic is its spindle capability, featuring an A2-8" nose with a bore of 3.46 inches and a bar capacity of 3 inches, delivering up to 4,000 RPM powered by a robust 35 HP spindle motor. This machine's 12-position turret and rapid traverse rates of 1181 IPM in the X-axis and 1299 IPM in the Z-axis boost productivity considerably.
Furthermore, the lathe includes a tailstock, chip conveyor, and toolsetter, enhancing its practicality. Weighing 14,000 lbs., this machine offers formidable stability and precision during operations, making it ideal for businesses requiring dependable CNC lathes with a rare 60-inch center capability.
Specifications

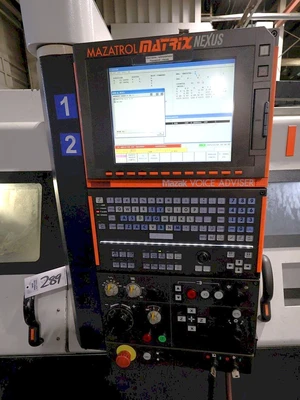

Control: Mazatrol Matrix Nexus

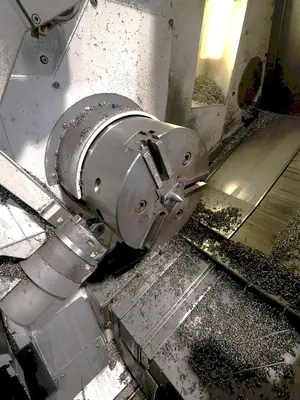

Chuck Size: 10" 3-Jaw Hydraulic
Maximum Swing: 24.04"
Maximum Cutting Diameter: 13.78"
Maximum Machining Length: 60"
X-Axis Travel: 8.75"
Z-Axis Travel: 60.25"
Spindle Nose / Bore / Bar Capacity: A2-8" / 3.46" / 3.0"
Spindle Speeds: 4,000 RPM
Spindle Motor: 35 HP

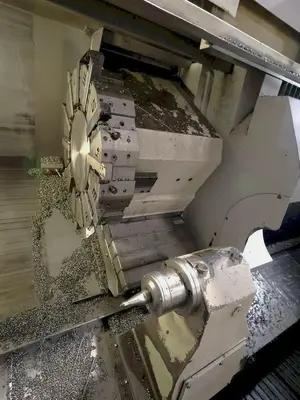

Number of Turret Positions: 12 Position Drum
Rapid Traverse Rates X/Z: 1181 / 1299 IPM
Tailstock Body Travel / Center: 59.625" / MT#4
Machine Dimensions LxWxH: Not Available
Machine Weight: 14,000 lbs.
