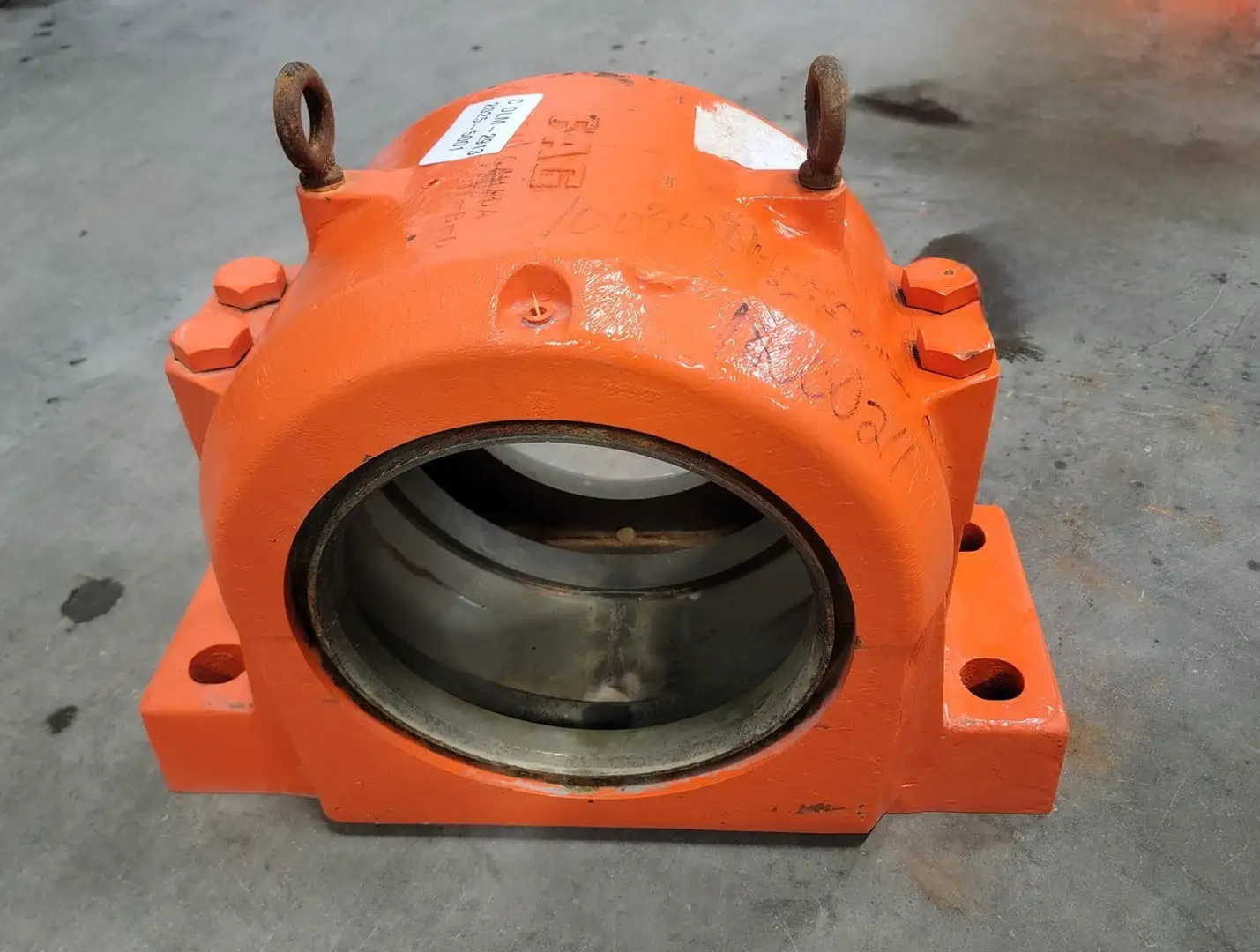

NEW FAG SDD3048.TA.OP

Type: Pillow Block
Height: 434
Outside Length: 640
Base to Bore Centerline: 220
Distance Between Bolts: 540
Housing Compatible Bore Diameter: 360
Compatible Bearing Series/Part #: 23048 series
Overview:
Compatibility: Designed for use with large spherical roller bearings, typically those in the 3048 size series.
Material: Generally constructed from robust ductile cast iron (spheroidal graphite cast iron), indicated by the high-load nature of the SDD/SNS series.
Applications: These housings are engineered for harsh environments requiring high stability and ease of maintenance:
Conveyor Systems: Supporting large-scale industrial belts.
Mining & Heavy Machinery: Used in crushers, grinders, and large fans.
Steel & Paper Mills: Handling massive radial and axial loads.
