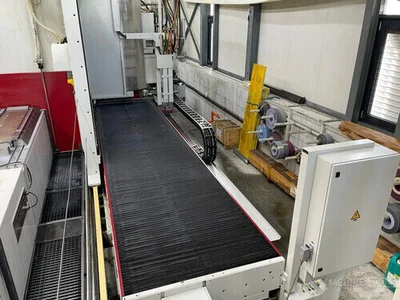

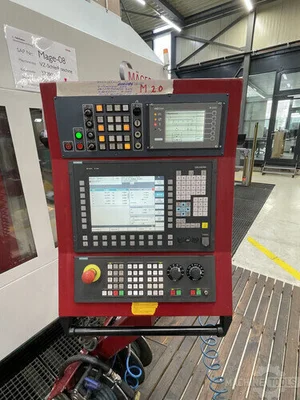

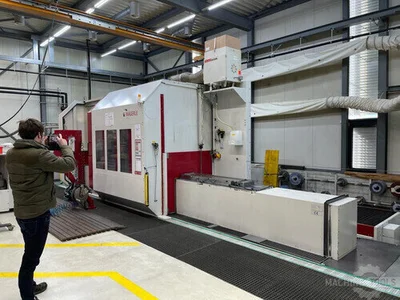

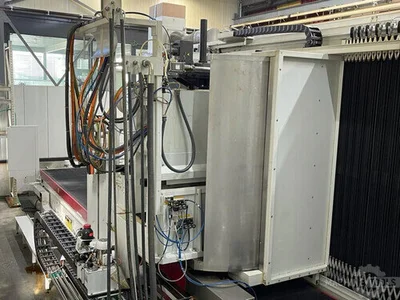

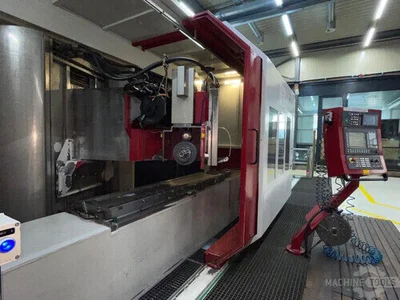

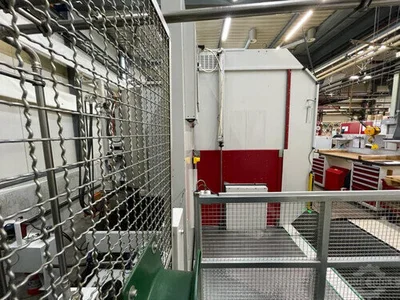

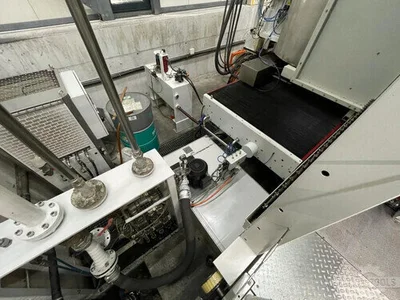

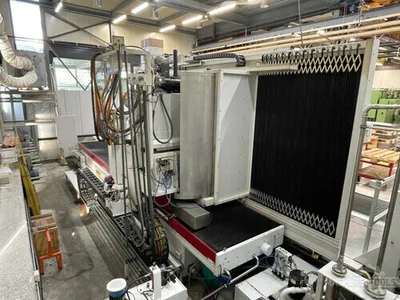

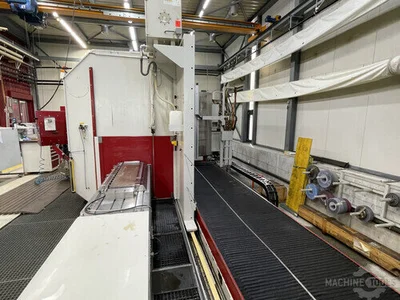

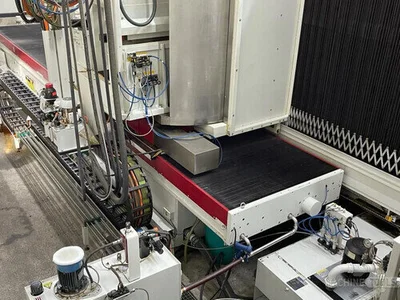

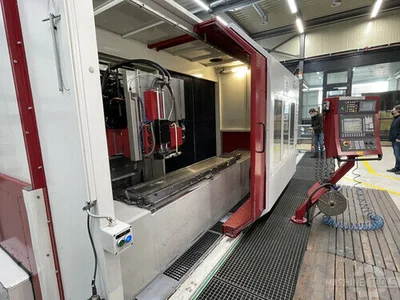

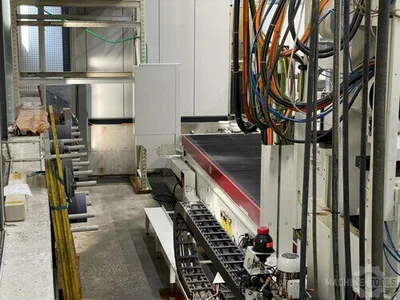

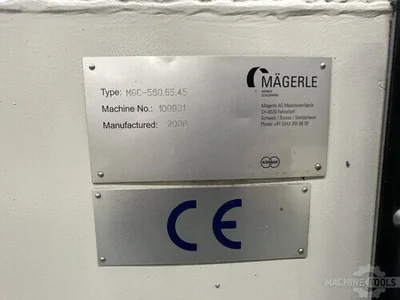

USED 2008 MAEGERLE MGC-L 560

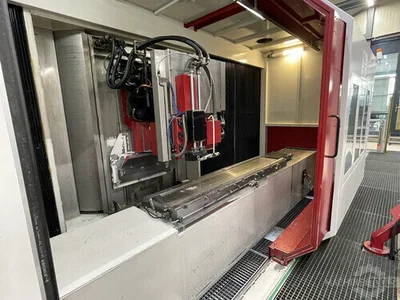

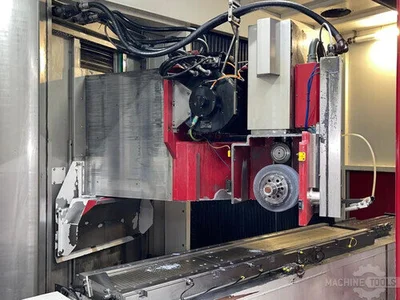

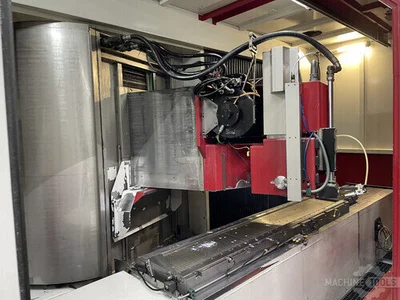

Automatic grinding head

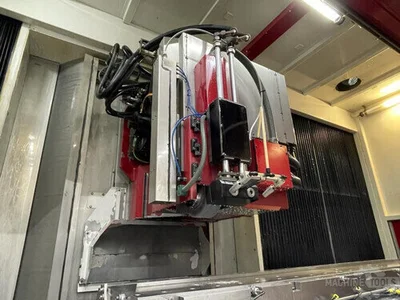

B-Axis Grinding head ca 20 gr swivel

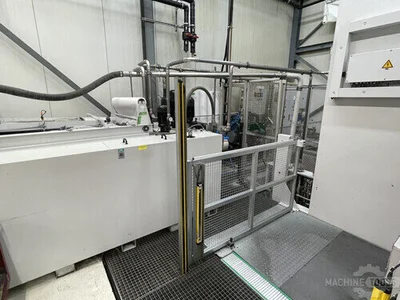

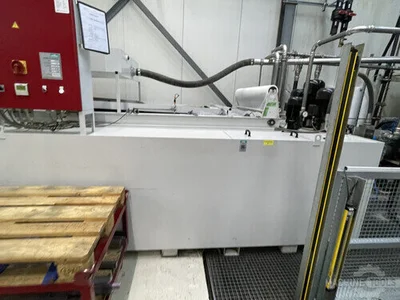

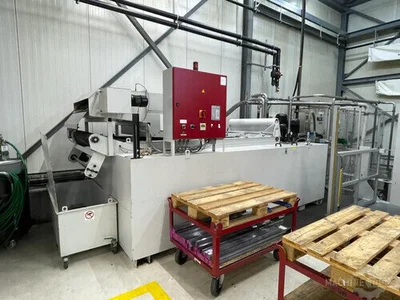

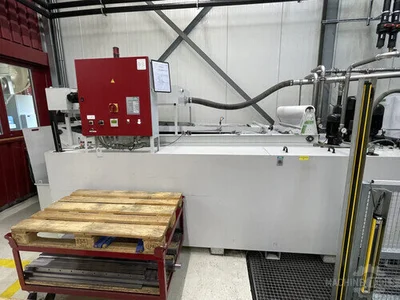

ARO - KKS coolant tank 8000 L ( size 4400 x 1900 x 2200)
Pendel opperation ( double table)
Dresser automatic
Table dresser

X - Travel: 5500 mm
Y - Travel: 650 mm
Z - Travel: 750 mm
Table Length: 5500 mm
Table Width: 750 mm
Feed rate X-Axis: 20000 mm/min.
Feed rate Z-Axis: 20000 mm/min.
Grinding stone dimensions: 600 x 300 mm
Power: 115 kW
Speeds: 8000 Rpm
Cooling system: Yes
Feed rate Y-Axis: 20000 mm/min.
Length: 10700 mm
Width: 4700 mm
Height: 3800 mm
Weight: 42000 kg
