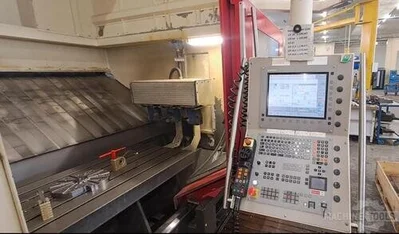

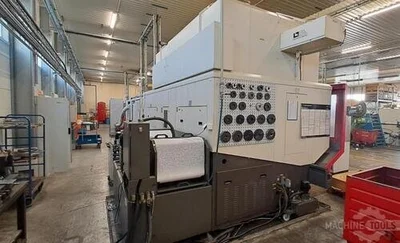

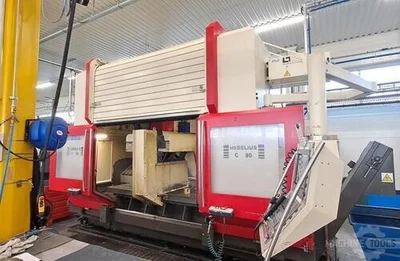

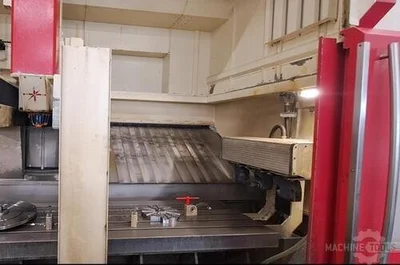

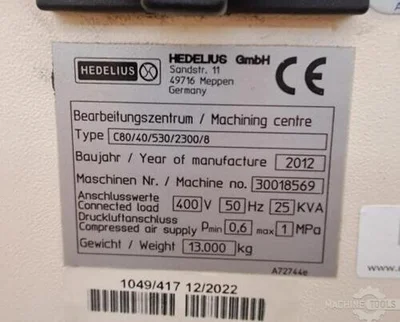

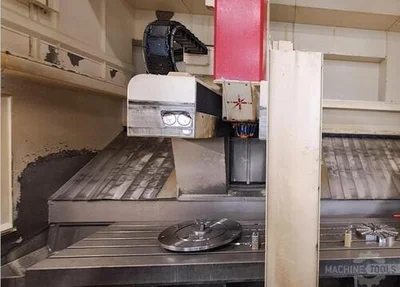

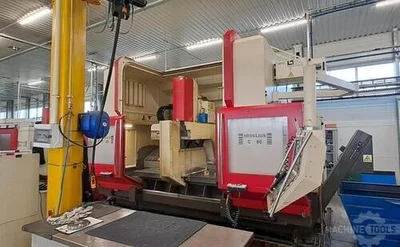

USED 2012 HEDELIUS C80/2300/8
Overview
Full enclosure with vacuum extraction
Roller shutter door for crane loading
Pick-Up station for 3 angled milling head
Face machining possible to generously sized areas
Distance spil to table 140 - 740 mm
Pendel screen for splitted manufacturing
Coolant tank filtration 350 Liter
HR410 Handwheel HeidenHain
Double LTA Oil Mist
Flexible, high-precision machining of large and complex parts, with reliable German build quality.
Specs
X - Travel: 2340 mm
Y - Travel: 800 mm
Z - Travel: 600 mm
Table Length: 2900 mm
Table Width: 750 mm
Table load: 2800
Feed rate X-Axis: 40000 mm/min.
Feed rate Y-Axis: 40000 mm/min.
Feed rate Z-Axis: 40000 mm/min.
Spindle Taper: 40 ISO/Bt/Mk
Power on spindle: 27 kW
Speeds / ranges: 8000 Rpm
ATC / revolver: 40
Coolant through spindle / Bar: 20
Number of controlled axis: 3
Chip conveyor: Yes
Coolantsystem: Yes
Length: 6200 mm
Width: 3500 mm
Height: 3600 mm
Weight: 13000 kg
