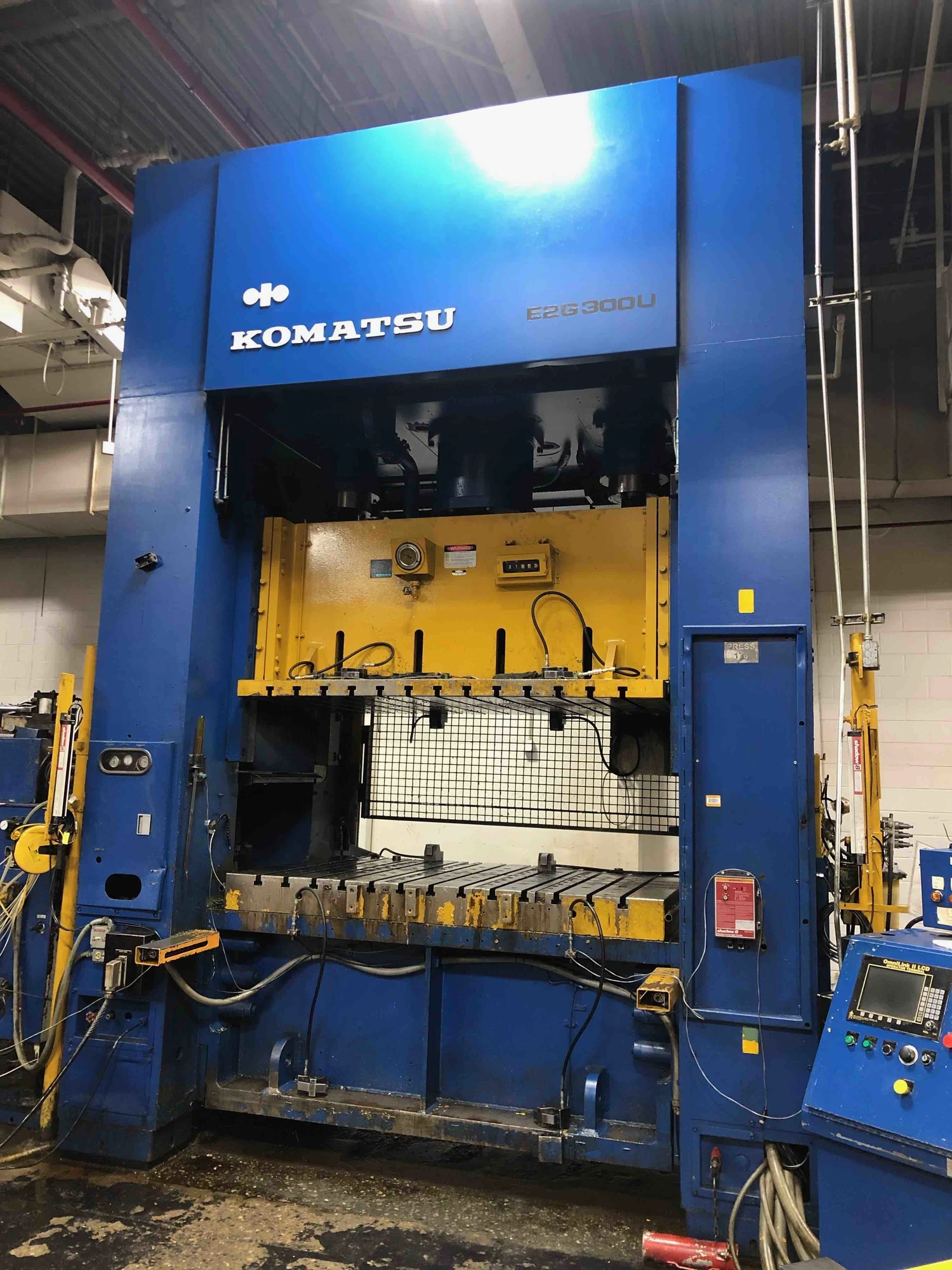

USED 1988 KOMATSU 300 TON SS
Overview
Description
Power up your production with this used 1988 KOMATSU 330-ton straight side press, Stock# 13976J. Equipped with state-of-the-art controls, a robust lube system, and safety features like the Shadow 8 Wintriss light curtains. Specs: 330T, 14.2" stroke, 12-40 SPM.
Specifications
| Tonnage | 330 T | 299.371 t |
|---|
KOMATSU 300 TON STRAIGHT SIDE PRESS, STOCK# 13976J
PRELIMINARY SPECIFICATIONS
KOMATSU STRAIGHT SIDE PRESS
MODEL: E2G300U
S/N: 10092
YEAR: 1988
300 TON CAPACITY
14.2" STROKE (360 mm)
28.3" DIE HEIGHT (S.D.A.U.) (719 mm)
10.2" SLIDE ADJUSTMENT (260 mm)
86.6" LR X 55.1" FB SLIDE AREA (2200 mm X 1400 mm)
86.6" LR X 55.1" FB BOLSTER AREA (2200 mm X 1400 mm)
12-40 SPM VARIABLE
EQUIPPED WITH
KOMATSU PRESS CONTROL CONSOLE
OMNILINK II PRESS OPERATOR TERMINAL
PRESS CONTROL T-STAND
SHADOW 8 WINTRISS LIGHT CURTAINS
WINDOWS
8" THICKNESS T-SLOTTED BOLSTER
T-SLOTTED SLIDE BOLSTER
LUBE SYSTEM
CAME OUT OF RUNNING SERVICE, WELL MAINTAINED!
AVAILABLE FOR INSPECTION, CALL FOR APPOINTMENT!
Specification Subject To Verification: Subject To Prior Sale & Price Change!
We encourage your personal inspection of this machine, available immediately!
Shipping Terms: As Is Where Is
