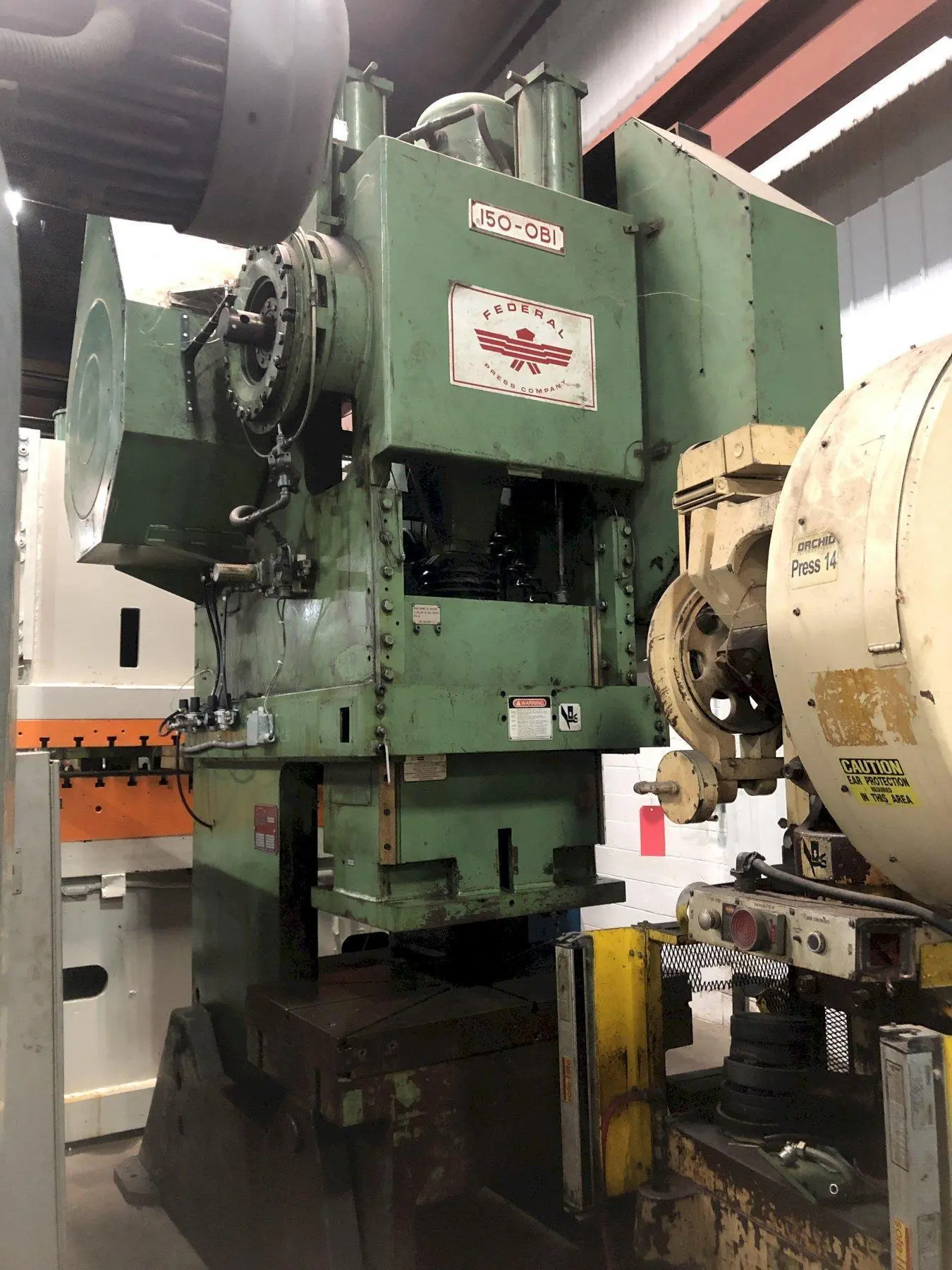

USED FEDERAL 150 TON

Federal 150 Ton Back Geared Press, Model 150 Ton. S/N 150GA-101, remanufactured in 1995. Features include 150-ton capacity, 6" stroke, motorized ram adjustment, new CIECO PPC1100R control, air counterbalanced ram, and steel frame construction.

FEDERAL 150 TON BACK GEARED PRESS, STOCK# 13517J

MODEL# 150
S/N# 150GA-101
REMANUFACTURED 1995
CAPACITY: 150 TON
STROKE: 6"
SHUT HEIGHT TO BED: 22" SDAU
BED AREA: 50" RL X 30" FB
RAM ADJUSTMENT: 8" (MOTORIZED)
SPEED: 35 SPM
RAM AREA: 34" RL X 24" FB
DIST BETWEEN UPRIGHTS 27.5"
FLOOR TO BED 38"
PRESS CONTROLS
APPROX WEIGHT: 40,000 LBS.

EQUIPPED WITH:
NEW CIECO PPC1100R CONTROL
BACK GEARED DESIGN
KNOCK OUT SLOTS
STEEL FRAME CONSTRUCTION
AIR COUNTERBALANCED RAM
OIL LUBRICATION SYSTEM
FLOOR STANDING BASE
PALM BUTTONS
