USED 1976 CINCINNATI CTL Line
Overview

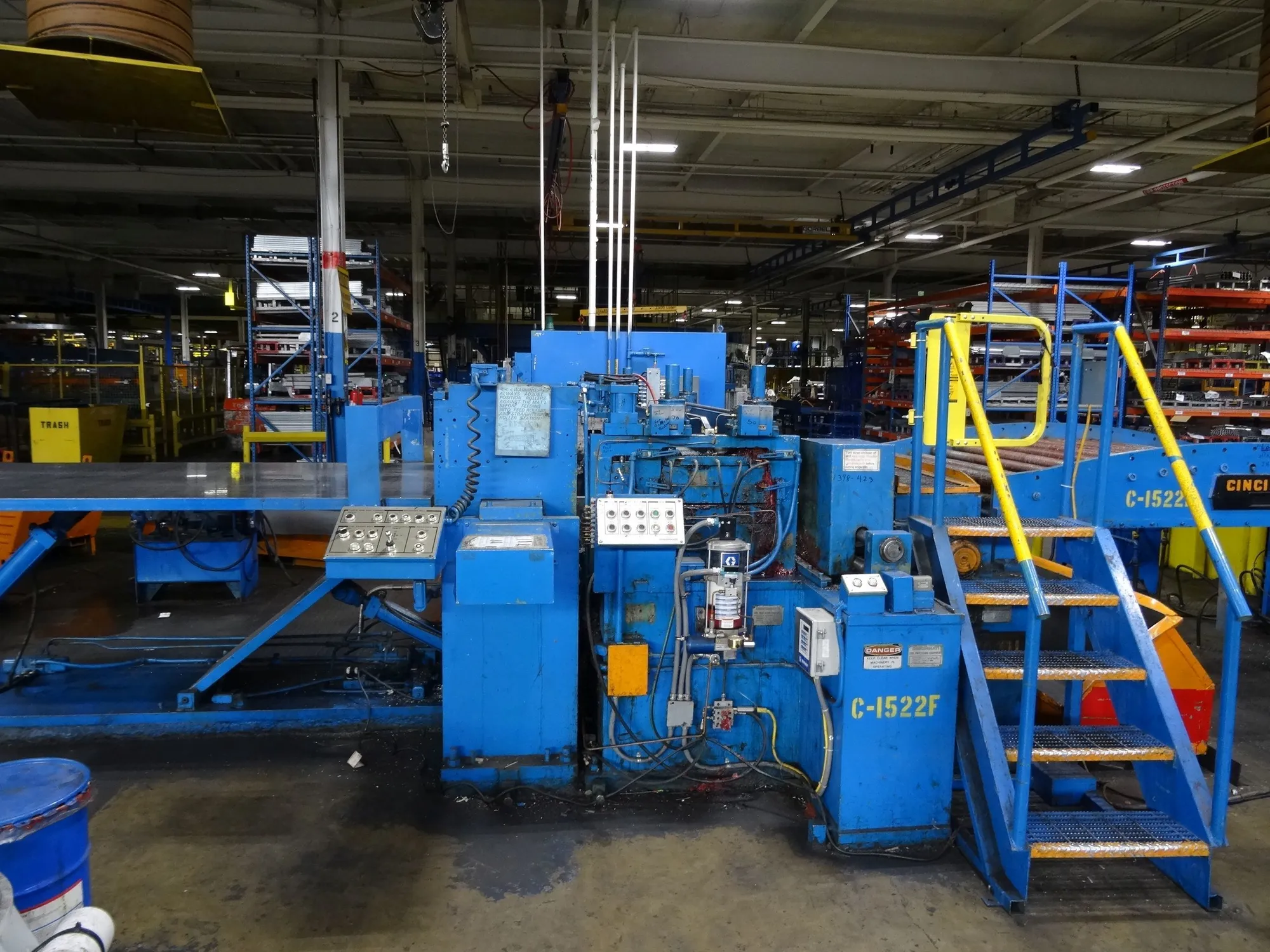

CINCINNATI CTL Line (Stock# 13690T), 20,000 lbs capacity, 60" width, .018"-.075" steel thickness. Year: 1976. Features 3 arm turnstyle, coil car, coil reel, motorized peeler table, 5 roll straightener, edge trimmer, and shear for efficient operations.
Specs
CINCINNATI 20,000LB X 60" X .075" CTL LINE, STOCK# 13690T
New 1976
THICKNESS .018" - .075", 50,000 PSI STEEL
MAX COIL WEIGHT 20,000 LBS
MIN COIL WIDTH 12"
MAX COIL WIDTH 60"
INSIDE DIAMETER OF COIL 16" - 24"
MAX COIL O.D. 60"
LINE DIRECTION LEFT TO RIGHT
LINE SPEED 34 -200 FPM
SHEET LENGTH 6" - 144"
EQUIPPED WITH:
3 ARM TURNSTYLE, MDL#CLC-20, S/N#91071
ENTRY COIL CAR MODEL # BGU-40
FLOOR MOUNTED
HYD LIFT
COIL REEL, MDL#CPR 60 20, S/N#91072
SINGLE MANDREL TYPE
POWERED EXPANSION
MOTORIZED
HOLD DOWN W/POWERED SNUBBER
PEELER/THREADING TABLE, MDL#CPP 60-.075", S/N#91073
5 ROLL STRAIGHTENER W/ BACK UP ROLLS, MDL# R.S. 60, S/N#91075
3" DIA ROLLS
30 HP MOTOR
DOUBLE EDGE TRIMMER W/ SCRAP CHOPPER MDL#D.H.E.T. 60-.075
HUMP TABLE MDL#HT 60-.075, 91079
SHEAR MDL#H.S.S.60-.075, S/N#91080
STACKER/CONVEYOR 6"-144", MDL#M.M.S.O. 60-144, S/N#91081
SIDE EXIT
