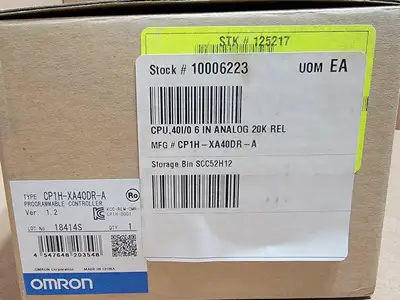

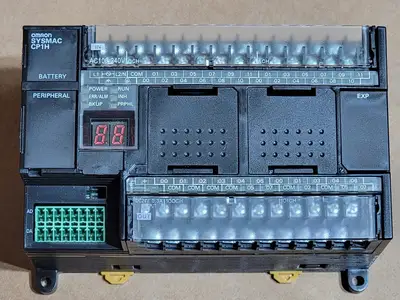

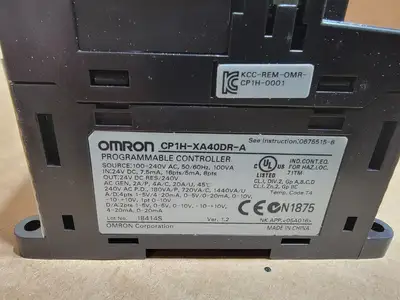

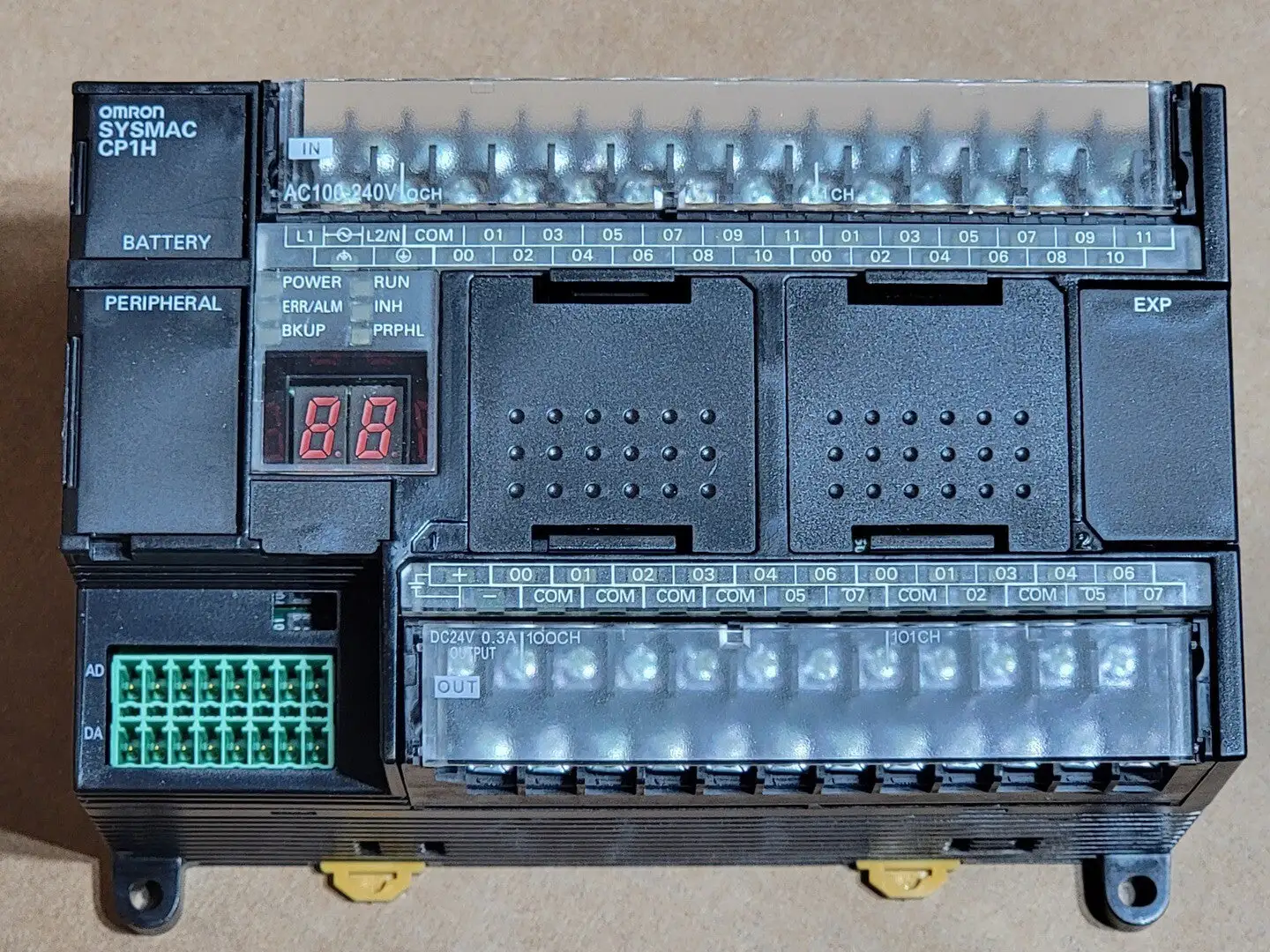

NEW OMRON CP1H-XA40DR-A

Overview:
Supply voltage type: AC
Number of digital inputs: 24
Input type: PNP/NPN
Number of digital outputs: 16
Output type: Relay
Program capacity: 20K steps
Data memory capacity: 32K words
Communication ports: USB
Number of ethernet ports: 0
Communication options: CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, EtherNet/IP, Ethernet TCP/IP, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485
Number of analog inputs: 4
Number of analog outputs: 2
Number of encoder input channels: 4
Max. encoder input frequency: 100 kHz
Max. number of PTP axes: 0
Max. pulse output frequency: 0 kHz
Max. number of PTP axes: 0
Max. number of local I/O points: 320
Max. number of analogue I/O channels: 62
Max. number of expansion units: 7
Built-in auxiliary 24 VDC output: 300 mA
Operating temperature range: 0-55 C
