Unlock powerful performance with the BLISS 250 Ton Gap Frame Press, Model C250. Featuring a 250-ton capacity, 12" stroke, and robust air clutch and brake. Equipped with light curtains and T-stand palm buttons for enhanced control. Stock# 14102J.
| Tonnage | 250 T | 226.796 t |

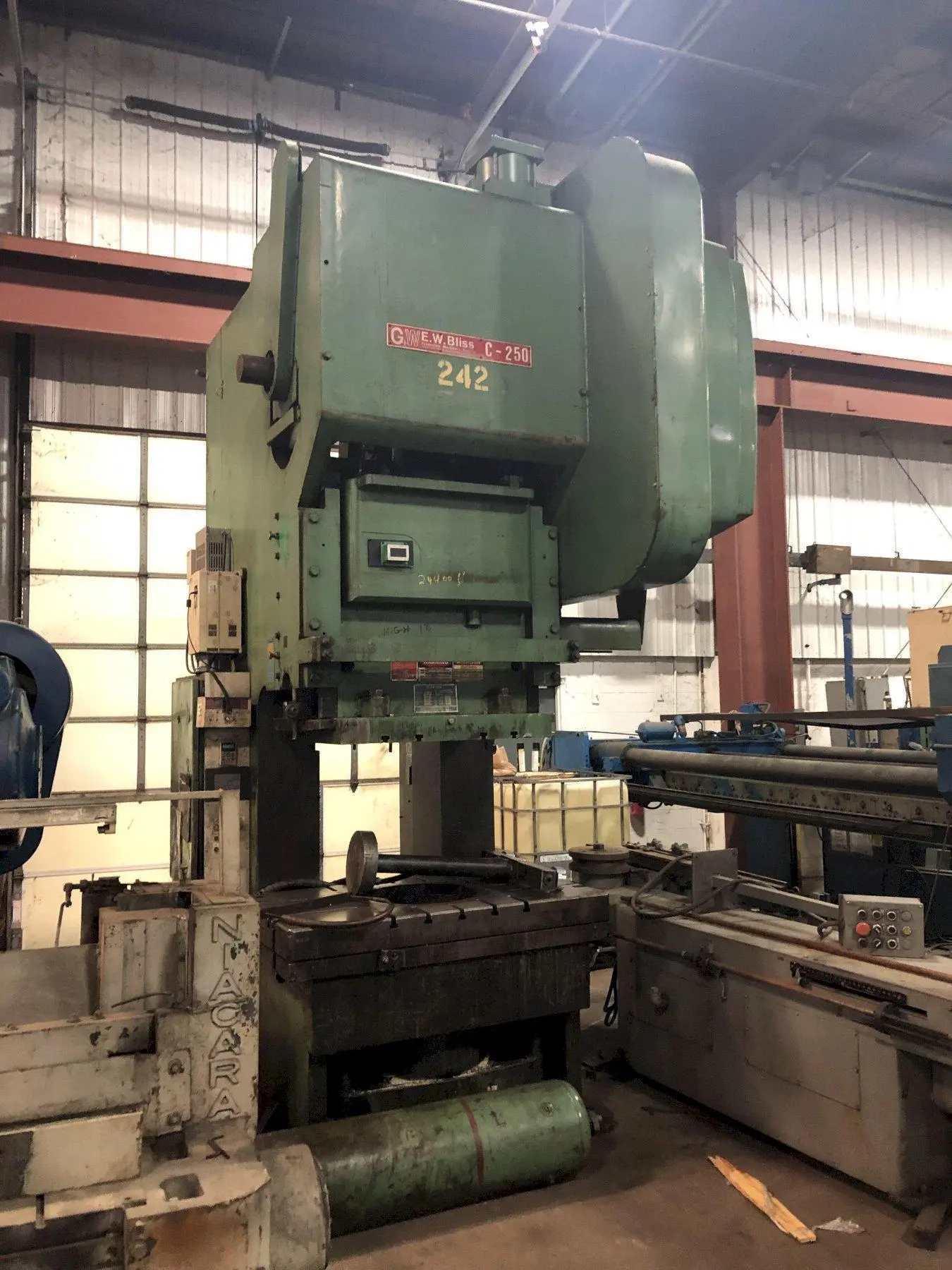

Bliss 250 Ton Gap Frame Press, MODEL C250, STOCK# 14102J
Mdl#-C250
S/N# H67675
250 ton Capacity
12" Stroke
24" Shut Height
4.5" Adjustment
58" LR x 34" FB Bed Area
38" LR x 28" FB Slide Area
35 SPM
Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Air Cushions
Motors and Controls
Light Curtains
T-Stand Palm Buttons
31 3/4" Opening thru back
