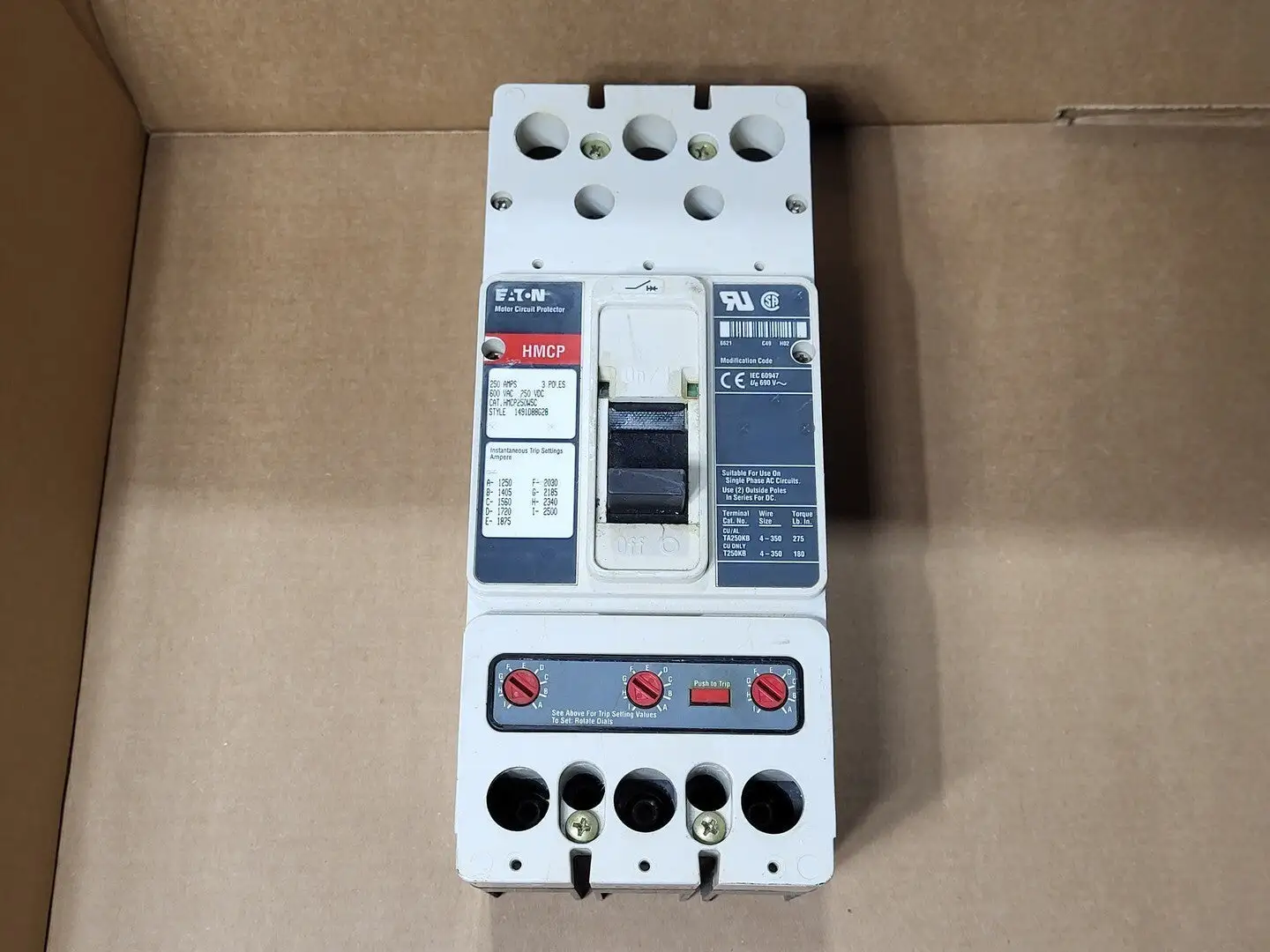

USED EATON HMCP250W5C

Amps: 250 amps
# of Poles: 3
Voltage: 600 volts
Voltage Rating DC: 250 VDC
Interrupt Rating: 250 kA
Trip Type: Instantaneous Magnetic Trip
Instantaneous Trip Range:
A - 1250
B - 1405
C - 1560
D - 1720
E - 1875
F - 2030
G - 2185
H - 2340
I - 2500
Terminal Wire Size: 4 to 350 kcmil
Terminal Torque AL/CU: 275 lb in (TA250KB)
Terminal Torque CU Only: 180 lb in (T250KB)
Application: Motor protection, single phase AC circuits, DC series use with two outside poles
