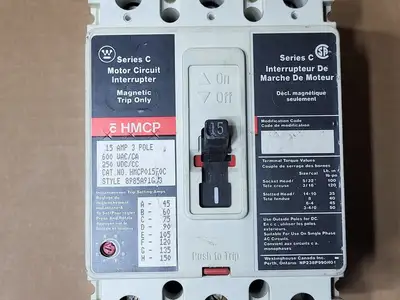

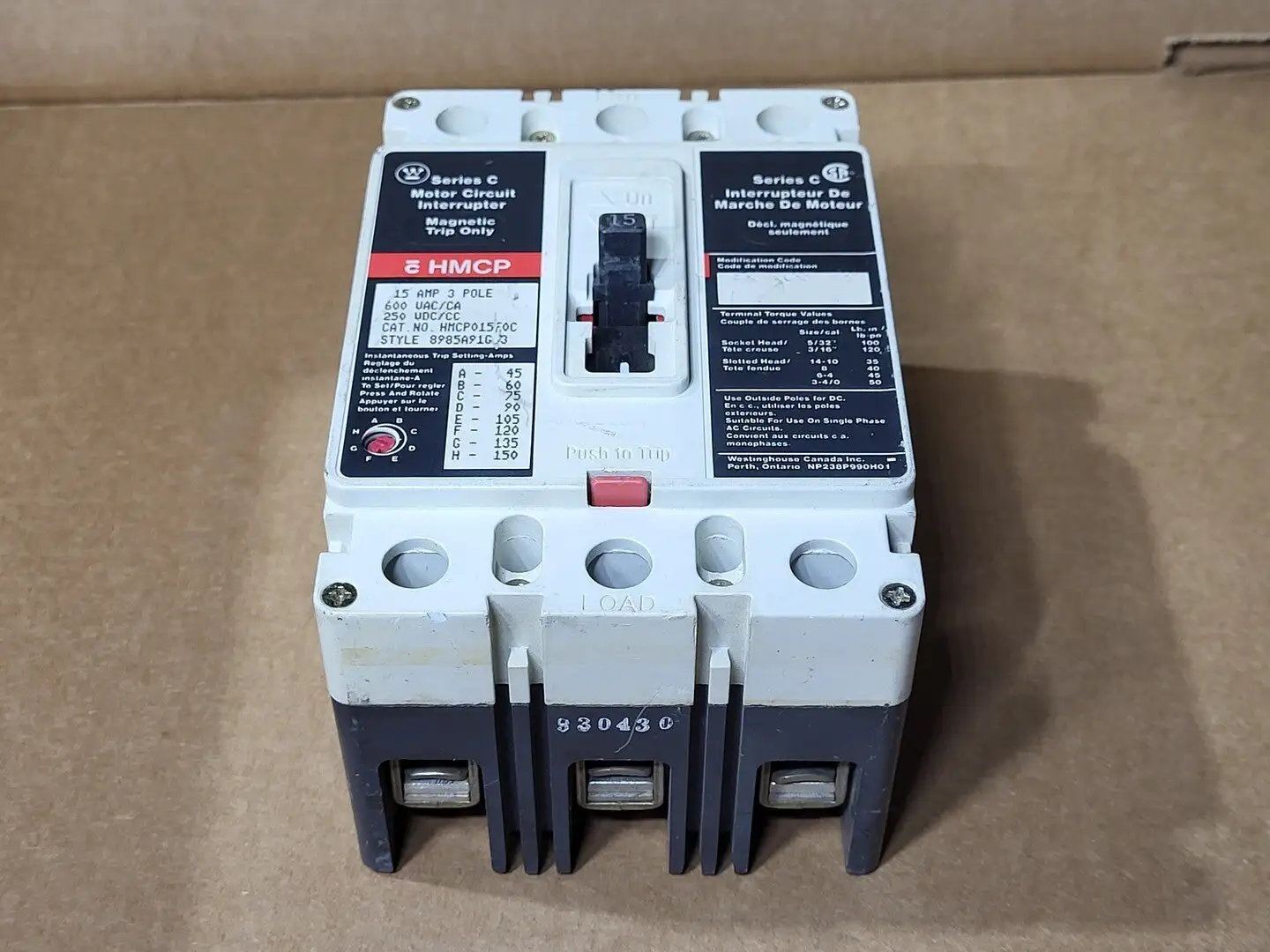

USED WESTINGHOUSE HMCP015E0C

Amps: 15 amps
# of Poles: 3
Voltage: 600 volts
Amperage Rating: 15 Amp
Poles: 3 Pole
Voltage Rating AC: 600 VAC
Voltage Rating DC: 250 VDC
Trip Type: Magnetic Only
Instantaneous Trip Settings: A 45, B 60, C 75, D 90, E 105, F 120, G 135, H 150
Terminal Torque Socket Head: 5/32 inch 100 lb in, 3/16 inch 120 lb in
Terminal Torque Slotted Head: 14 to 10 gauge 35 lb in, 8 gauge 40 lb in, 6 to 4 gauge 45 lb in, 3 to 4/0 gauge 50 lb in
Suitable For: Single phase AC circuits, DC outside poles
