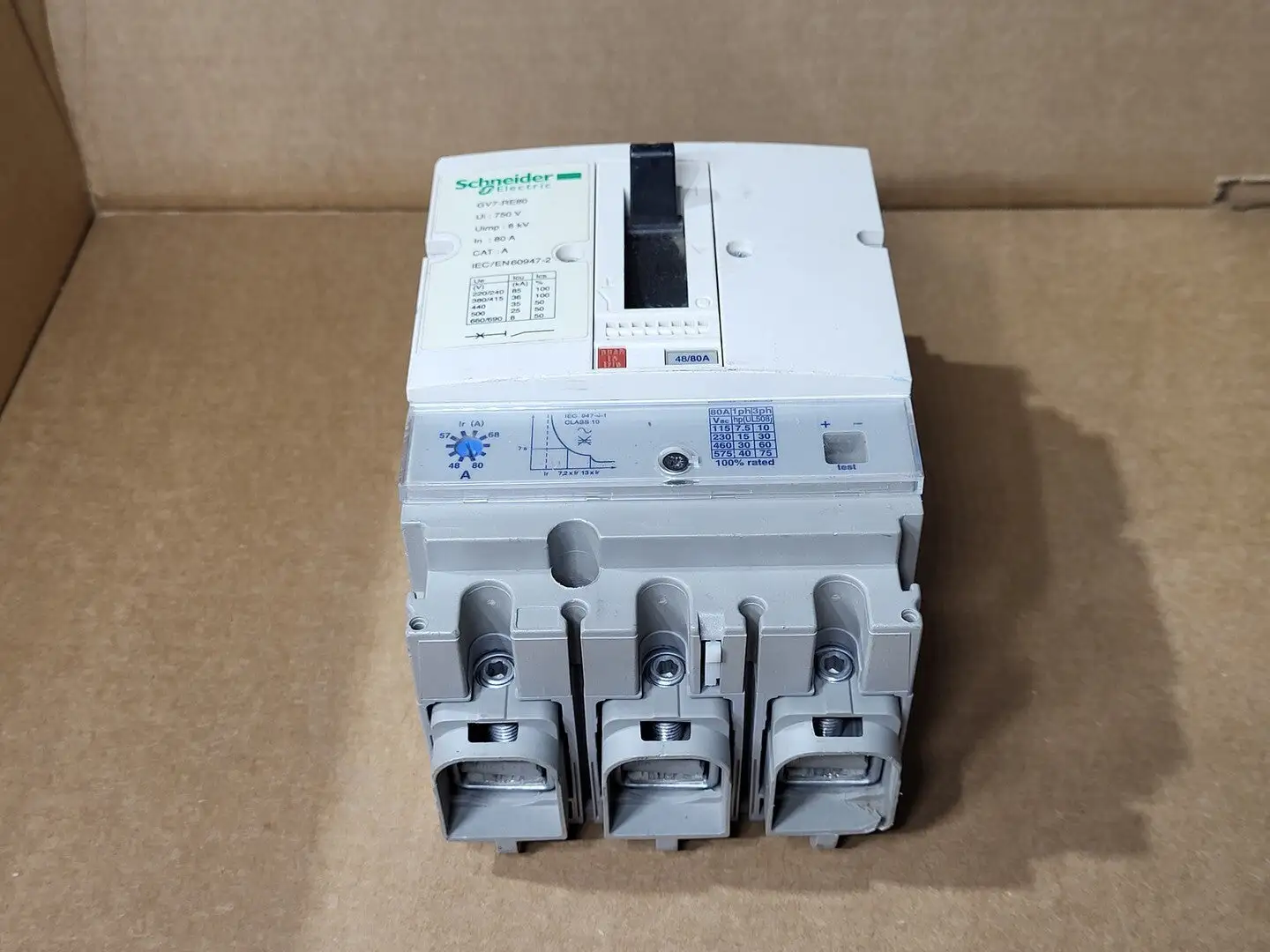

USED SCHNEIDER ELECTRIC GV7-RE80

Amps: 80 amps
# of Poles: 3
Mounting Style: Bolt-On
Voltage: 690 volts
Adjustable Trip Range: 57 to 80 A
Rated Insulation Voltage Ui: 750 V
Rated Impulse Withstand Voltage Uimp: 8 kV
Utilization Category: A
Rated Operational Voltage Ue: 220 to 690 V depending on configuration
Interrupting Capacity Icu:
220 to 240 V: 85 to 100 kA
380 to 415 V: 35 to 65 kA
440 V: 25 to 50 kA
500 V: 25 to 36 kA
660 to 690 V: 16 to 20 kA
Frequency: 50 or 60 Hz
Trip Class: Class 10
Mounting: Panel mount
