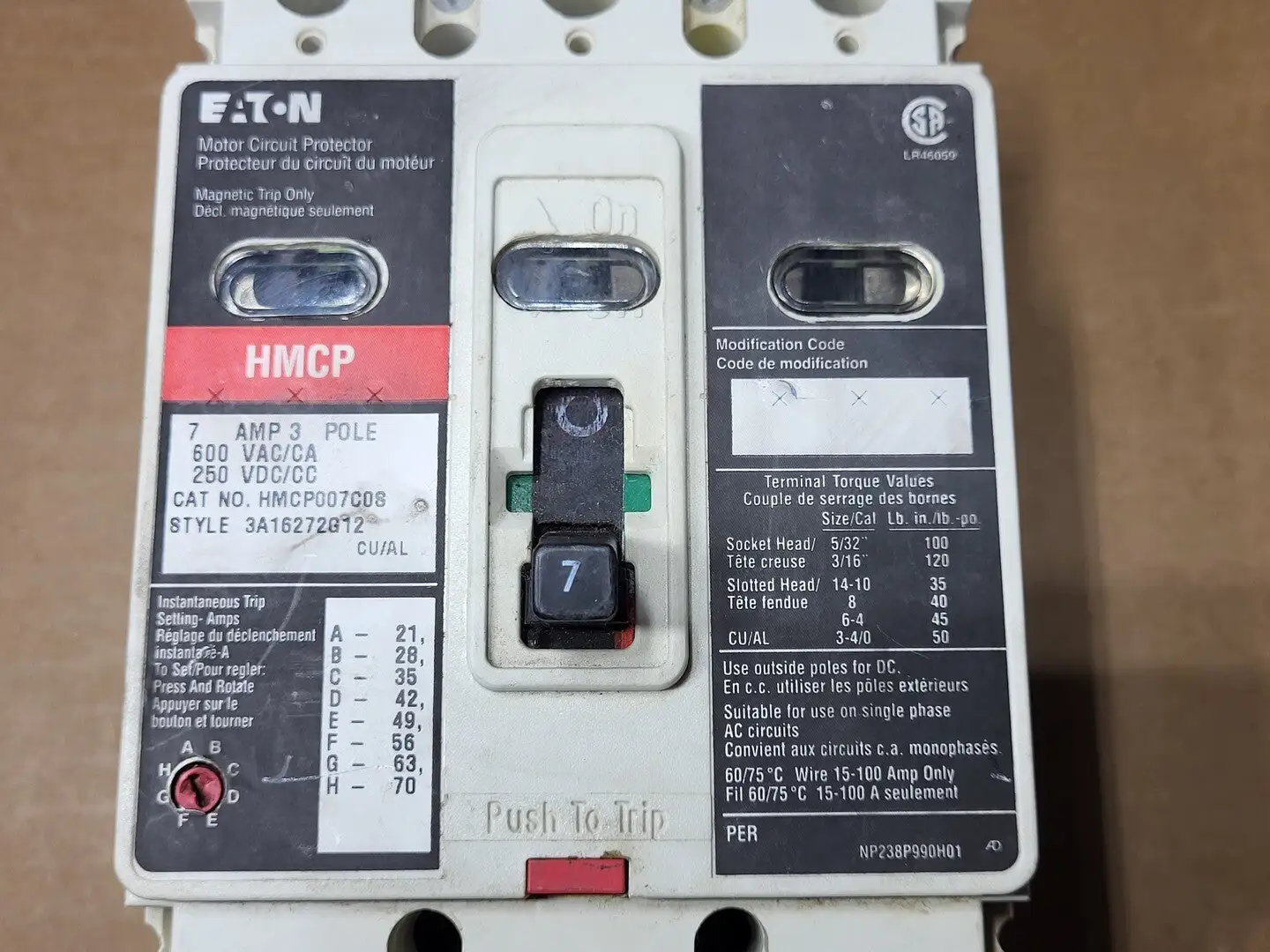

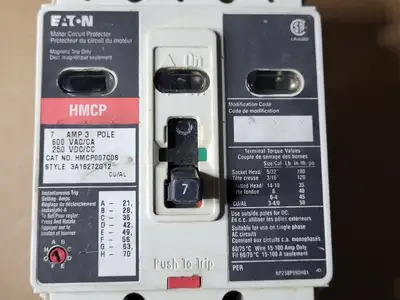

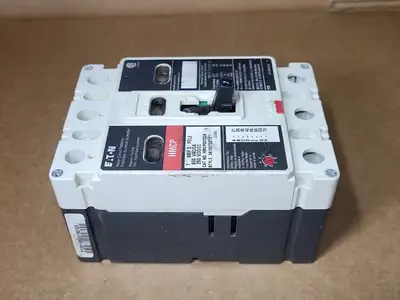

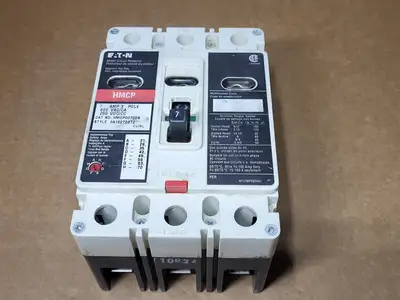

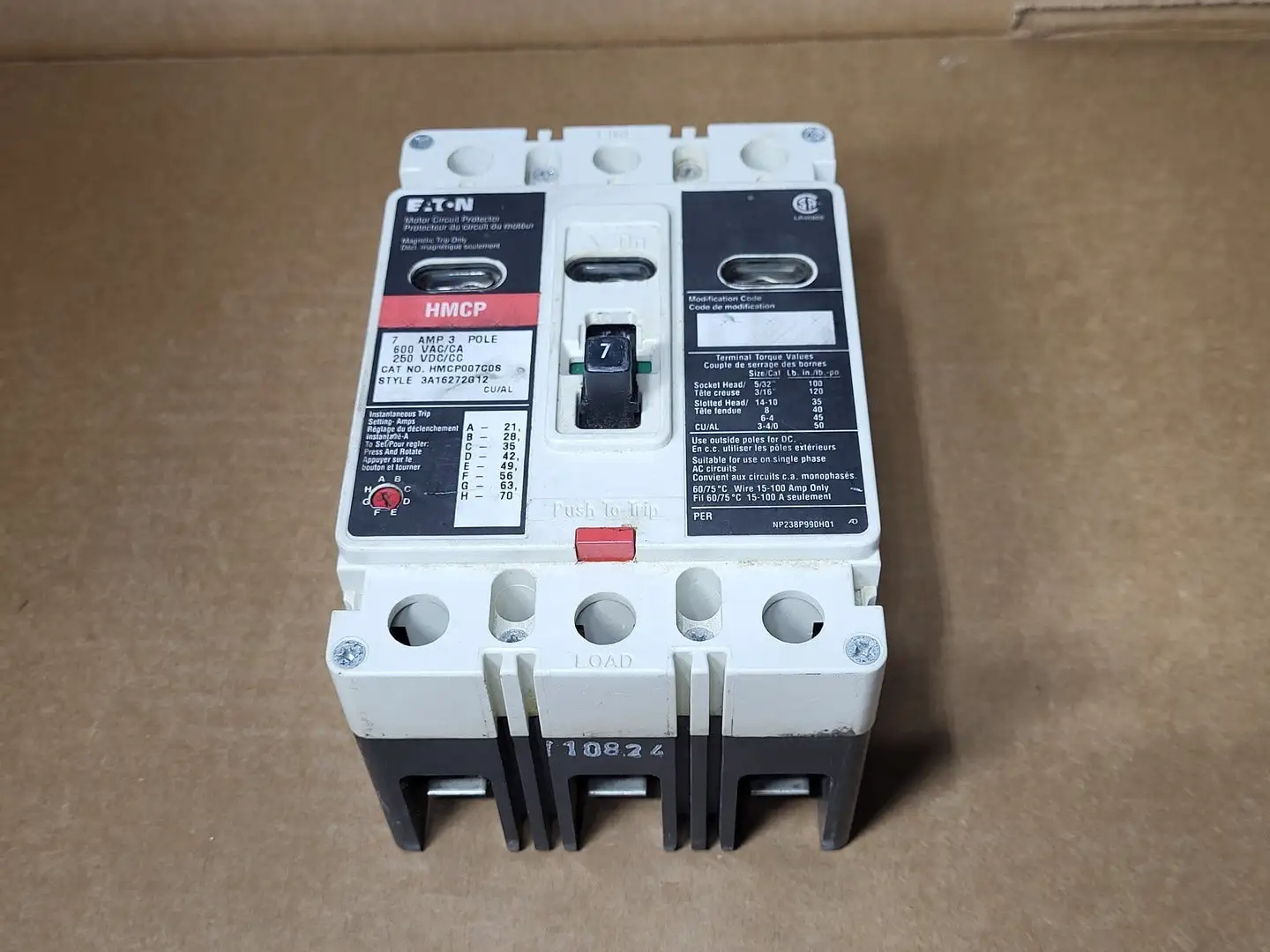

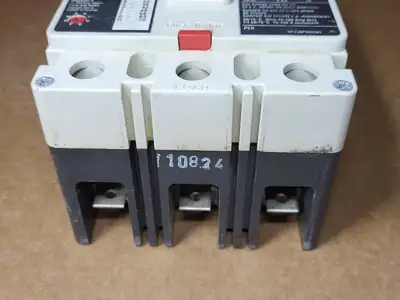

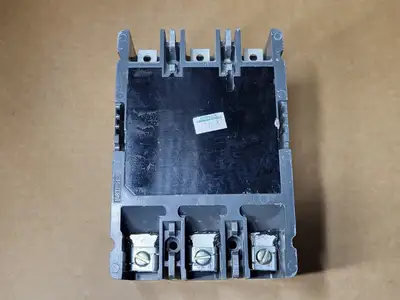

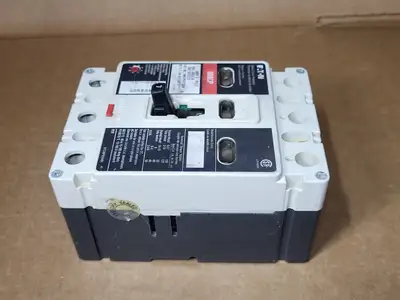

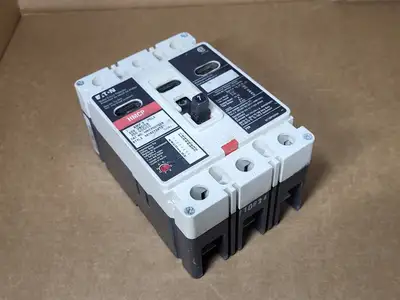

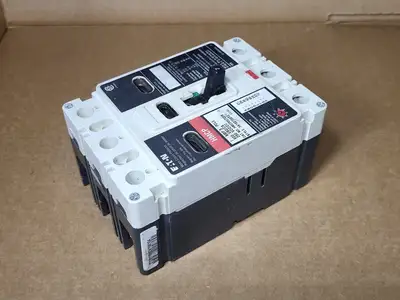

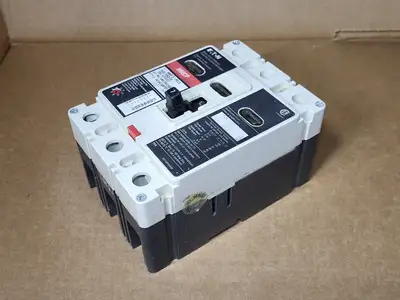

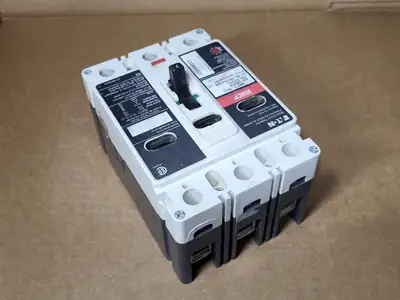

USED EATON HMCP007C08

Amps: 7 amps
Series: HMCP
# of Poles: 3
Mounting Style: Bolt-On
Voltage: 600 volts
Phase: 3-phase
Voltage Rating DC: 250 VDC
Trip Type: Magnetic Only

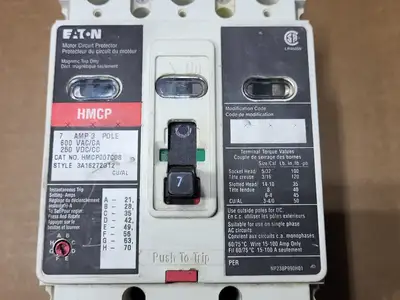

Instantaneous Trip Settings: A 21A, B 25A, C 35A, D 42A, E 49A, F 56A, G 63A, H 70A
Terminal Torque Socket Head 5/32: 100 lb in
Terminal Torque Socket Head 3/16: 120 lb in
Terminal Torque Slotted Head 14 to 10 AWG: 35 lb in
Terminal Torque Slotted Head 8 AWG: 40 lb in
Terminal Torque Slotted Head 6 to 4 AWG: 45 lb in
Terminal Torque CU/AL 3 to 4 0 AWG: 50 lb in
