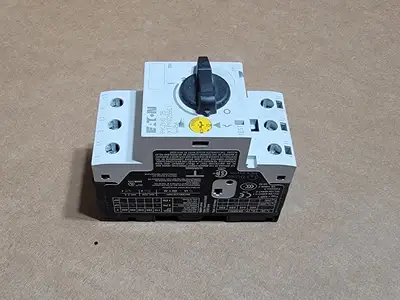

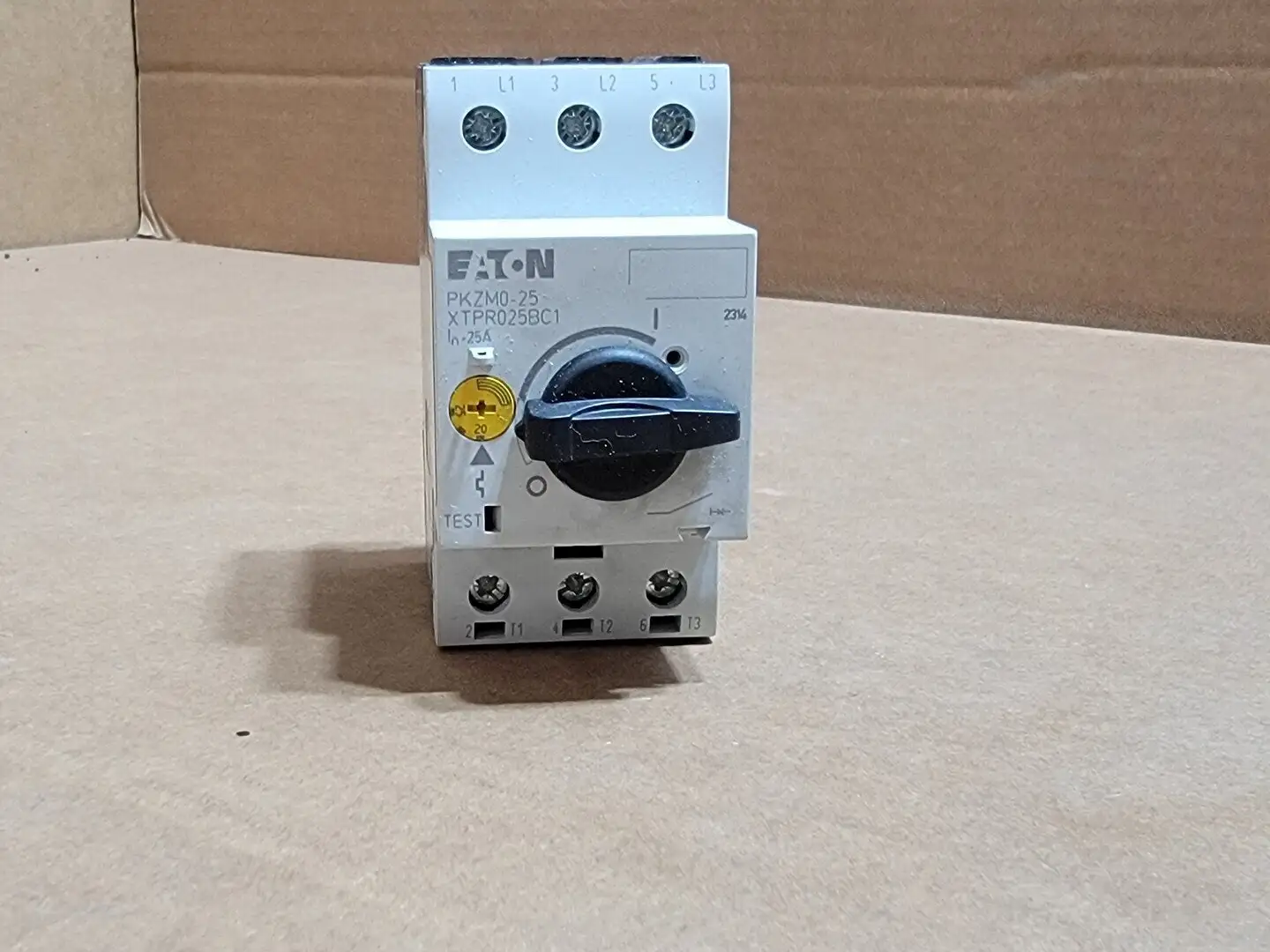

NEW 2023 EATON PKZM0-25

Amps: 25 amps
Series: PKZM0
# of Poles: 3
Voltage: 600 volts
Phase: 3-phase
AFCI: No
GFCI: No
Overview:
Product type: Motor protection circuit breaker (manual motor starter)
Rated current (adjustable): 20 - 25 A
Number of poles: 3-pole
Rated operational voltage: Up to 690 V AC (600 V AC compatible)
Tripping mechanism: Thermal-magnetic (overload and short-circuit protection)
Phase failure sensitivity: Yes
Motor power rating (AC-3): approx. 5.5 kW @ 230 V, 12.5 kW @ 400 V, 15 kW @ 500 V, 22 kW @ 690 V
Mounting: DIN rail (IEC/EN 60715)
Connection type: Screw terminals
Protection rating: IP20
Standards and approvals: IEC/EN 60947-4-1, UL, CSA, CE
Application: Motor protection and manual switching in industrial control systems
