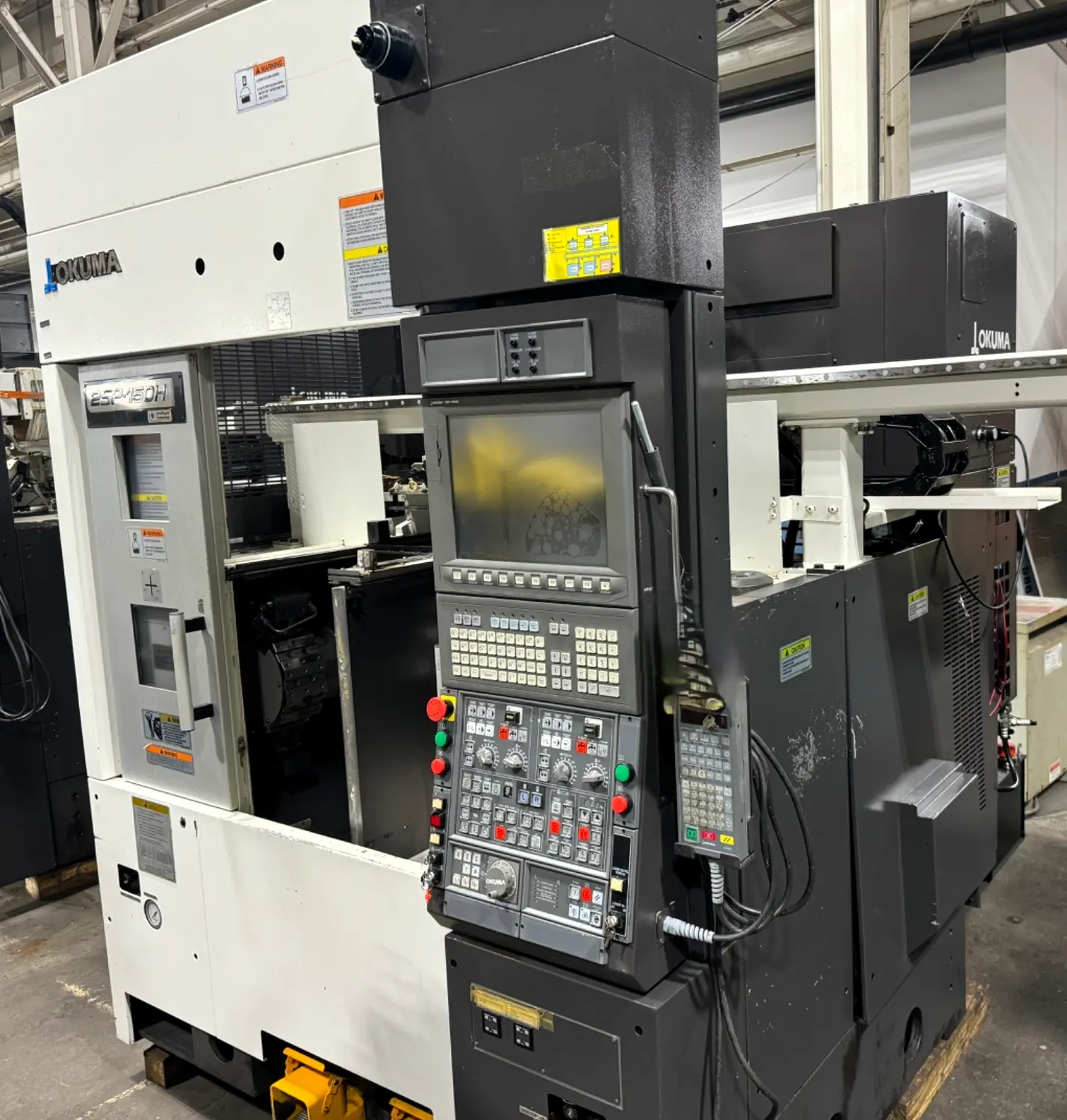

OKUMA 2SP-150H CNC Turning Center, New in 2015.
Okuma OSP-P300L CNC Control.
8" 3-Jaw Chuck.
Expanding Mandrel.
Turret Tooling.
Gantry Loader.
Pendant Controller.
Chip Auger.
Stack Light.
| Swing | 13.7" | 347.98 mm |
| Machining Length | 5.91" | 150.11 mm |
| # Axis | 3 | 3 |
| Chuck Size | 6" | 152.4 mm |
| Bar Capacity | 2" | 50.8 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 8.68" | 220.47 mm |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Control | CNC (Okuma OSP-P300L) | CNC (Okuma OSP-P300L) |
| Dimensions | 84.65" x 72.83" x 104.25" | 84.65" x 72.83" x 104.25" |
| Weight | 11,000 lbs | 11,000 lbs |
General Specifications:
Turning Diameter: 8.66"
Turning Length: 5.91"
X-Axis Travel: 5.91"
Z-Axis Travel: 6.10"
Spindle Speed: 4,500 RPM
Nose: 5.51" Flat
Bearing Diameter: 3.15"
Bore Diameter: 1.65"
Turret Type: Turning V12
Tool Positions: 12
OD Tool Shank: 0.98" x 0.98"
ID Tool Shank: 1.57"
Rapid Traverse (X/Z): 79 FPM
Spindle Motor: 14.67 HP
Machine Dimensions: 84.65" x 72.83" x 104.25"
Machine Weight: 11,000 (with Loader)
Okuma OSP-P300L CNC Control
8" 3-Jaw Chuck
Expanding Mandrel
Turret Tooling
Gantry Loader
Pendant Controller
Chip Auger
Stack Light
