| size | 19 X 17 x 15 | 19 X 17 x 15 |
| X | 19.7" | 500.38 mm |
| Y | 17.7" | 449.58 mm |
| Z | 15.7" | 398.78 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 14,000 RPM | 14,000 RPM |
| # ATC | 60 | 60 |

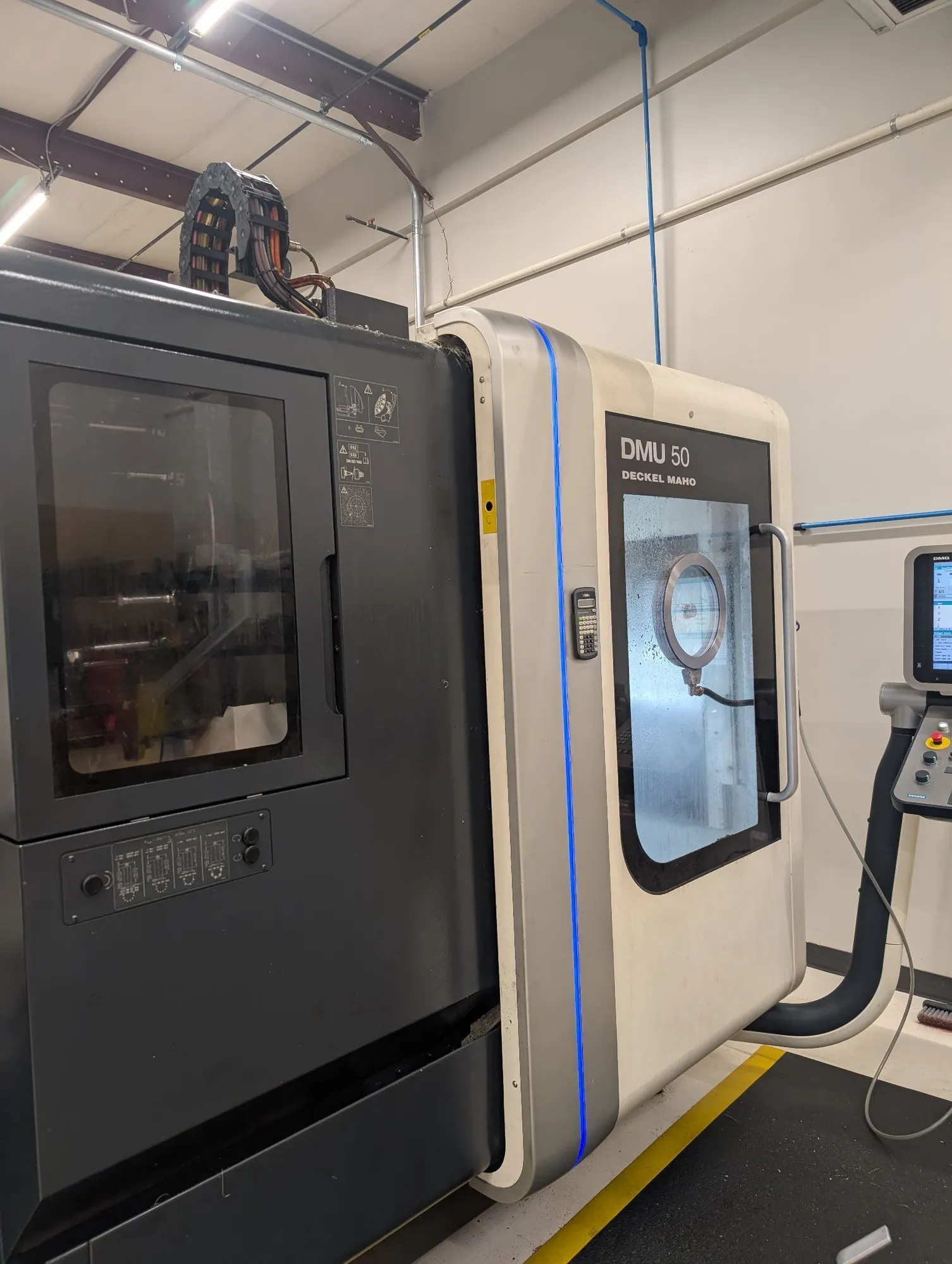

19" x 17" x 15" Deckel Maho Model DMU-50 5-Axis Universal Milling Machine (2012)
Pallet Size 27.6" X 19.7"
Travel (X, Y, Z Axis) 19.7" X 17.7" X 15.7"
B Axis Rotary -5 + 110 Degrees
A-Axis Rotation 360
Max Table Load 800 Lbs
Rapid Traverse 1181 Ipm
Spindle Speed 14,000 Rpm
Spindle Taper Hsk-A63
Main Motor 30 Hp
Tool Storage 60
Machine Weight (Approx) 13,000 Lbs
Power 220v / 3 Phase / 50kva
Siemens CNC S840D Ergoline
14000rpm Hsk-A63 Spindle
Extended 60 Tool Capacity
Full 5 Axis
Chip Conveyor
Dmgmori Spindle Probe &Amp; Laser Arm
High Pressure Coolant
Paper Filtration Coolant System
New X-Axis And Y-Axis Ball Screw
Under 8000 Cutting Hours
