This machine is currently under power and available for inspection. A factory-trained technician can be provided at extra cost for installation & operator training.
Please note: The machine is sold “as-is, where-is.” Pricing does not include decommissioning, loading, shipping, installation, training, taxes, or any other associated costs.
| Effective Cutting Length | 20' | 20' |
| Effective Cutting Width | 10' | 10' |
| Table Size | 10'x20' | 10'x20' |
| Table Type | Down Draft | Down Draft |
| Nesting Software | SigmaNEST Techno | SigmaNEST Techno |
| Layout Marking | Yes | Yes |
| Marking Unit | Yes | Yes |
| Power Source | Hypertherm XPR300 Core | Hypertherm XPR300 Core |
| Amps | 300 | 300 |
| Number of Oxy-Fuel Torches | 1 | 1 |
| Max Material Thickness | 8" | 203.2 mm |
| Minimum Material Thickness | 0.125" | 3.175 mm |

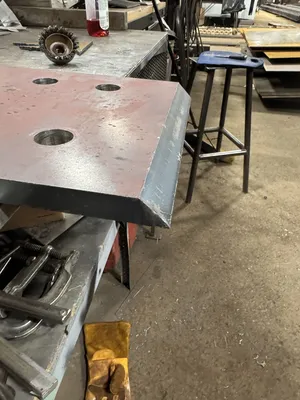

| Bevel | Yes | Yes |
| Number of Spindles | 1 | 1 |
| Tool Changer | VD40 drilling unit | VD40 drilling unit |
| Dust Collector | Donaldson Fume Extraction Unit: DFPre9-12000 | Donaldson Fume Extraction Unit: DFPre9-12000 |
| Machine Hours | 6344.1 | 6344.1 |

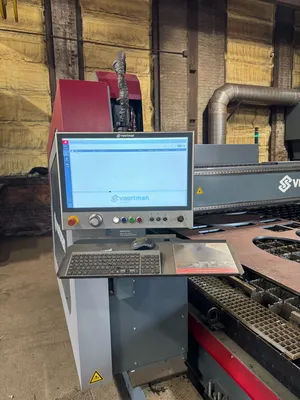

| Control | CNC (VACAM Control) | CNC (VACAM Control) |
Production Time: 1429.16 hours
Basic Configuration:

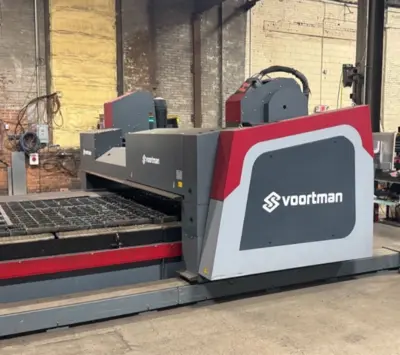

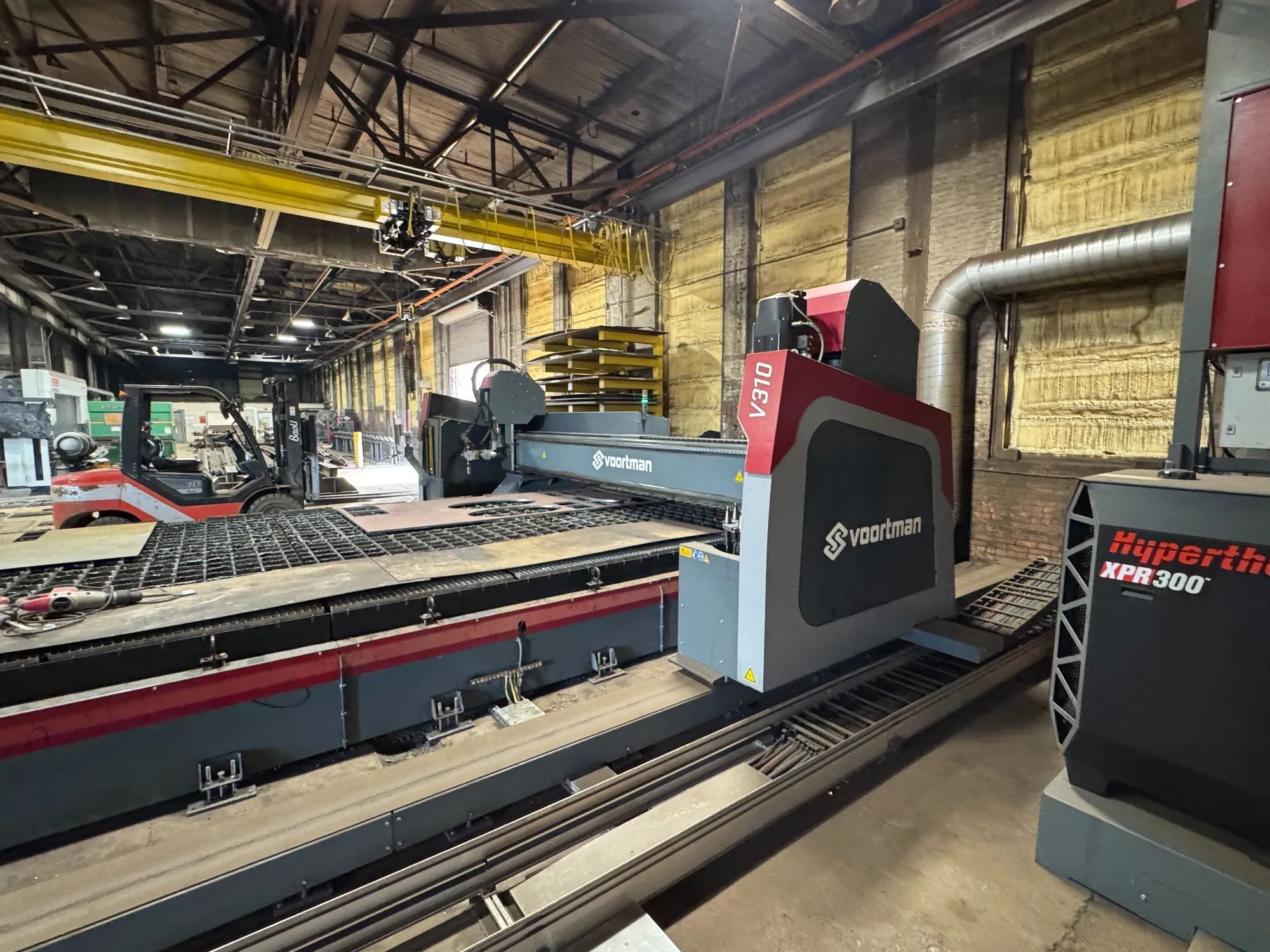

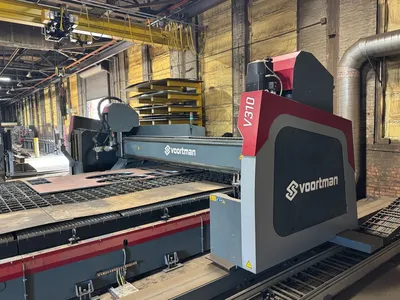

- V310 plate processing machine with 1 gantry beam (17-1/8 ft) and side trucks
- Capable of processing plates up to 10 ft x 20 ft
- X-rail (29-1/2 ft) with double linear guides, helical rack and pinion system, and rubber covering band

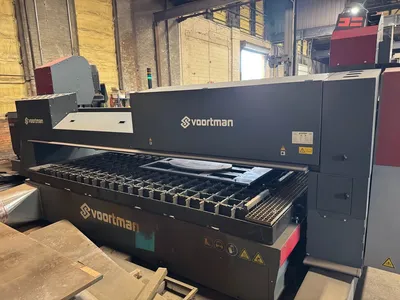

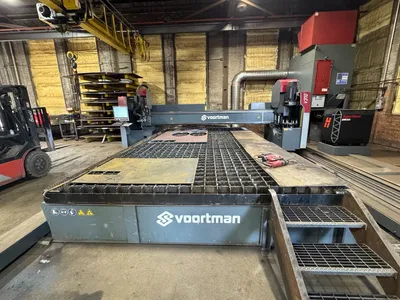

- Plasma cutting and extraction table with drilling supports (11-4/5 ft x 20-1/2 ft, 1 pcs)

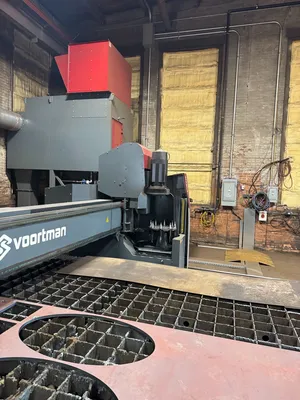

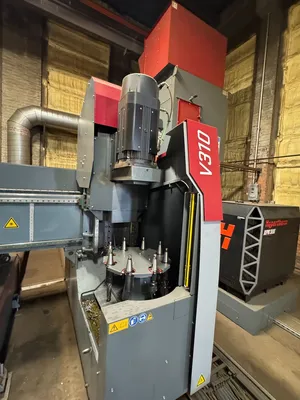

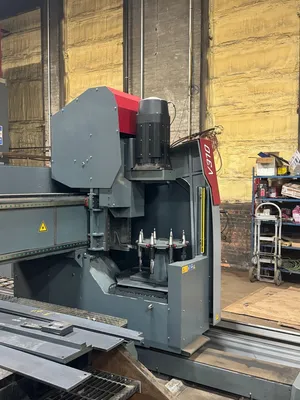

Position 1: VD40 drilling unit

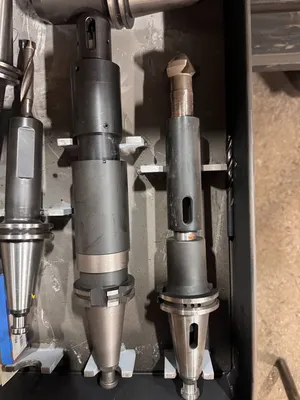

- Servo drive and automatic tool changer (up to 8 tools)
- Driven suspension (1 pcs, servo motor driven)

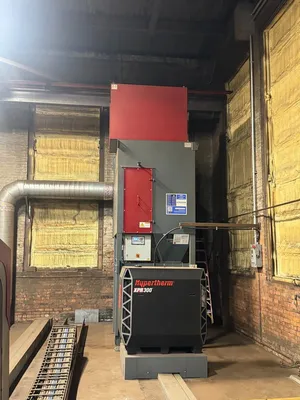

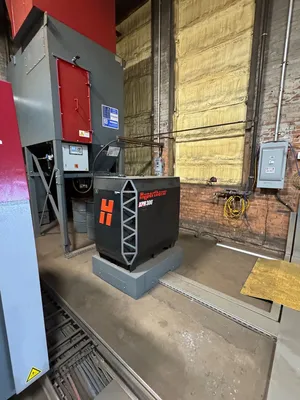

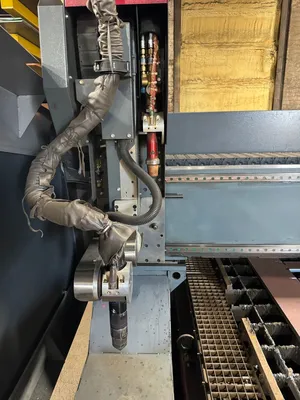

Position 2: Plasma cutting unit Hypertherm XPR300 Core

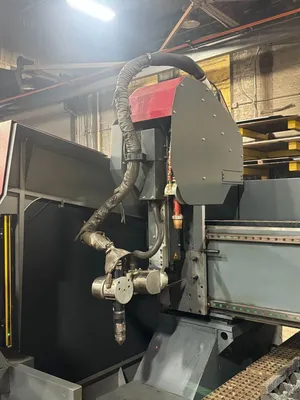

- Plasma 3D bevel unit (1 pcs, 5 NC-axis, Voortman height control, intelligent torch positioning system, 3D collision sensor)
- Driven suspension
- Dross inhibitor
- Arc Glare protection
- Marking tool
Additional components:

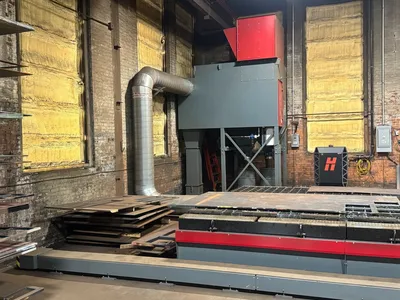

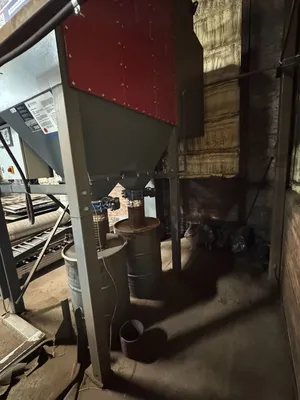

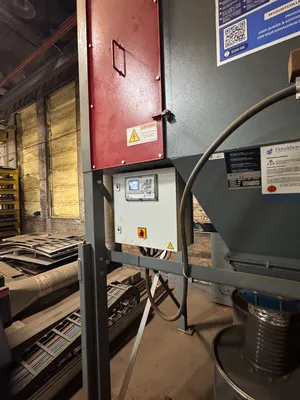

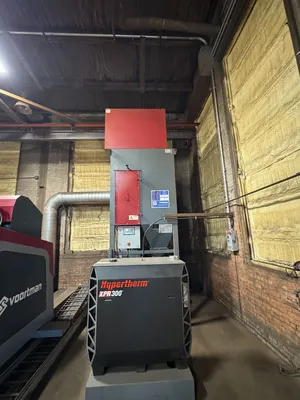

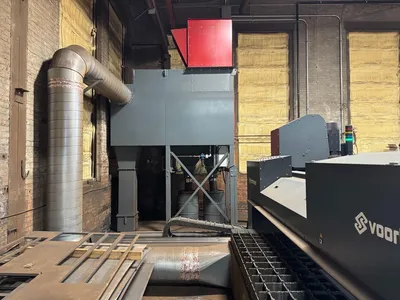

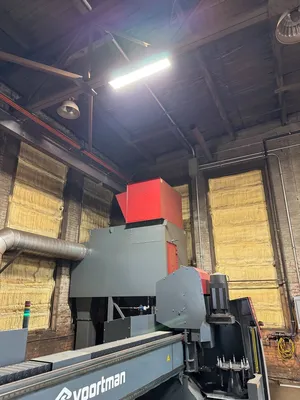

- Donaldson fume extraction unit DFPre9-12000
Safety devices:
- Light curtain
- Safety bumpers
Oxy-fuel cutting torch (1 pcs)
- Automatic gas console, ignition, and piercing
- Voortman height control (1 pcs, capacitive height control)
- Magnet holder (can be manually exchanged with plasma torch)
