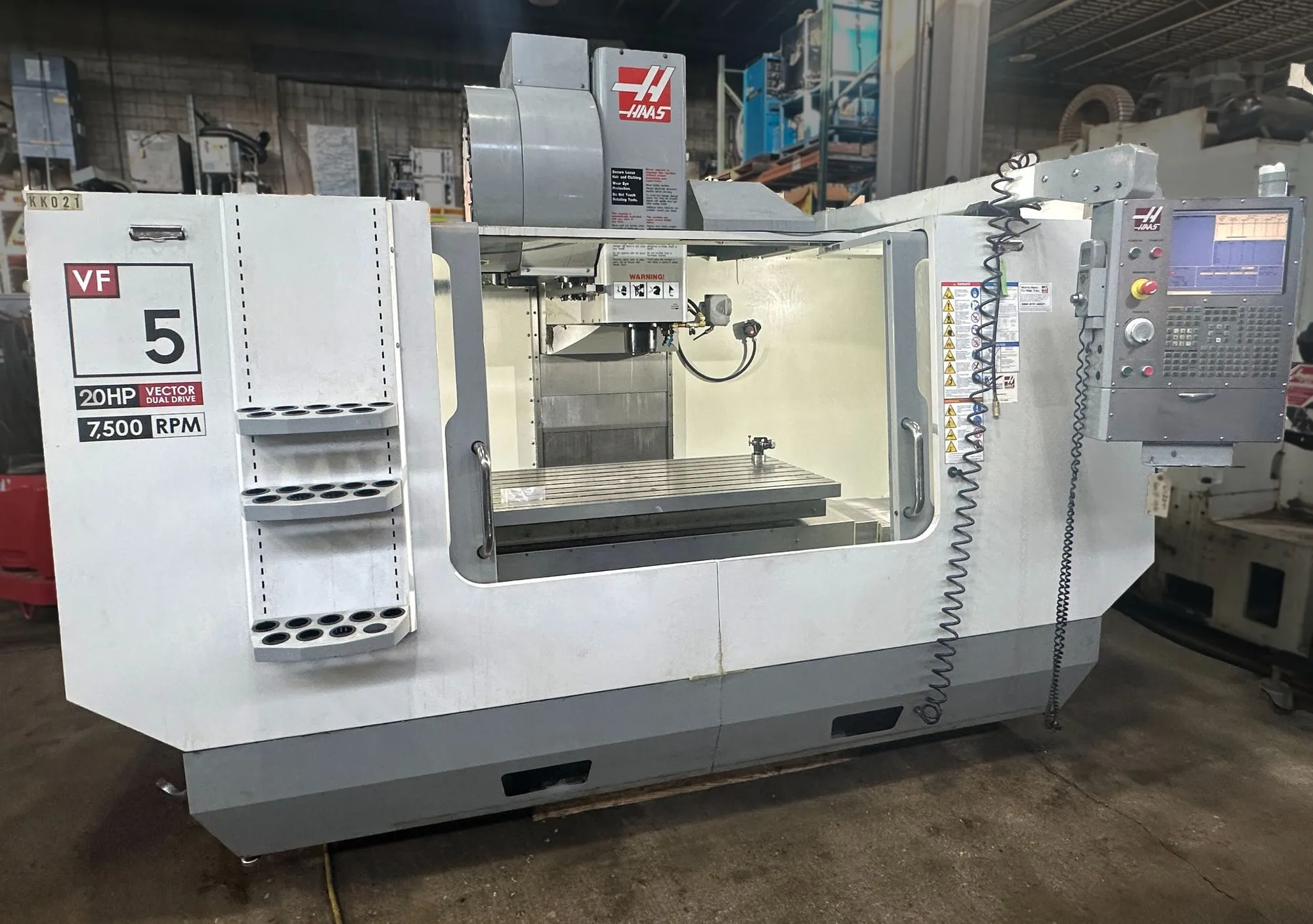

HAAS VF-5D/40 CNC VERTICAL MACHINING CENTER, Haas CNC Control, 52" x 23" Table, X=50", Y=26", Z=23", CAT 40 Taper, 7500 Max Spindle RPM, 24 ATC, Chip Auger & Coolant System, New 2008.
| CNC Control | Haas CNC Control | Haas CNC Control |
| # Axis | 3 | 3 |
| Table-L | 52" | 1,320.8 mm |
| Table-W | 23" | 584.2 mm |
| Max Table Load Capacity | 4,000 lb | 1,814.4 kg |
| X-Axis (Longitudinal Travel) | 50" | 1,270 mm |
| Y-Axis (Cross Travel) | 26" | 660.4 mm |
| Z-Axis (Vertical Travel) | 25" | 635 mm |
| Spindle Power | 20 hp | 14.9 kW |
| Max Spindle Speed | 7,500 RPM | 7,500 RPM |
| Spindle Taper | CAT 40 | CAT 40 |
| Automatic Tool Changer Capacity (ATC) | 24 | 24 |
| Electrics | 230/3/60 | 230/3/60 |
Haas CNC Control, 20 HP Dual Vector Drive, Spindle Max 7500 RPM, Low TSC Pressure, Renishaw Touch & Tool Probe, Chip Auger, Coolant System.
