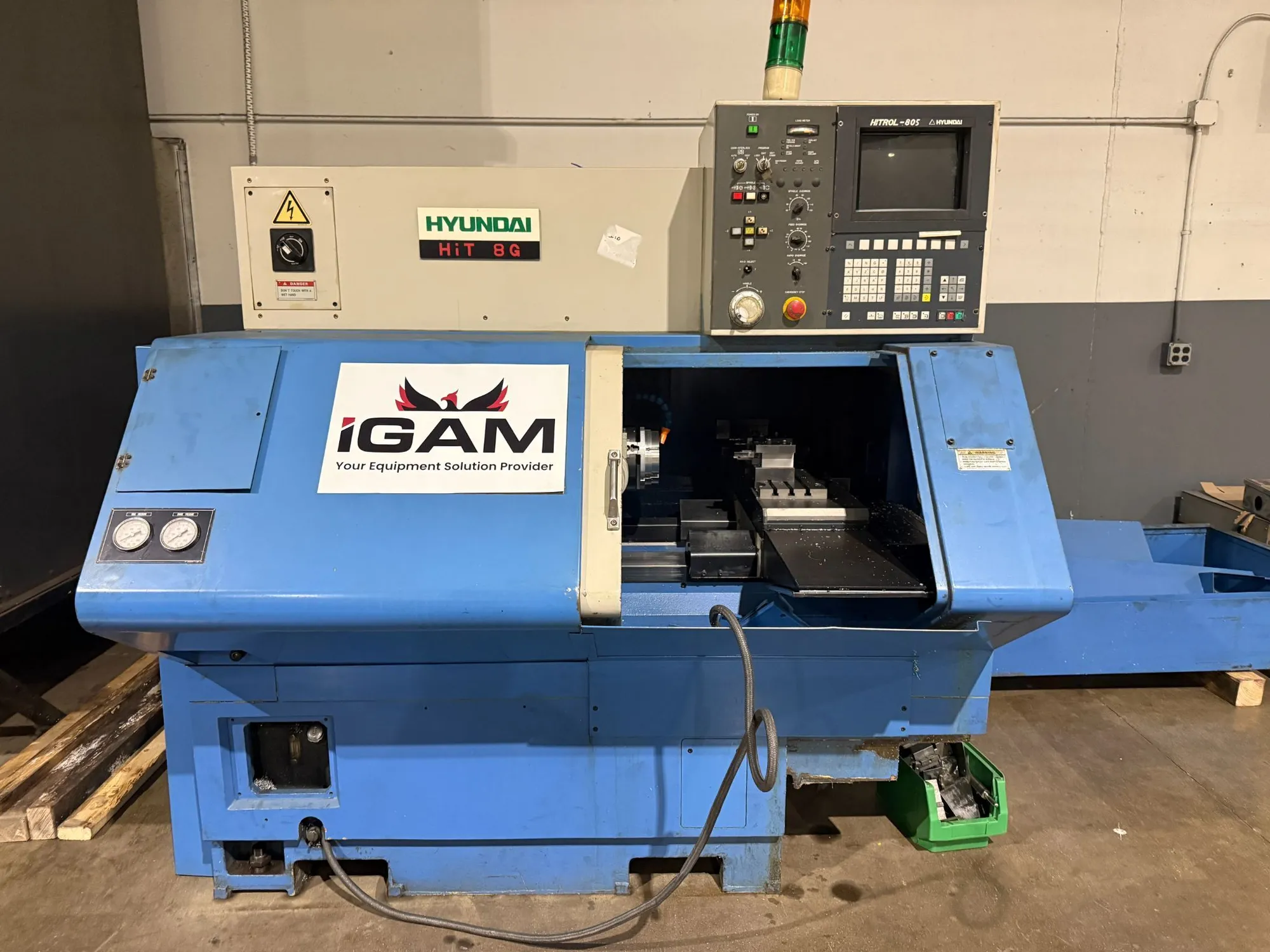

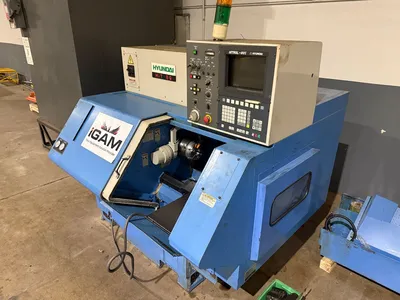

1996 Hyundai HIT-8G.
RS-232 port.
Tool Eye.
Machine Voltage: 220VAC.
Machine KVA: 26.

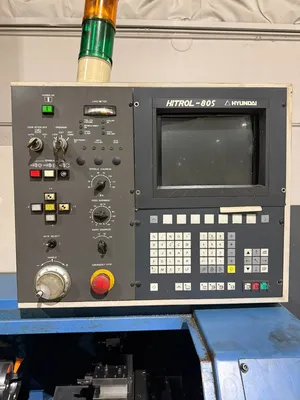

| CNC Control Type | Simens HiTROL 805 | Simens HiTROL 805 |
| # of Axes | 2 | 2 |
| Swing | 11.8" | 299.72 mm |
| Turning Dia | 6.3" | 160.02 mm |
| Chuck Size | 6.5" | 165.1 mm |
| Bar Capacity | 1.9" | 48.26 mm |
| X-axis Travel | 19.3" | 490.22 mm |
| Z-axis Travel | 12" | 304.8 mm |
| Rapid Traverse Rate (X/Y/Z) | 1181 ipm | 1181 ipm |
| Spindle Nose | A2-5 | A2-5 |
| Spindle Speed (rpm) | 6,000 RPM | 6,000 RPM |
| Spindle Motor (hp) | 10 hp | 7.5 kW |
| Tailstock | No | No |

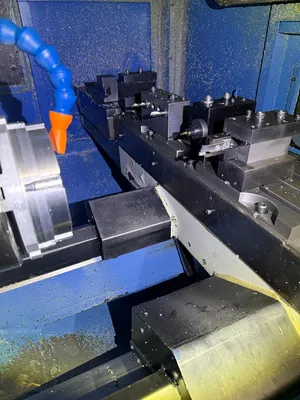

| Turret Capacity | Gang Tooling | Gang Tooling |
| Machine Weight | 5,950 lb | 2,698.9 kg |
| Control | CNC (siemens) | CNC (siemens) |
| Weight | 5950 | 5950 |
