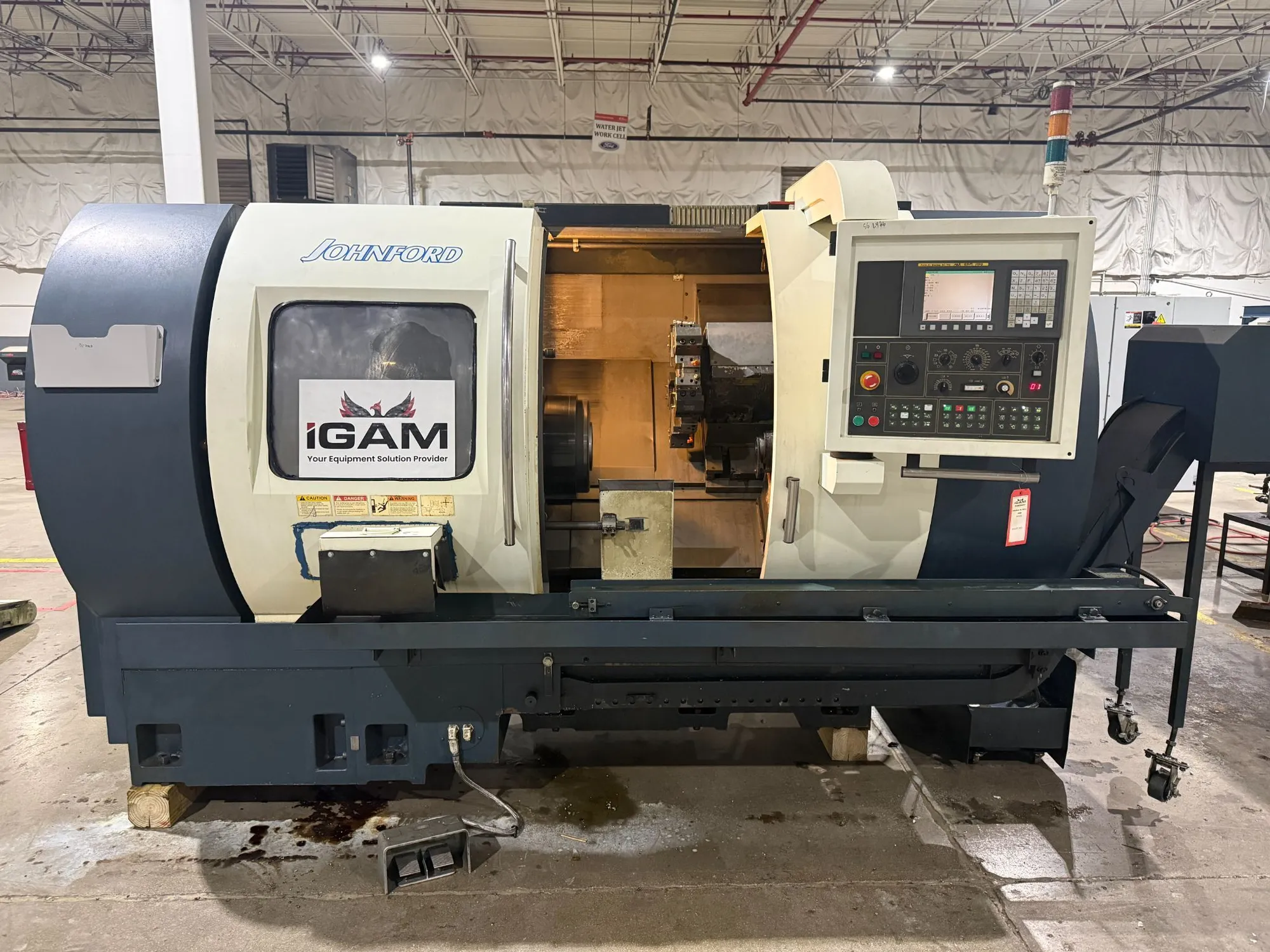

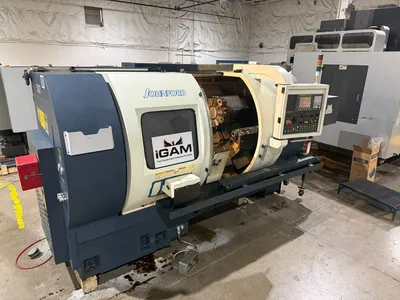

2006 Johnford SL 500 A

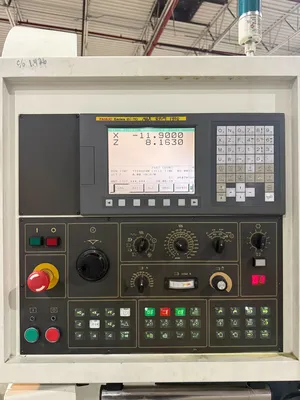

Fanuc Oi-TC Control

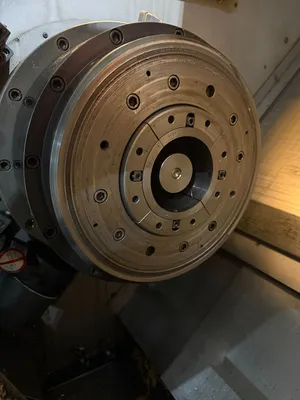

Flex-E-On HFX 1150 Hydraulic Collet Chuck

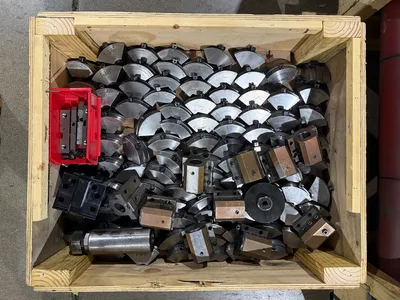

Many Flex-E-On Jaw sets

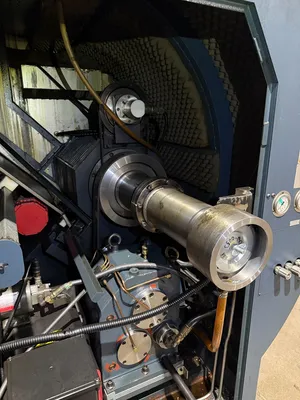

Original Spindle Clamp/Unclamp cylinder removed (For Flex-E-On collet chuck)
RS - 232 port
Coolant Tank and Pump

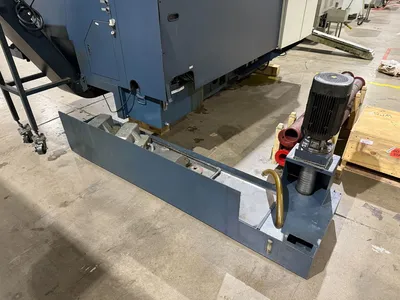

Chip Conveyer
Parts Catcher and front mounted conveyor

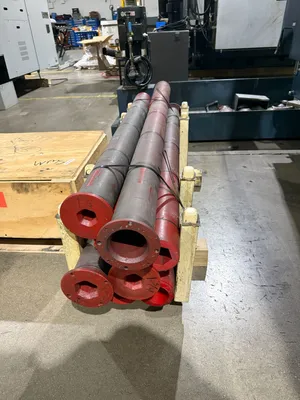

Spindle Liners

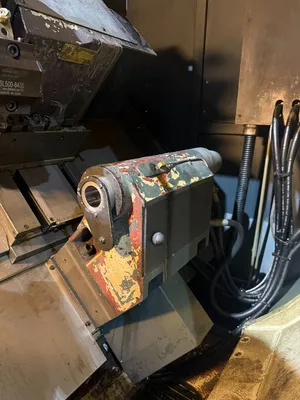

Tool Eye
Spindle Two Speed Gear Box
Machine Voltage: 220VAC
Machine KVA: 50
| CNC Control Type | FANUC Oi-TC | FANUC Oi-TC |
| # of Axes | 2 | 2 |
| Swing | 22.8" | 579.12 mm |
| Turning Dia | 17.7" | 449.58 mm |
| Center Distance | 28" | 711.2 mm |
| Bar Capacity | 4.015" | 101.98 mm |
| X-axis Travel | 9.45" | 240.03 mm |
| Z-axis Travel | 23.2" | 589.28 mm |
| Rapid Traverse Rate (X/Y/Z) | X: 590 ipm, Z: 708 ipm | X: 590 ipm, Z: 708 ipm |
| Spindle Nose | A2-11 | A2-11 |
| Spindle Speed (rpm) | 2,800 RPM | 2,800 RPM |
| Spindle Motor (hp) | 35 hp | 26.1 kW |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |

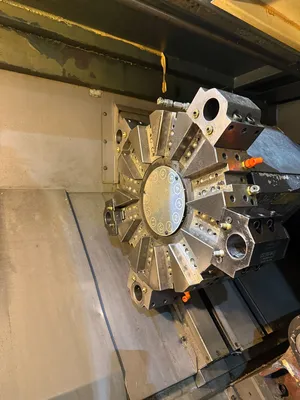

| Turret Capacity | 12 | 12 |
| Machine Weight | 16,000 lb | 7,257.5 kg |
| Control | CNC (Fanuc Oi-TC) | CNC (Fanuc Oi-TC) |
| Weight | 16,000 lbs | 16,000 lbs |
