USED 2021 MEC 6092RT

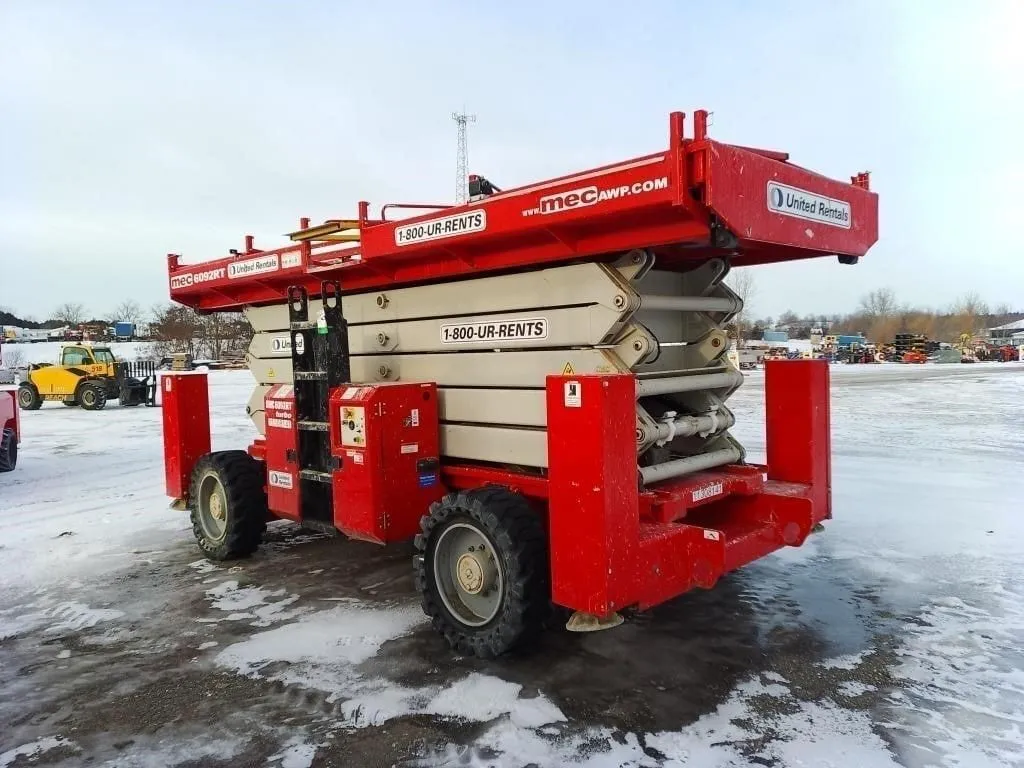

2021 MEC 6092RT ROUGH TERRAIN SCISSOR LIFT

Manufacturer: MEC
Model: 6092RT
Mfg Date: 11/21

Fuel Type: Diesel-powered internal combustion engine

Heights
Working height: 66 ft (20.2 m)
Platform height: 60 ft (18.2 m)
Maximum drive height: 35 ft (10.7 m)
Platform deck height (stowed): 6 ft 7.5 in (2.02 m)
Stowed height (top guardrail): 10 ft 4 in (3.15 m)
Stowed height (rails lowered): 7 ft 10 in (2.38 m)
Ground clearance: 14 in (35.6 cm)

Platform & Capacity
Platform capacity: 1,200 lb (544 kg)
Roll-out deck capacity (per deck): 500 lb (227 kg)
Persons rating: 4 (persons + tools)
Maximum side load: 90 lb (400 N)

Dimensions
Overall width: 92 in (2.34 m)
Platform length (decks stowed): 17 ft 5 in (5.3 m)
Platform length (decks extended): 24 ft 9 in (7.54 m)
Outside platform width: 75 in (1.9 m)
Wheelbase: 113 in (2.87 m)

Performance
Drive speed (stowed): 4.0 mph (6.4 km/h)
Drive speed (raised): 0.4 mph (0.6 km/h)
Raise / lower time: 65 sec / 59 sec
Gradeability: 45%
Turning radius (inside, 2-wheel steer): 6 ft 10 in (2.08 m)
Turning radius (outside, 2-wheel steer): 17 ft 5 in (5.3 m)
Maximum wind speed: 28 mph (12.5 m/s)

Weights & Loads
Machine weight: 21,780 lb (9,880 kg)
Maximum load per wheel: 7,200 lb (3,265 kg)
Maximum ground pressure: 114 psi (8.0 kg/cm²)

Hydraulics & Drive
Hydraulic system pressure: 3,200 psi (220 bar)
Drive system: Planetary drive / 2-speed wheel motors
Hydraulics: Variable displacement
Axle oscillation: Rear axle
Brakes: Multi-disc
Tires & Fluids
Tires: 12 x 33 in (30 x 84 cm)
Fuel tank capacity: 30 gal (113.6 L)
Hydraulic fluid capacity: 30 gal (113.6 L)
