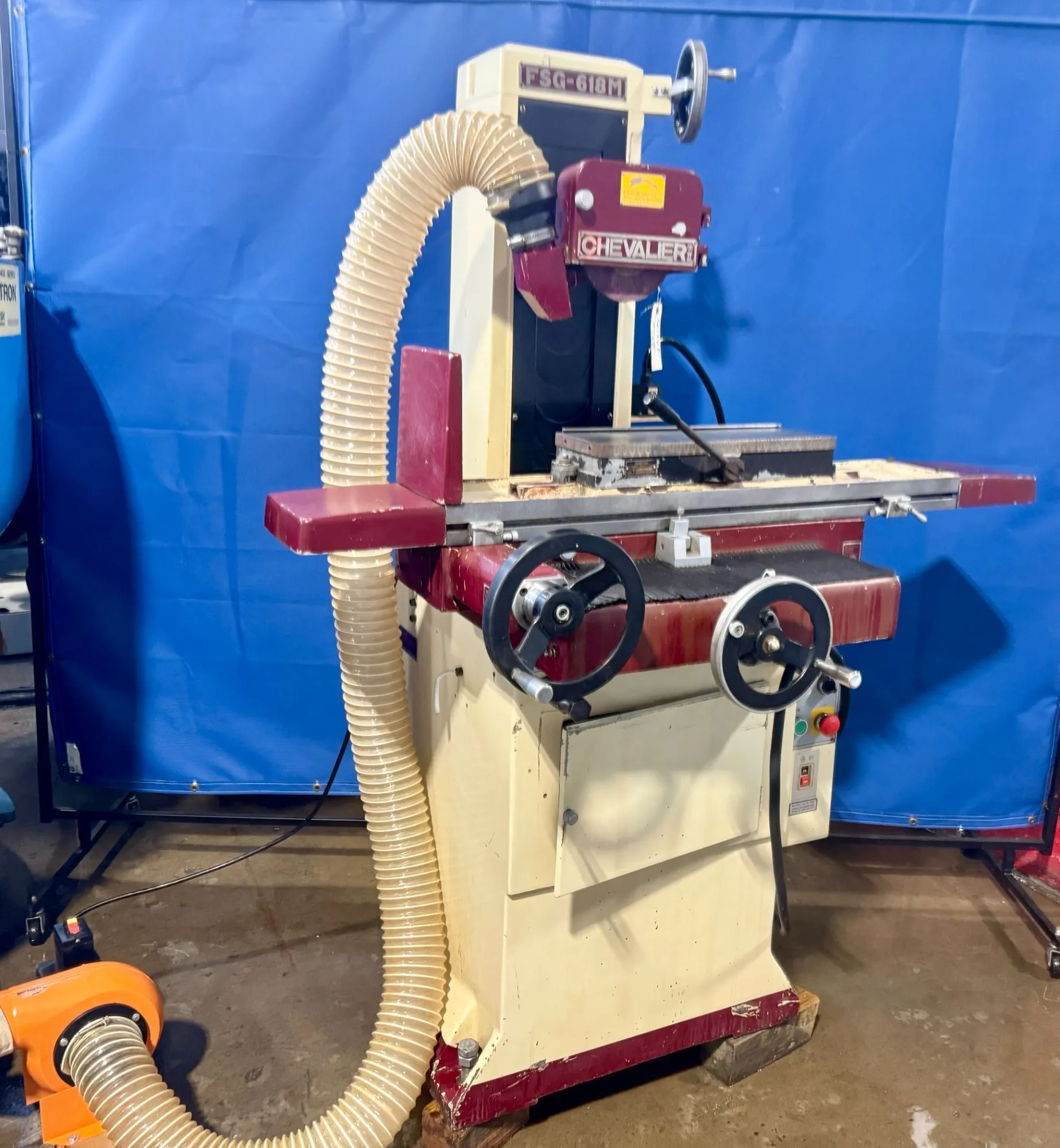

6" x 18" CHEVALIER SURFACE GRINDER, Model FSG-618M, 8" Wheel Size, 6" x 18" Magnetic Chuck, 2 HP Spindle Motor.
| Down Feed | Yes | Yes |
| Spindle (Horz/Vert) | Horizontal | Horizontal |
| Grinding Capacity-L | 18" | 457.2 mm |
| Grinding Capacity-W | 6" | 152.4 mm |
| Table Size-L | 18.1" | 459.74 mm |
| Table Size-W | 5.9" | 149.86 mm |
| Table Load Capacity | 462 lb | 209.6 kg |
| Max Dist. Wheel Spindle Center to Table | 17.7" | 449.58 mm |
| Max Longitudinal Travel | 19" | 482.6 mm |
| Cross Travel | 7.1" | 180.34 mm |
| Max Spindle Speed | 3,450 RPM | 3,450 RPM |
| Max Grinding Wheel Diameter | 8" | 203.2 mm |
| Max Grinding Wheel Width | 0.5" | 12.7 mm |
| Max Grinding Wheel Hole Diameter | 1.3" | 33.02 mm |
| Spindle Power | 2 hp | 1.5 kW |
| Dimensions | 74.8" x 55.1" x 83.9" | 74.8" x 55.1" x 83.9" |
| Weight | 1,480 lbs | 1,480 lbs |
8" Wheel Size, 6" x 18" Magnetic Chuck, 2 HP Motor.
