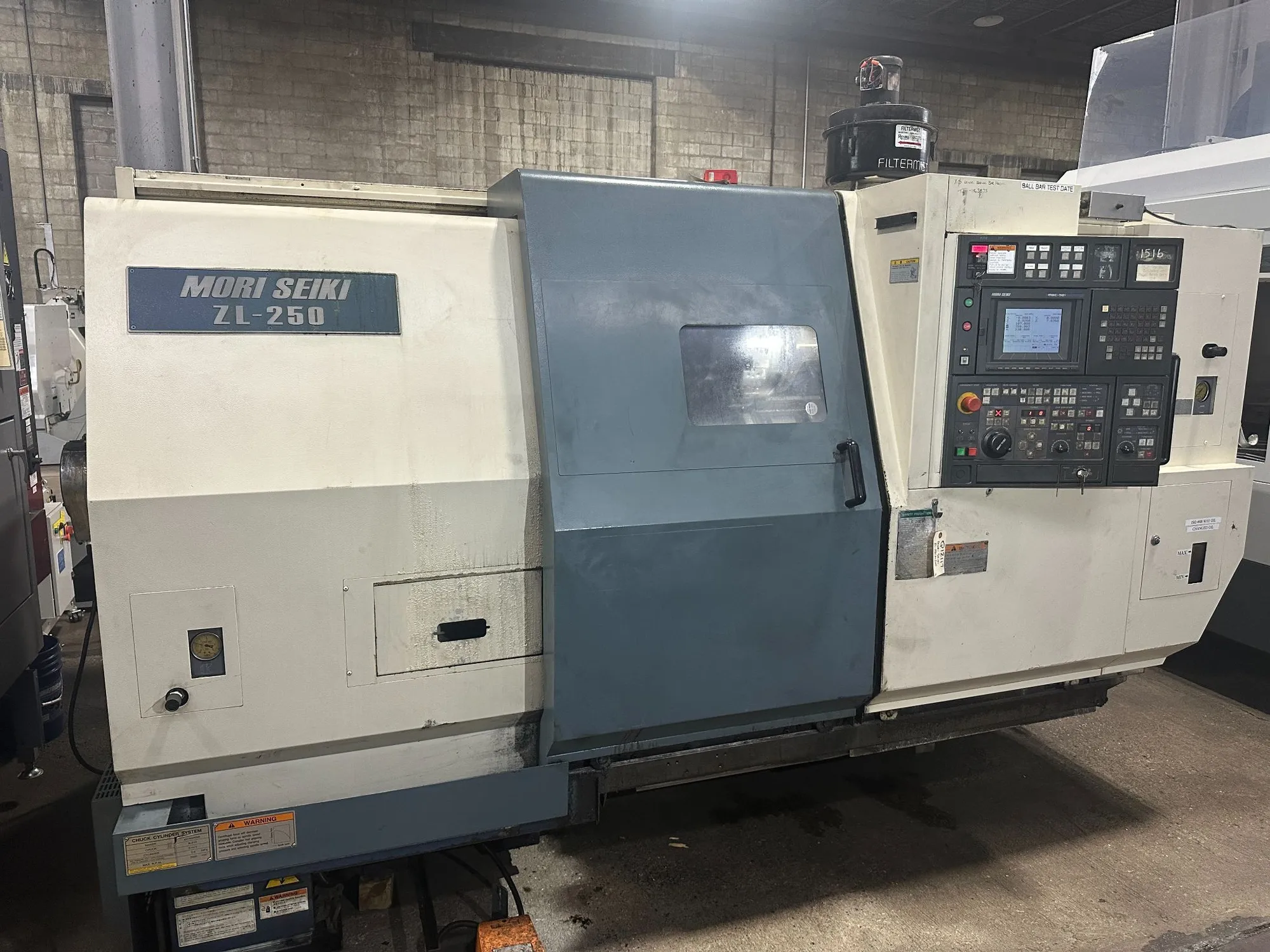

USED 2000 Mori Seiki ZL-250MC/600
Overview
Description
MORI SEIKI ZL-250 MC/600 MULTI-AXIS CNC LATHE, Mori MSC-501 CNC Control, 27" Swing, 28" Between Centers, 3000 RPM Main Spindle, 2" Bar Capacity, Twin Turrets with Live Tooling, FilterMist Mist Collector, Chip Conveyor & Coolant System, New 2000.
Specifications
| CNC Control | MSC-501 CNC | MSC-501 CNC |
|---|---|---|
| # Axis | 6 | 6 |
| Max Swing Over Bed | 27.56" | 700.02 mm |
| Max Turning Diameter | 15.35" | 389.89 mm |
| Center Distance | 28.54" | 724.92 mm |
| # Turrets | 2 | 2 |
| X-Axis (Cross Travel: Upper Turret) | 9.37" | 238 mm |
| Z-Axis (Longitud. Travel: Upper Turret) | 25.59" | 649.99 mm |
| X2-Axis (Cross Travel of Lower Turret) | 6.81" | 172.97 mm |
| Z2-Axis (Longitud. Travel: Lower Turret) | 25.59" | 649.99 mm |
| C-Axis (Indexing Pos.: Main Spindle) | 0.001° | 0° |
| C2-Axis (Indexing Pos.: Sub-Spindle) | 0.001° | 0° |
| Max Bar Capacity | 2.87" | 72.898 mm |
| Spindle Nose | A2-8 | A2-8 |
| Spindle Power | 25 hp | 18.6 kW |
| Max Spindle Speed | 3,500 RPM | 3,500 RPM |
| X-Axis Upper Turret Rapid Traverse Rate | 708 in/min. | 17,983.2 mm/min. |
| Z-Axis Upper Turret Traverse Rate | 944 in/min. | 23,977.6 mm/min. |
| Live Tooling | Yes | Yes |
| Max Live Tooling Speed | 3,000 RPM | 3,000 RPM |
| Upper Turret Live Tool Positions | 10 | 10 |
| Lower Turret Live Tool Positions | 8 | 8 |
| Tailstock | Yes | Yes |
| Dimensions | 160" x 85" x 82" | 160" x 85" x 82" |
| Weight | 17,000 lbs | 17,000 lbs |
Equipped With
MSC-501 CNC Control, 18 Live Tool Positions (10 Upper Turret/8 Lower Turret), Tailstock, Royal FilterMist Mist Collector, Chip Conveyor, Coolant System.
