USED 2011 ZAYER XIOS-4000

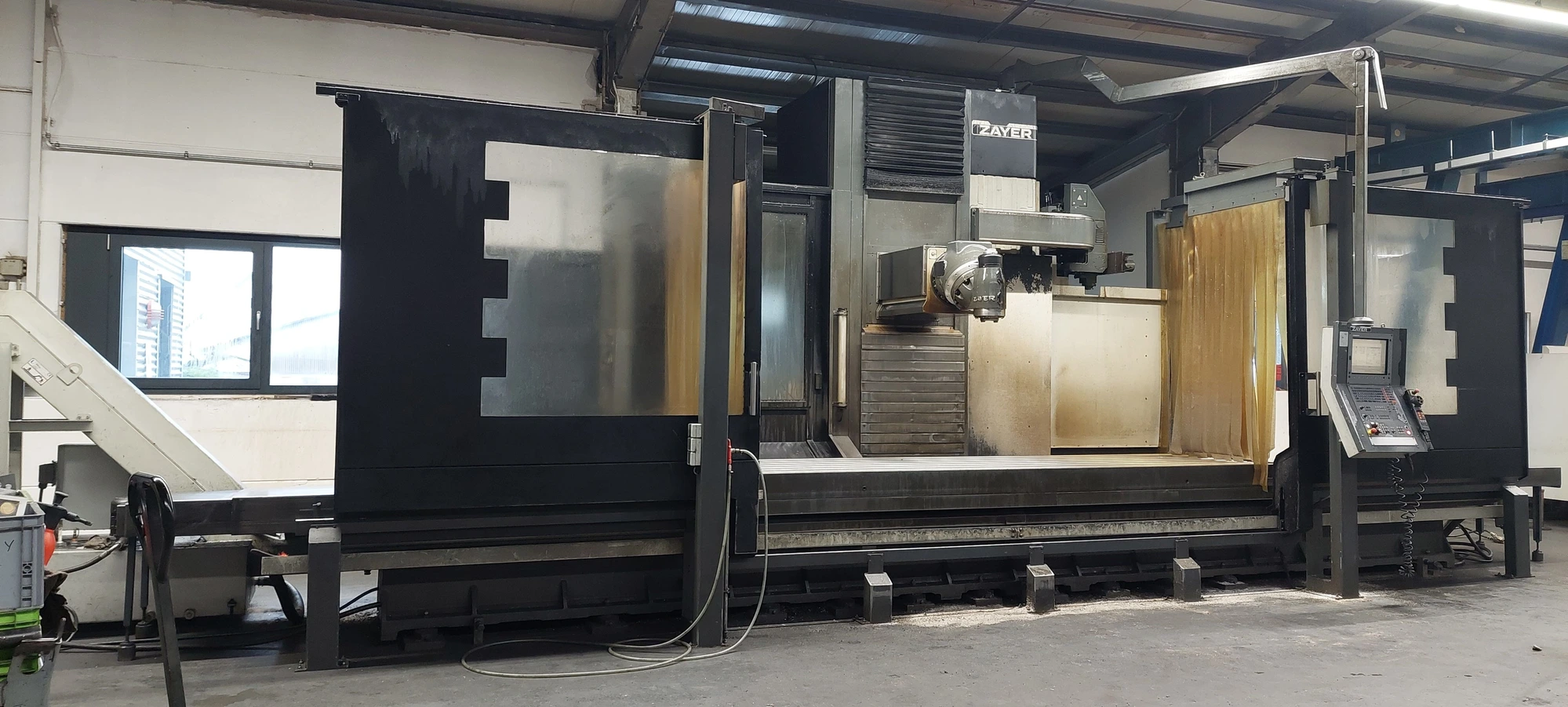

We offer for sale a used ZAYER XIOS 4000 fixed-bed milling machine, a heavy-duty and highly accurate machine designed for large-part machining with excellent stability and productivity. Built in 2011 and equipped with a HEIDENHAIN iTNC 530, this machine is ideal for demanding milling operations where long travels, high spindle power, and reliable automation are required.

Reference: 073-D050
Table dimensions: 4,000 x 1,000 mm
Number of T-slots: 7
T-slot width: 22 mm
Max. load on table: 10,000 kg
X-axis travel: 4,000 mm
Y-axis travel: 1,200 mm
Z-axis travel: 1,600 mm

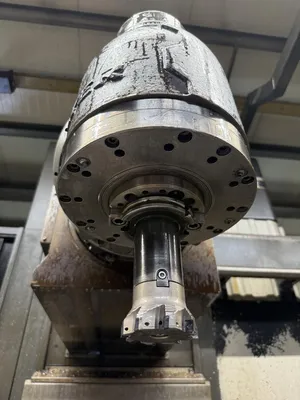

Milling head model: Automatic, 360,000 positions, 0.001° (2 bodies)
Spindle speed range: 35–3,000 rpm
Main motor power: 32 kW
Working feed rate: 15,000 mm/min
Rapid traverse (X, Y, Z): 30,000 mm/min
Year: 2011
Equipped with:

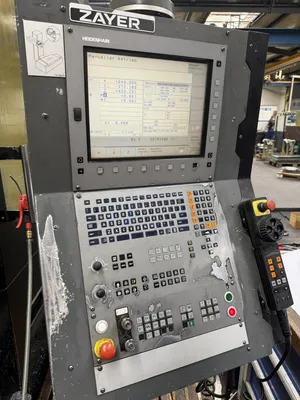

Control: HEIDENHAIN iTNC 530
Electronic handwheel: HR 420
Tool magazine: 30 tools
Workpiece measuring probe: HEXAGON
Coolant: Through-spindle

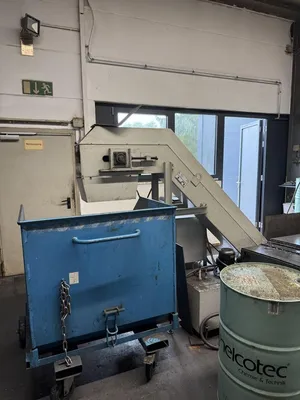

Chip conveyor

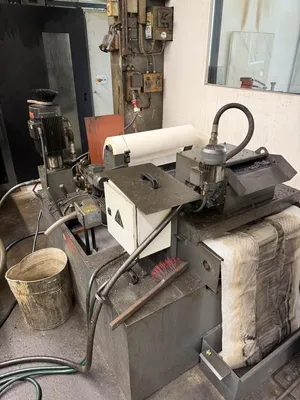

Paper filter tank
Precision machine leveling pads
