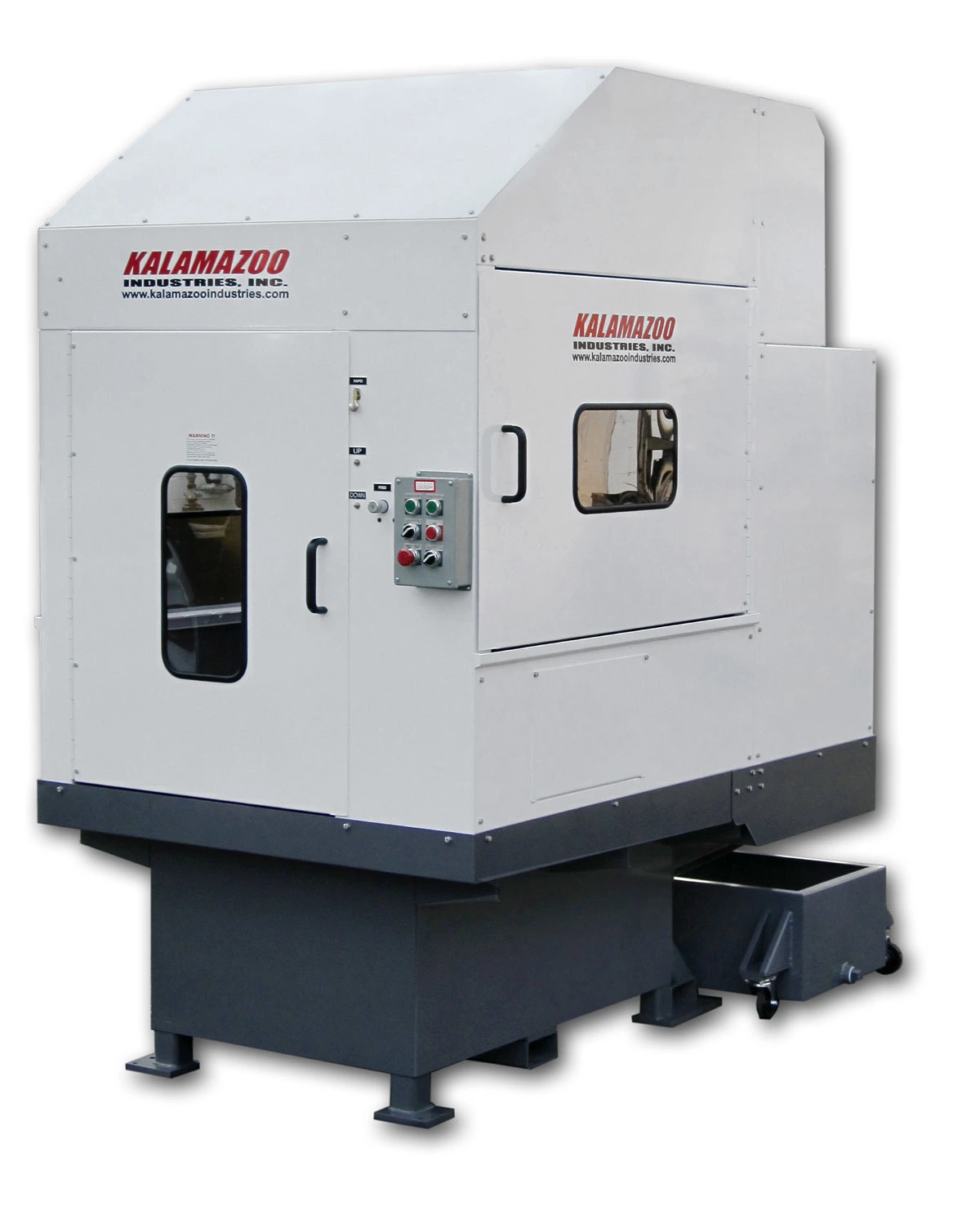

NEW KALAMAZOO INDUSTRIES K26E
Overview
Description
The K26E is designed for cutting metallurgical samples. This chop saw creates little to no heat and little to no burning. K26E 26 inch enclosed wet abrasive cutoff saw comes standard with a 40HP 3Ph (220V or 440V) motor (other sizes motors are available), air/oil power down feed system, saw enclosure, 1″ spindle arbor, coolant pump and tank system, and oscillation motor.
Specifications
| Type: | Wet | Wet |
|---|---|---|
| Enclosed (Y/N) | Yes | Yes |
| RPM | 1528 rpm | 1,528 RPM |
| Dimensions | L 61″ x W 48″ x H 92″ | L 61″ x W 48″ x H 92″ |
| Weight | 1700 | 1700 |
40 HP, 3 PH motor. Other horse power units available.
V belt drive
Totally enclosed with 6″ outlet.
Coolant pump and tank system
Power down feed – air/oil, 0-12 FPM.
1″ wheel arbor, 7″ flanges.
1528 RPM spindle speed.
Oscillation
Through holes located both on the left side of the cabinet.
Capacity 7″ pipe, 5″ solids, 8″ shapes.
Equipped With
Options available: vacuum dust collector, air jawed vise or air chain vise (specify) , door safety interlocks, bed filter/pump system, T slot tables, and moveable X axis table.
