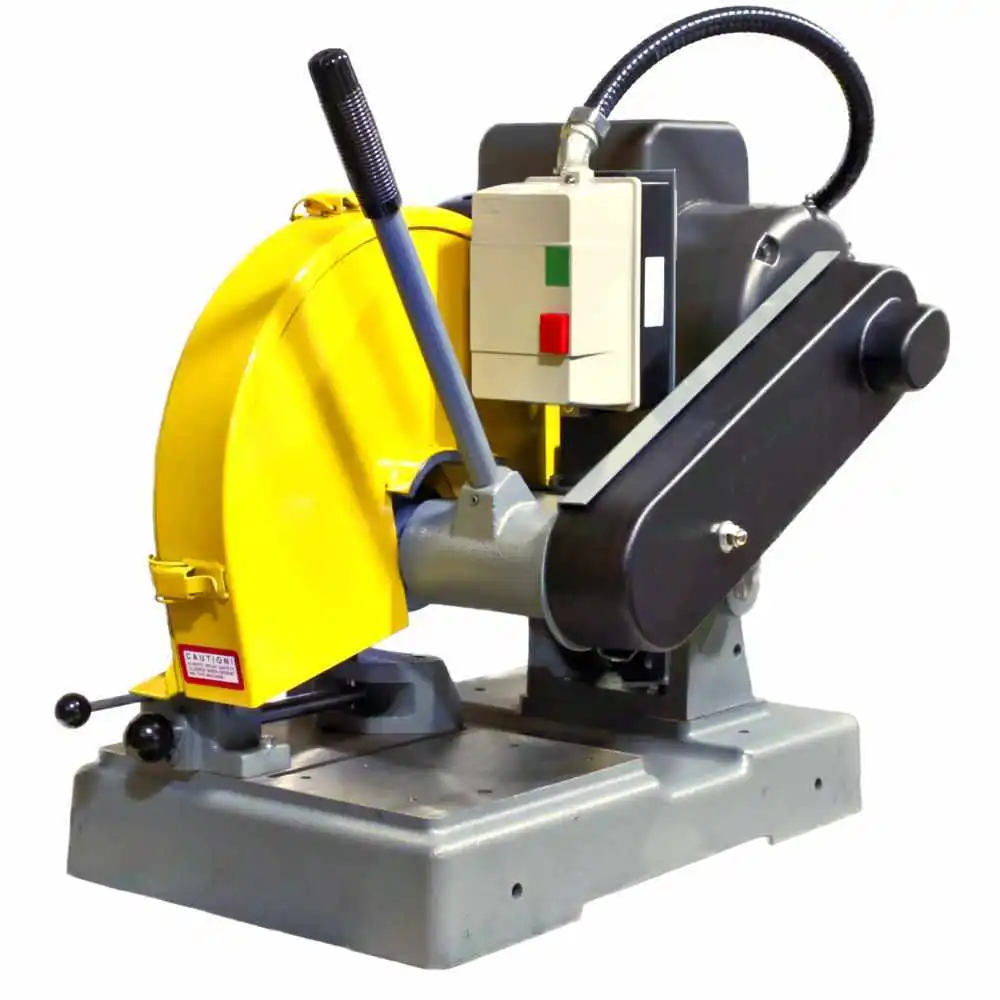

NEW KALAMAZOO INDUSTRIES K12-14B
Overview
Description
K12-14B 14 inch heavy-duty abrasive cutoff saw will cut mild steel effectively up to 2.5″ solid or 3″ pipe along with angle iron, flat stock with the correct abrasive cutoff blade for your material. The K12-14B abrasive cutoff saw comes with a 5HP 1PH and 3PH motor, heavy-duty construction, and a magnetic on/off push button switch.
Specifications
| Type: | Dry | Dry |
|---|---|---|
| Enclosed (Y/N) | No | No |
| RPM | 4400 rpm | 4,400 RPM |
| Dimensions | L 38″ x W 36″ x H 36″. | L 38″ x W 36″ x H 36″. |
| Weight | 250 lbs | 250 lbs |
5 HP, 3 PH 220/440V
OR: TEFC 1 PH 220V only (Single phase model is $2695)
3PH amp draws: 230V 12 amps and 440V 6 amps.
1PH amp draw 19.5 amps.
Cutoff wheel diameter: 14″ (abrasive wheels only)
Extra-heavy cast iron base,
Extra-heavy cast iron trunnion
Extra-heavy cast iron saw arm.
Sealed ball bearings.
Steel-hinged wheel guard.
Magnetic on/off switch.
1″ wheel arbor (1.25 spindle also arbor available).
Spindle RPM: 4400.
Dual V-belt driven.
Replaceable v-belt guard.
Replaceable saw handle.
Replaceable single cam lock vise with front and rear cast-iron vise jaws.
Equipped With
Optional:
KAB14R 14 inch reinforced abrasive cutoff wheel (1 box)
KAB12R 12 inch reinforced abrasive cutoff wheel (1 box)
051-035 14 INCH CHOP SAW V-BELT TENSIONING TOOL
912-015 INDUSTRIAL ABRASIVE CHOP SAW METAL CAM LOCK VISE
431-001 INDUSTRIAL ABRASIVE CUTOFF SAW VISE FRONT JAW
431-002 INDUSTRIAL ABRASIVE CHOP SAW REAR VISE JAW
