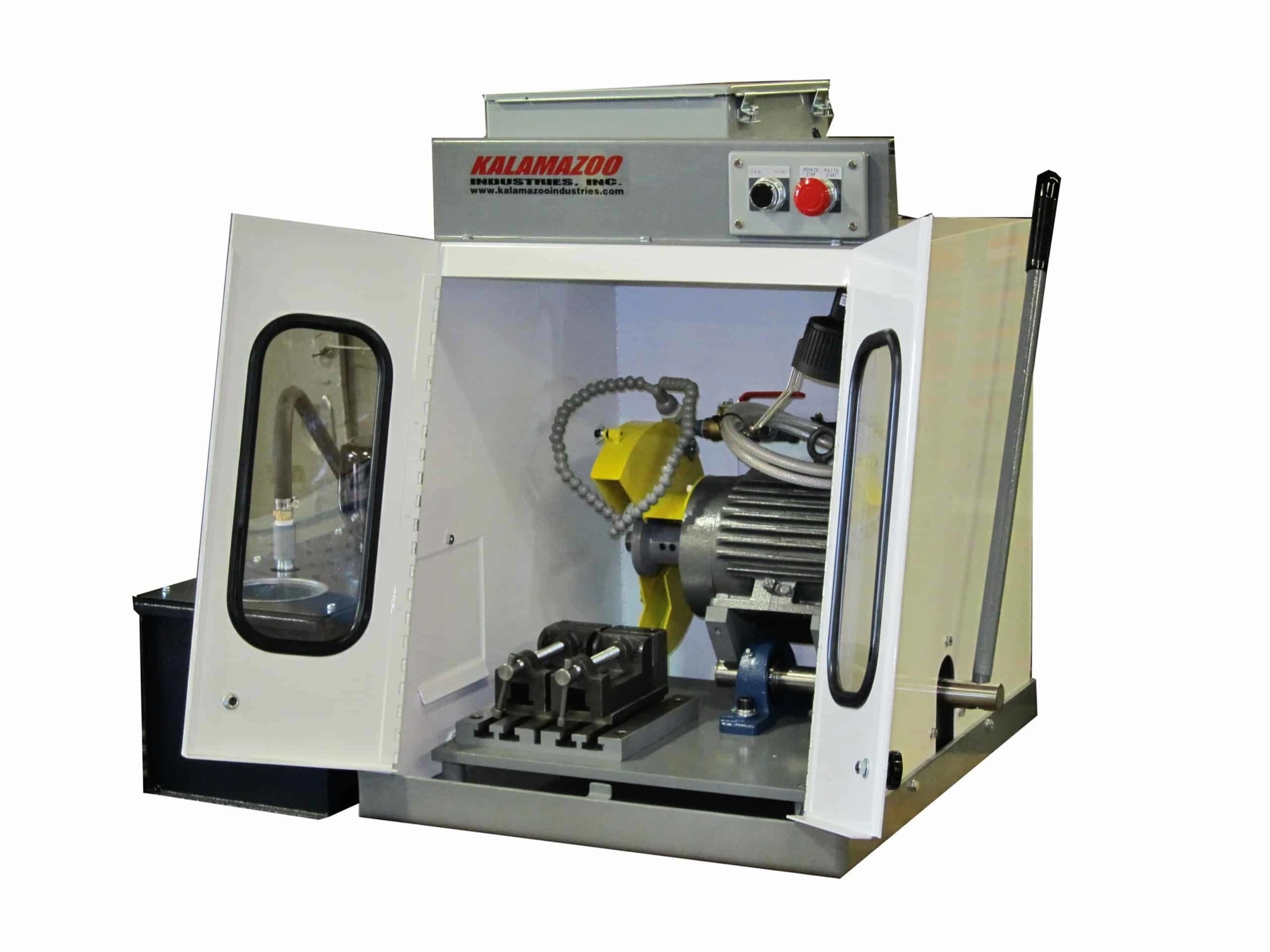

NEW KALAMAZOO INDUSTRIES K10WBT
Overview
Description
K10WBT 10 inch industrial metallurgical saw provides speed and cut quality with the correct cutoff wheels. This 10 inch enclosed wet saw is usable in all-size labs.
Specifications
2HP 3Ph 220 and or 440 volts.
3PH FLA: 220V 5.2 amps and 440V 2.6 amps
Pump FLA 115V 2.4 amps
6 gallon coolant tank & pump.
Machine RPM: 3450
Abrasive saw blade diameter: 10″ cutoff wheel
Magnetic controls.
24V at on/off push/pull buttons.
Two 2-7/16 tool makers vises.
Capacity: 1.5″ solids, 2.5″ pipe.
Internal lite.
All steel construction
Adjustable dual coolant with flare nozzles.
Wash down hose.
5/8″ LH spindle arbor, optional: 1.250″ or 32mm.
T-Slot Table. Slot 9/16″ x 1″ x 5/8″ deep.
Removable 5″ LEFT side access panel for long parts. (Will not allow the bar to pass thru the other side of the saw cabinet).
Capacities: 1.5″ solids, 2.5″ pipe.
Shipping dimensions: L 37″ x W 47″ x H 39″.
Shipping weight without stand: 500 lbs
Shipping weight with stand: 700 lbs
Equipped With
Optional:
292-047 10 INCH METALLURGICAL SAW SPINDLE AND FLANGE (5/8 and 1.25" avail.)
044-032 INDUSTRIAL PILLOW BLOCK BEARING SET
