USED 2021 RITTER R131 USED HORIZONTAL BORING MACHINE

2021 Ritter R131 Used Horizontal Boring Machine

For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click for leasing information
Click for shipping information.
Like new. Replacement cost is approx $10,380. Click request quote for our low, low price.

Description:

Designed for a dedicated and accurate boring center with single, double or triple spindle boring capability. Stile and rail boring set-up features help eliminate costly mistakes, rejected parts and increase production efficiency. The workpiece is held firmly against the table by a pneumatic clamp, and there is full adjustability of the index stops, bed height, and depth of cut.

Standard Features:

Triple Spindle Gear Driven Drill Head

1" Spindle Spacing

7/16-14 Female Threaded Collets (2) L/H (1) R/H

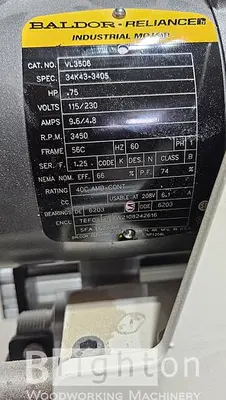

0.75 HP Spindle Drive Motor, TEFC

0-2" Adjustable Boring Depth

(4) Material Positioning Stops

2" Bore Clamping Cylinder

Foot Actuated Boring Cycle

3450 RPM Spindle Speed

6" X 20" Table Area

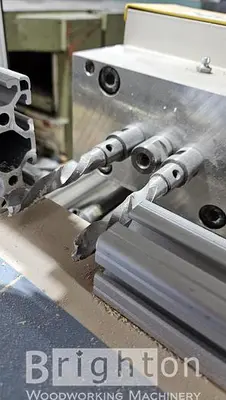

Tooling (2 drills in Picture included)

Technical Data and Specifications:

Electrical: 110/120V, 60Hz, 10A

Air: 2 CFM at 80 – 100 PSI

Work Height: 40"

Footprint: 24" x 24"

Shipping Weight: 381 LBS

Shipping Dimensions: 38” X 38” X 55”

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.

Quality: Very Good
Electrics: 110V / 1 Ph / 60 Hz
