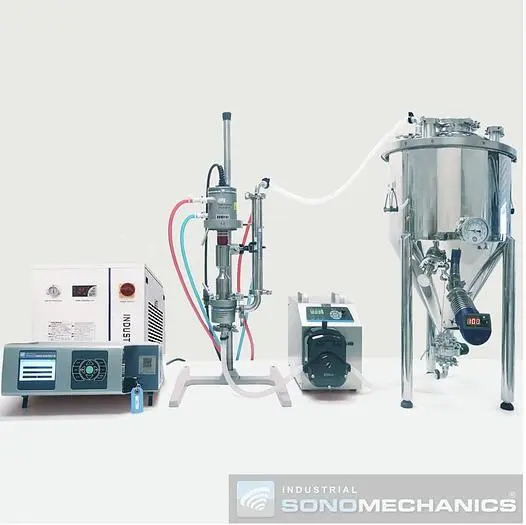

Turn-Key Ultrasonic Industrial Sonomechanics Processing Equipment

Brand new Ultrasonic turn-key system. Used only for 3 runs with vegetable oil to ensure mechanics worked properly, which was a total of less than 3 hours of use.

The package comes with the following items:

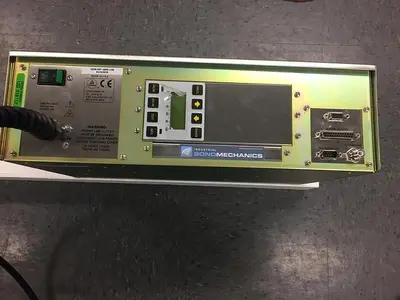

ISP-3000 Generator

3,000 W ultrasonic generator with an automatic frequency correction processor and 20 - 100% amplitude controller
Wired remote ON/OFF switch
Ultrasound cable
Grounding cable
Manual

SWCT-3000
Water-cooled 20 kHz piezoelectric transducer
Transducer support arm with nut
Two quick disconnect to 3/8” hose ID adapters for transducer cooling liquid

HBH or HBHB
BH or HBHB-type ultrasonic Barbell Horn®, output tip diameter - 45 mm

Flow-Through Reactor Chamber
Flow-through reactor chamber with 1“ inlet and outlet sanitary flanged connections
Reactor chamber lid
1" sanitary to 1" hose ID adapter for main liquid line outlet
1" sanitary to 1" hose ID adapter for main liquid line inlet, Two 1” sanitary clamps
Two gaskets for 1” sanitary fittings
Two O-rings for the reactor chamber
Reactor chamber support arm with nut

Heat Exchanger
1.5" sanitary heat exchanger, 4 pipes, SS304
Two 1/2" hose barb to 1/2" female FPT cooling water adapters, SS304
1.5" sanitary 90-degree elbow pipe fitting, SS304
1.5" saniary to 3/4" hose barb 90-degree elbow adapter, SS3904
Two 1.5" sanitary clamps, SS304
Two gaskets for 1.5" sanitary fittings

Support Stand
Heavy-duty support stand with clamp(s) for ISP-3000

Storage/Mixing Tank
1. 25 L Storage/mixing tank
2. 1/2" Ball valve
3. 1/2" Weldless bulkhead
4. 1/2" Silicone tubing with quick disconnect adapter 5. Adjustable mixing eductor arm
6. Sight glass
7. Clamp for mixing eductor arm

Recirculating Chiller
• Cooling capacity: 3150 W
• Reservoir volume: 15 L
• Maximum pumping lift: 12 M • Maximum flow: 13 L/min

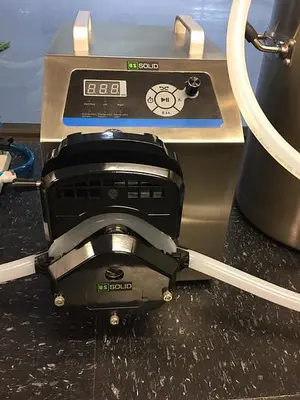

Industrial Peristaltic Pump
• Flow rate: 1.2 - 12,000 ml/min
• Reversible
• Motor speed range: 0.1 - 600 rpm; resolution: 0.01 rpm
• LED display

More info on the manufacturer's website: https://www.sonomechanics.com/3600_w_industrial-scale_processor/
