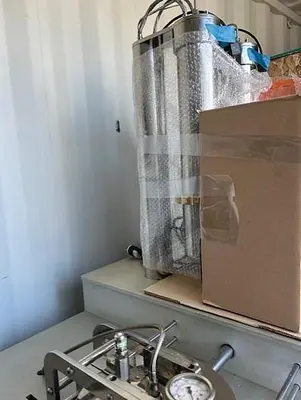

USED 2019 VANGUARD SCIENTIFIC MIDAS XII

Brand new, never used, Supercritical CO2 extractor Vanguard Scientific - MIDAS XII.

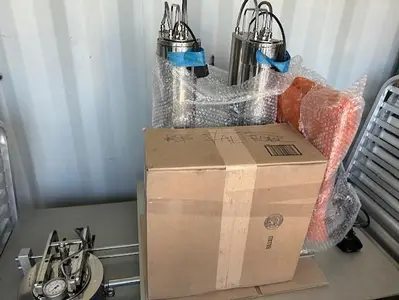

Still on original crate.

TECHNICAL SPECIFICATIONS
​​​​​PHYSICAL

MIDAS XII Dimensions: 53” x 30” x 75” (1590 square inches required)
Weight: 840 Lbs Display: 17” projected capacitance
Display: TFT / LCD touchscreen monitor

​
ELECTRICAL

Device Input: 15Amps Max; 208-240VAC 1-Phase Compressor
Input: 30Amps – 60Amps Max; 208 – 480VAC; 3P

​
EXTRACTION

Loading/ Unloading: Fully automatic – handsfree quick closure system
Loading Capacity: 8 Lbs. fine ground plant material
ASME Certified Pressure: 3000 psi
Max Programmable Pressure: 2700 psi
Operational Temp. Range: 90 -145°F

​
SEPARATION

Separation Vessels: Twin vessels in parallel or in phased sequence
Collection Capacity: 2 x 1 .2 L
Max Operating Pressure: 750 psi

​
PROCESSING POWER

Adjustable Processing Time: 45 – 90 min / Lb
Typical Flow Rate@ SCCO2: 14 oz/min

​
SAFETY

ASME Validated Pressure Vessel: American Society of Mechanical Engineering pressure rated
Redundant Pressure Safety: Three tiered system of mechanical and automated software safety features designed to protect the user, system and product. A unique solution for opening and closing the extraction vessel that dramatically reduces time and labor while increasing overall system safety.
