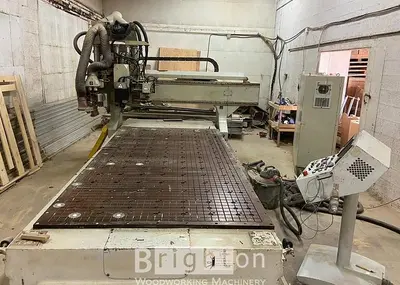

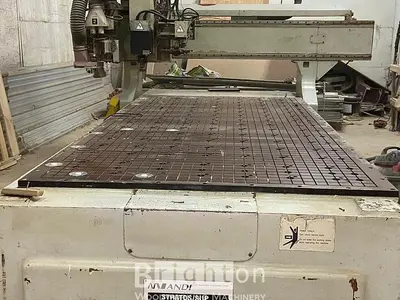

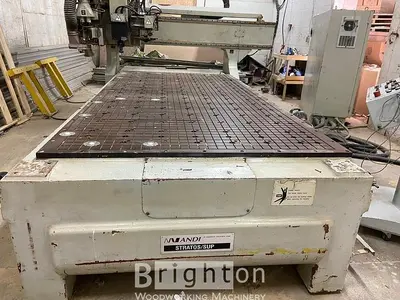

USED 2002 ANDERSON INDUSTRIAL CORP ANDI STRATOS / SUP USED FLAT TABLE CNC MACHINE

Anderson Industrial Corp Andi Stratos / Sup used flat table cnc machine

For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click for leasing information.
Click for shipping information.

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Please verify all details with seller before purchase. This info was taken from a similar machine.

Precise details were not known at time of listing.

Funuc Controller,

Comes with some tools holders,

11 pop up pin positions.

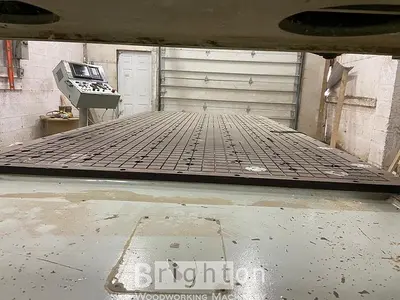

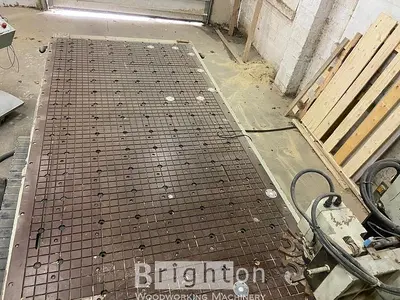

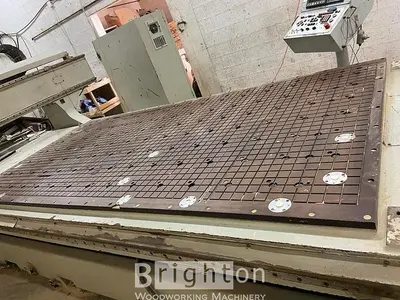

5' x 10' Moving gantry, stationary table design in a front-to-back configuration with a 2-zone phenolic vacuum plenum, and (7) pop-up pins for easy material location.

(1) 10 HP HSK 63 Type ATC spindle with C-axis, variable speed from 1,000 - 18,000 RPM, 8-station tool carousel

(1) 9-Spindle vertical boring block in an equal L-Pattern

One part hold down vacuum.

All axes utilize FANUC AC Servo motors & Servo amplifiers driving precision ball screws, and ride on profile way bearing systems for rapid feed rates up to 1,968 IPM on the X- & Y-axis, & 472 IPM on Z-axis; ball screw & way bearings are serviced by an automatic lubrication system.

ANDI FANUC "21i-M" CNC PC front system with PC & PLC control & moveable touch-off device

Quality: Very Good
Electrics: 220V / 3Ph / 60 Hz
