USED 2004 GIBEN USED BEAM SAW SMART SP75

2004 Giben used beam saw Smart SP75

For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click for leasing information
Click for shipping information.
Click for Electrical information.

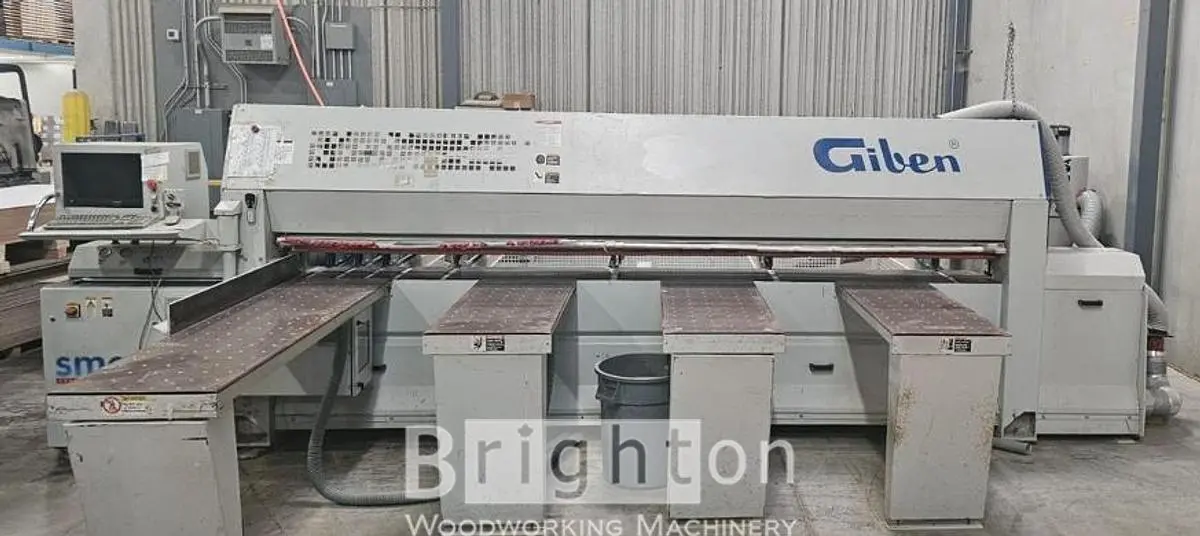

GIBEN - SMART 75 SP: Front-Load, Automatic Panel Saw:

-Specifications, 149" (3,800 mm) Overall cutting length; 131.8" (3,350 mm) pull back 2.95" (75 mm) max. blade projection.15 HP (11 kW) Main & 1.5 HP (1.1 kW) scoring motor; 3,800 RPM main saw blade; 6,000 RPM scoring blade with external adjustment.

- Saw Carriage, Variable saw carriage forward speed: 16 - 164 FPM (5 - 50 MPM); return speed: 197 FPM (60 MPM).Rack & pinion drive; driven by AC brushless Servo motors.

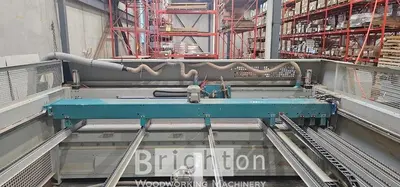

- Pusher FenceElectronically controlled overhead program fence with: (7) Pneumatic gripper clamps; max. clamp opening: 2.56" (65 mm). Variable forward pusher speed: 2-1/2 - 82 FPM (0.8 - 25 MPM); return speed: 131 FPM (40 MPM). Pusher driven on round bar-ways by AC brushless Servo motors.

- Operator & Machine ControlPC Front-End with: Windows "XP" + "Pentium" processor Operating System with: Multitasking & easy programming of very complex cutting patterns.15" CRT Monitor displays: REAL TIME Graphics of cutting dimensions & patterns; program cutting list; manual cuts; diagnostic & online help.Data input by adjustable keypad pendant; standard industrial: Keyboard, mouse & CD-ROM drive; direct downloading from office PC is possible."MOELLER" PLC Guarantees full management of all machine movements (pressure beam; saw carriage; side aligner pusher positioning, etc.).The numerical control: Adjusts the optimum saw blade projection for the stack of panels being cut; sets the most appropriate cutting speed in relation to the stack itself (when necessary to the width of trim cut, too.)

- Rear of Machine(9) Rear support rails with: 80 mm Dia. roller modules; rear of machine enclosed for safety. -- Front of MachineAutomatic side/crosscut aligning device with: 2.4" - 48" (60 - 1,220 mm) stroke; 90" (2,300 mm) long crosscut fence (front-to-back).(1) Front-mounted air floatation table: 20" x 78" (510 x 2,377 mm) & (3) front-mounted air floatation tables: 20" x 60" (510 x 1,524 mm).

- Complete with:G-Lock "Quick Change" saw blade system.

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.

Quality: Very Good
Electrics: V / Ph / 60 Hz
