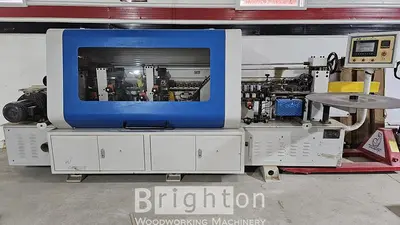

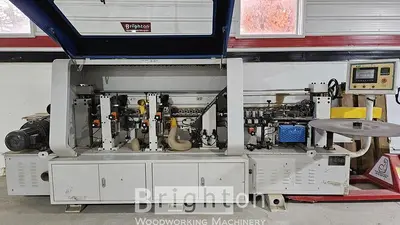

USED 2009 BOSS KDT 360 USED EDGEBANDER

*REDUCED PRICE* 2009 Boss KDT 360 Used Edgebander
Power: 8kW
Panel Thickness: 10~50 mm
Edge Thickness: 0.4~3 mm
Dimensions: 4069 x 1680 x 1000 mm

For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click for leasing information.
Click for shipping information.
Touch screen control panel

• Large 3” diameter dust extraction connection

• Large window in safety hood

• Glue Pot “Easy Clean” Teflon coated

• Coil Feed

• Pneumatic gate to prevent feeding panels to close

to one another

• Pneumatic Guillotine • Mechanical digital readouts for all adjustments

• Four pneumatic side pressure rollers • European high frequency motors on end trims and

milling units

• End trimming station, pneumatic angel adjustment,

2 motors (German made linear guide ways)

• Top & bottom scraping units, pneumatic blowers,

large diameter tracing wheels

• Pneumatic switch to change angle

• Top & bottom milling units tillable to 45 deg

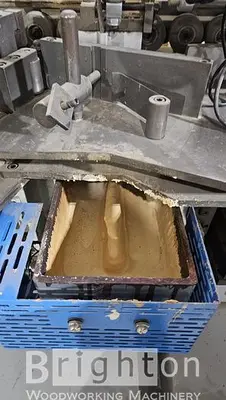

• Box to collect PVC shavings

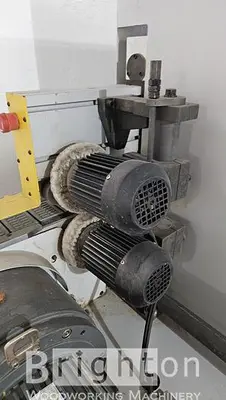

• Buffing units with cloth wheels to clean glue line

• Fluorescent light inside safety hood • Emergency stop button on out feed end

• Feed jog button for easy set up • CE approved CSA electrical components

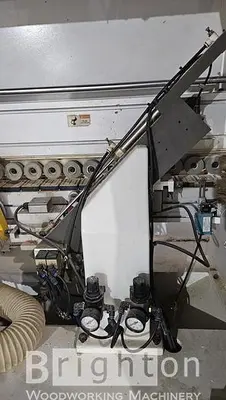

• Pneumatic shut off gate on glue roller • Air regulator, filter, and lubricator

• Front and rear tape overlap adjustment from

control panel

• Machine length 4070mm, weight 1620kg

• Feed speed 12-20m/min

• Telescoping panel support for large size panels • Extruded aluminum top pressure beam

• Heavy duty feed chain with replaceable pads • Total power requirement 8kw

Stations as follows:

Hot melt glue pot, Guillotine, pressure section, double end trim motors, top and bottom trimming, top and bottom scrapping, buffers.

Power: 8kw

Panel Thickness: 10~60mm

Panel Width: >= 80mm

Edge Thickness: 0.4~3mm

Overall Dimensions: 4069x1680x1000mm

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.

Quality: Very Good
Electrics: 600V / 3 Ph / 60 Hz
