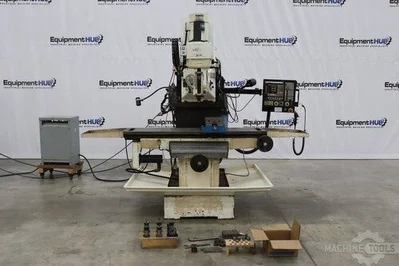

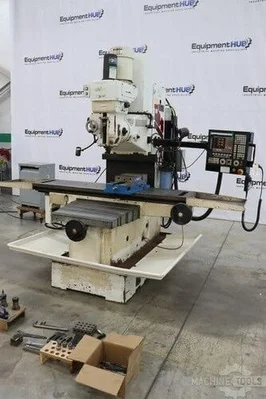

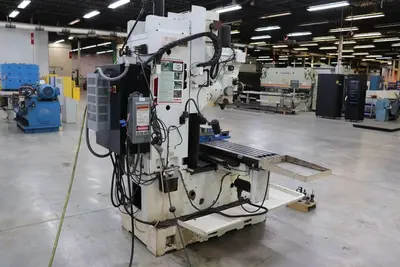

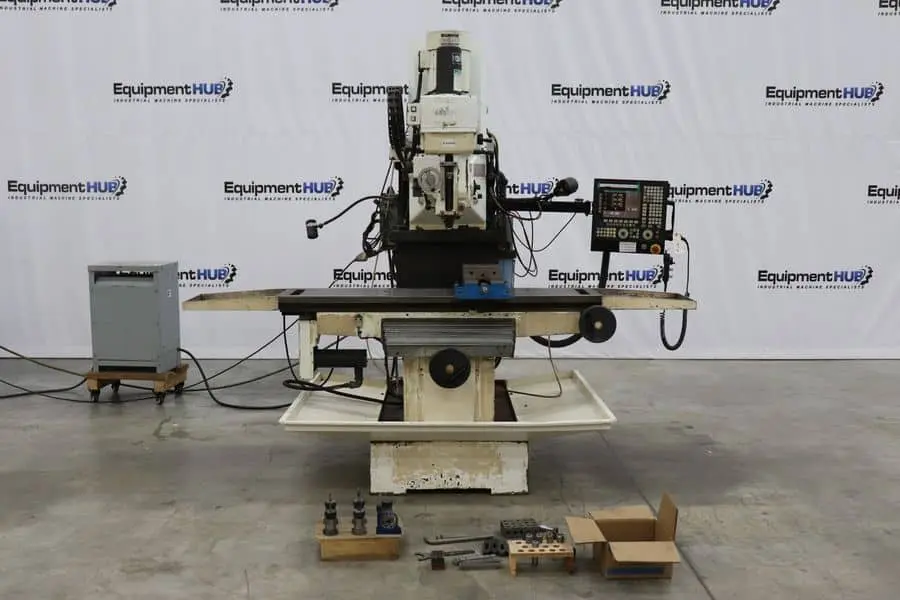

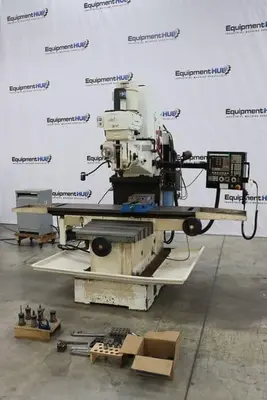

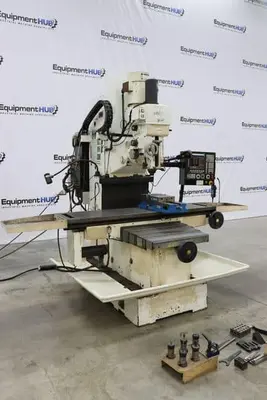

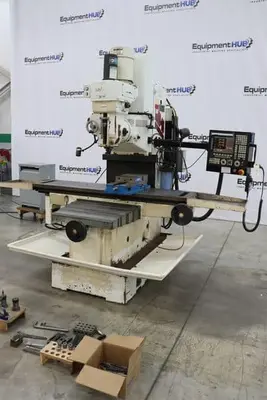

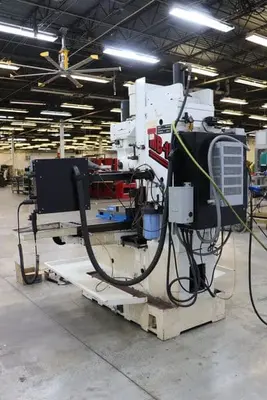

Fryer MB-15 15" x 67" CNC Bed Mill
| Table-W | 16" | 406.4 mm |
| Table-L | 67" | 1,701.8 mm |
| Travel-Long | 50" | 1,270 mm |
| Travel-Cross | 25" | 635 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | 40 | 40 |
General Info
Stock #: 120250068
Location: Decatur, GA
Brand: Fryer
Model: MB-15
Serial #: 15074
Approx. Shipping Weight: 8,000 Lbs.
Approx. Shipping Dimensions: 110" L x 88" W x 100" H
Skidding Fee: Skidding unavailable.
Specifications
Table Size: 67" x 15.5"
X-Axis Travel: 50"
Y-Axis Travel: 25"
Z-Axis Travel: 24"
Power Quill Travel: 5.5"
Spindle Taper: Cat 40
Spindle Speeds: 60 - 4,500
Rapid Traverse: 200 IPM
Table Load: 1,950 Lbs.
Spindle Drive: 7.5 HP
Electrical: 220V 3PH
Equipped With

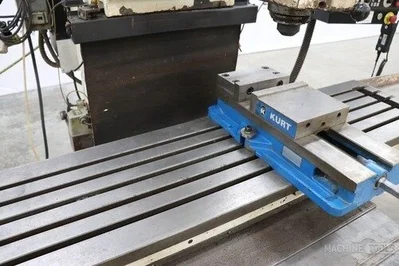

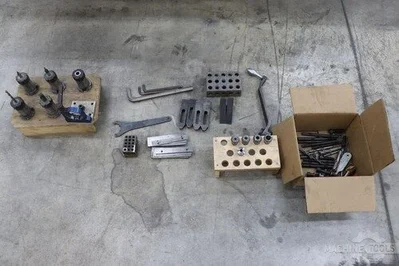

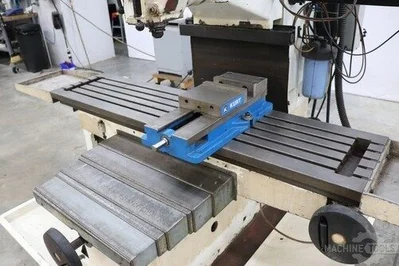

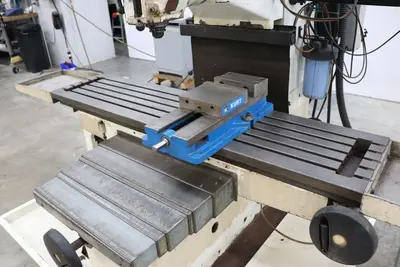

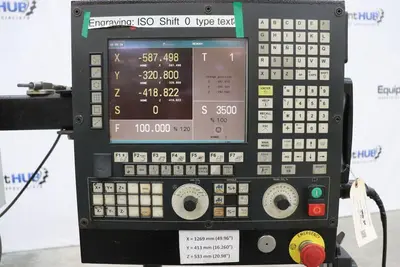

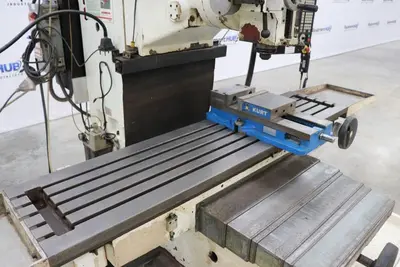

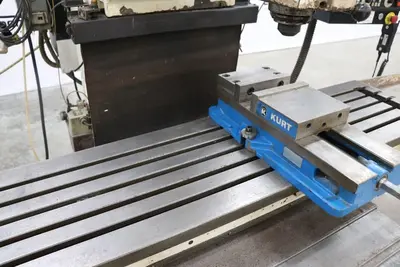

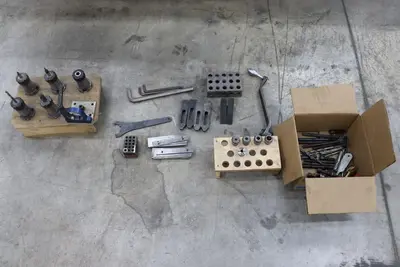

Fagor CNC Controller, 6 Cat 40 Tool Holders, Mountable Tool Change Station Kurt 810 Vice, Tooling/Workholding
Additional Info
The Fryer CNC Mill can be demoed upon request. Check out the video on the listing to see it in operation.
