USED 2001 FAT HACO TUR-630MN-120

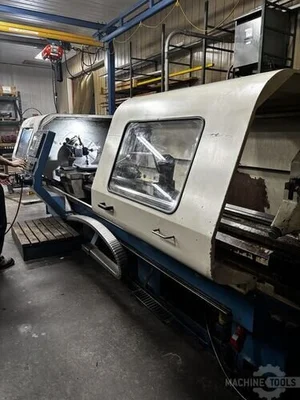

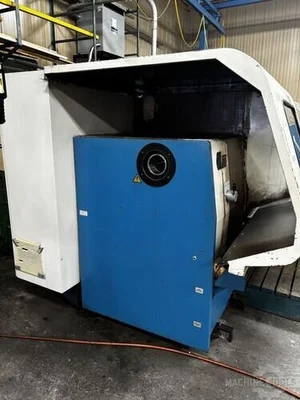

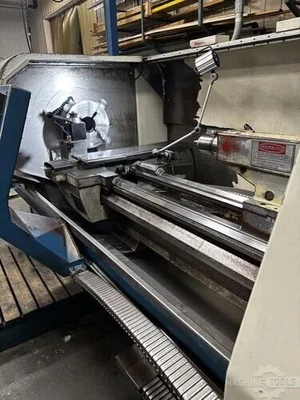

FAT HACO TUR-630MN-120 CNC Lathe- 120"

General Info

Stock #: 181260001
Location: Norfolk, NY
Brand: FAT HACO
Model: TUR-630MN-120
Year: 2001
Approx. Shipping Weight: Weight: 2,000 lbs
Approx. Shipping Dimensions: L: 193", W: 85", H: 70"
Loading Fee: Rigging Required

Specifications

Swing Over Bed: 24.8" (630 mm)
Swing Over Cross Slide: 14.5-14.6" (370 mm)
Distance Between Centers: 120" (approximately 3,000 mm)
Bar Capacity: Approximately: 4" (100?103 mm)
Spindle Speed Range: 2-2,500 RPM
Main Motor Power: 25 HP
Max Weight Between Centers:: Up to 4,400-6,600 lbs (with steady rests)
Tool Post: 4-position automatic
Rapid Traverse X: Up to 315 IPM
Rapid Traverse Z: Up to 315 IPM

Equipped With

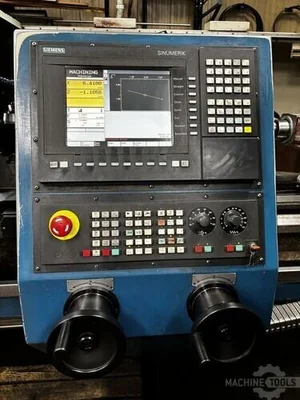

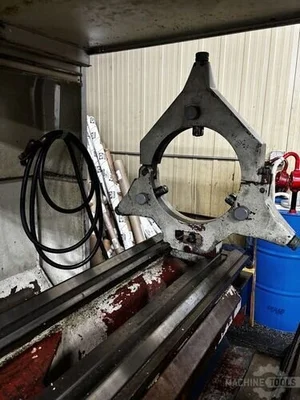

Siemens Sinumerik 510 "Manual Plus" control, hardened TRI-V ways, heavy cast iron, manual tailstock, 2 steady rest Included

Additional Info
Inspection Upon Request
