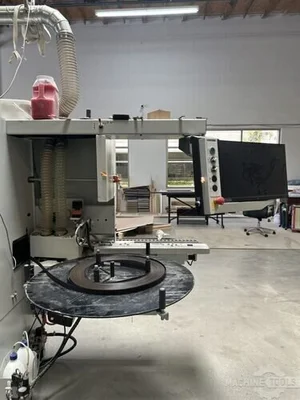

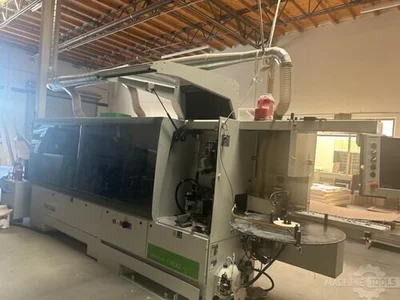

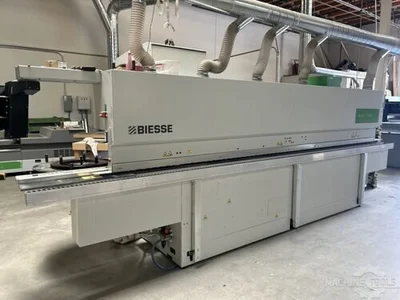

USED 2023 BIESSE AKRON 1330

Biesse Akron 1330 CNC Edge Bander (2023)

General Info

Stock #: 111260002
Location: CA
Brand: Biesse
Model: Akron 1330
Year: 2023
Loading Fee: Rigging Required

Specifications

Panel Height: 10 - 60 mm
Edge Height: 14 - 64 mm
Edge Thickness (Rolls): .4 - 3 mm
Edge Thickness (Strips): .4 - 5 mm
Panel Overhand from Track: 25 mm
Panel Length: 150 - 3200 mm
Track Feed Speed: 12 m/min
Chain Feed Speed: 12 m/min
Panel Gap: 350 - 650 mm
Pneumatic Connection: 7 Bar
Glue Tank Capacity: 2 Kg
Glue Tank Warm-Up Time (50% Full): 10 min

Equipped With
Touchscreen-control panel for direct programming, administration and display of the adhesive temperature on the glue roller and in the container, Air Force System for invisible edge banding (zero joint). AKRON 1330 is available in the configurations AKRON 1330-A, AKRON 1330-B and AKRON 1330-C. Units in all versions include jointing cutter system (optionally), Equipment AutoSet for an automatic centering of the tools in relation to the panel, gluing unit for automatic installment of rolling and stripe edges (0,4 - 5 mm), cutting unit, FlexSystem for automatic setup of the edge protrusion, copy system with tracing for a processing without leaving stripes especially for high gloss surfaces, cutting unit DESMO, radius-scraper unit (optional), gluing scraper unit (optional), brushes (optional). Further possible units in the different configurations include precision milling, rounding unit, groove unit, trimming unit (optional).
