USED 2010 ALESA MONTI MMC-TG35
Overview
Description
Machine is in Excellent Condition & Ready For Inspection.
Specifications
| Spindle Size | 5.99" | 152.15 mm |
|---|---|---|
| X-Horiz Tvl of Col | 475" | 12,065 mm |
| Y-Vert Tvl of Head | 128" | 3,251.2 mm |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 98.5" | 2,501.9 mm |
| Table-L | 118" | 2,997.2 mm |
| Z-Spdl Tvl | 19.7" | 500.38 mm |
| Control | CNC (Heidenhein iTNC 530) | CNC (Heidenhein iTNC 530) |
| Dimensions | 725”L x 441”W x ”H | 725”L x 441”W x ”H |
| Weight | 115,000 Lbs | 115,000 Lbs |
Specifications:
Model - MMC-TG35
Year - 2010
Spindle Diameter - 5.99”
Cross Travel (X Axis) - 475”
Vertical Travel (Y Axis) - 128”
Spindle Travel (W Axis) - 19.7”
Spindle Ram Travel (Z Axis) - 39.6”
Rotary Table Travel (C Axis) - 79.5”
Rotary Table Rotation (B Axis) - 360°
Automatic Tool Changer - 30
Rotary Table Size - 98.5” x 118”

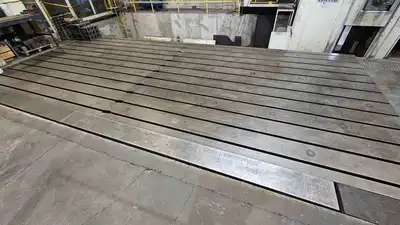

Floor Plate Dimension (1) - 165” x 142”
Floor Plate Dimension (2) - 165” x 142”
Spindle Taper - CAT 50
Max Spindle Speed - 2500 RPM
Control - Heidenhain
Electrics - 400V/3PH/60HZ
Made In - Italy
Approximate Weight - 115,000 LBS
Approximate Overall Dimension - 725”L x 441”W x ”H
Equipped With:

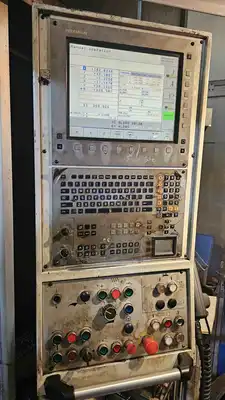

Heidenhain iTNC 530 6 Axis CNC Control

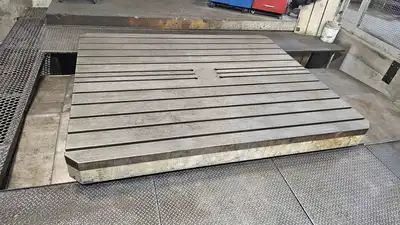

Heavy Duty CNC Rotary Table
Automatic Tool Changer
Two Floor Plates
Coolant System
Hydraulic System
Hand Pendant
Chip Conveyor
Manual Books
