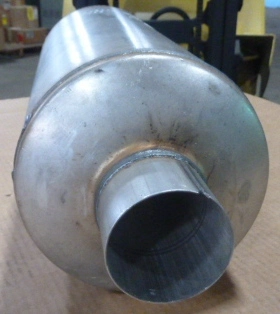

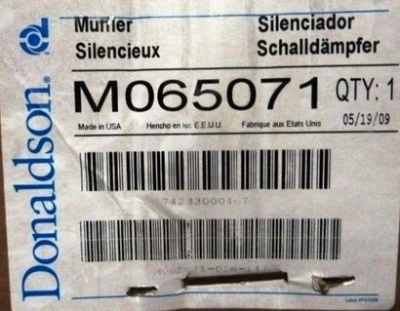

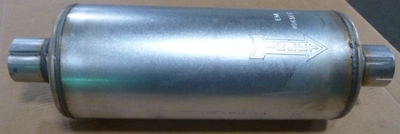

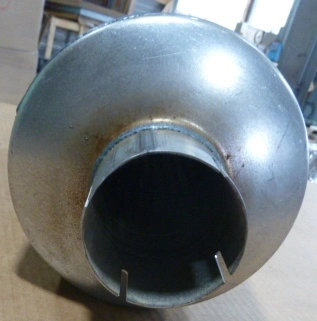

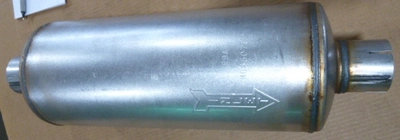

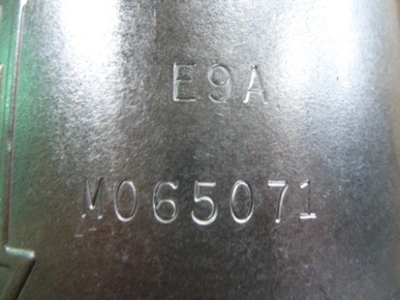

MODEL NUMBER: M065071
Product Description
Exhaust Mufflers Product Attributes
A - Inlet Diameter (Inches): 2.5
B - Body Diameter (Inches): 6.62
D - Overall Length (Inches): 22
E - Outlet Diameter (Inches): 2.63 OD
Rated Flow LR (CFM): 456
Rated Flow MR (CFM): 645
Rated Flow HR (CFM): 790
Back Press LR (In Hg): 1
Back Press MR (In Hg): 2
Back Press HR (In Hg): 3
Attenuation (dBA): 6-12
Product Type Description: Muffler, Round, Style 1
Primary Application: OFF ROAD APPLICATIONS
Product Group: E
Country of Origin: CN (China)
Document Control Number: 3980
Gross Length in Inches: 25
Gross Height in Inches: 7.2
Gross Weight in Pounds: 8.65
Document Control Date: 8
Gross Width in Inches: 66
Pieces Per Pallet: 66
F.O.B. Cincinnati, Ohio 45223
SPECIFICATIONS SUBJECT TO VERIFICATION
