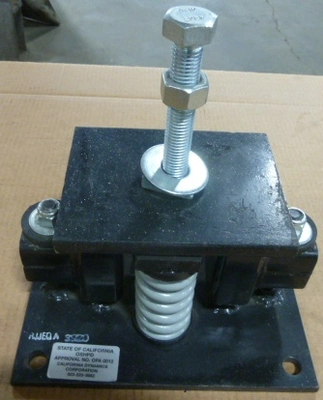

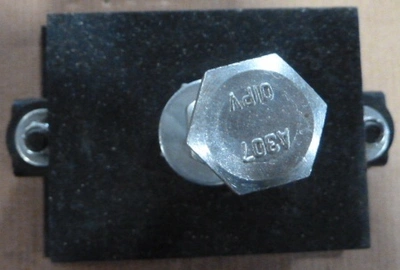

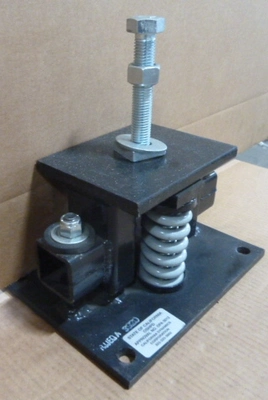

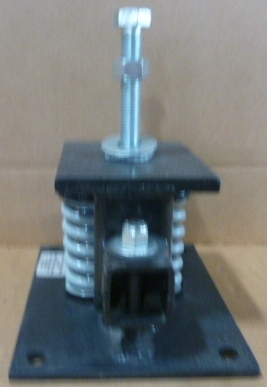

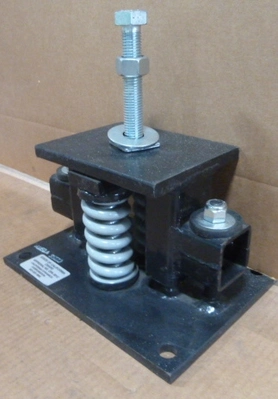

Spring Isolation Mount
Model: RJJEQA3920
Max. Load (lbs.): 3920'
Max. Defl.(in.): .78
Spring Rate (lbs./in.): 5030
Length: 10"
Width: 7-1/2"
Oper. Height, Approx: 6"
See Attachment for Drawing
Specifications Subject to Verification by Purchaser
F.O.B- Cincinnati, OH 45223
