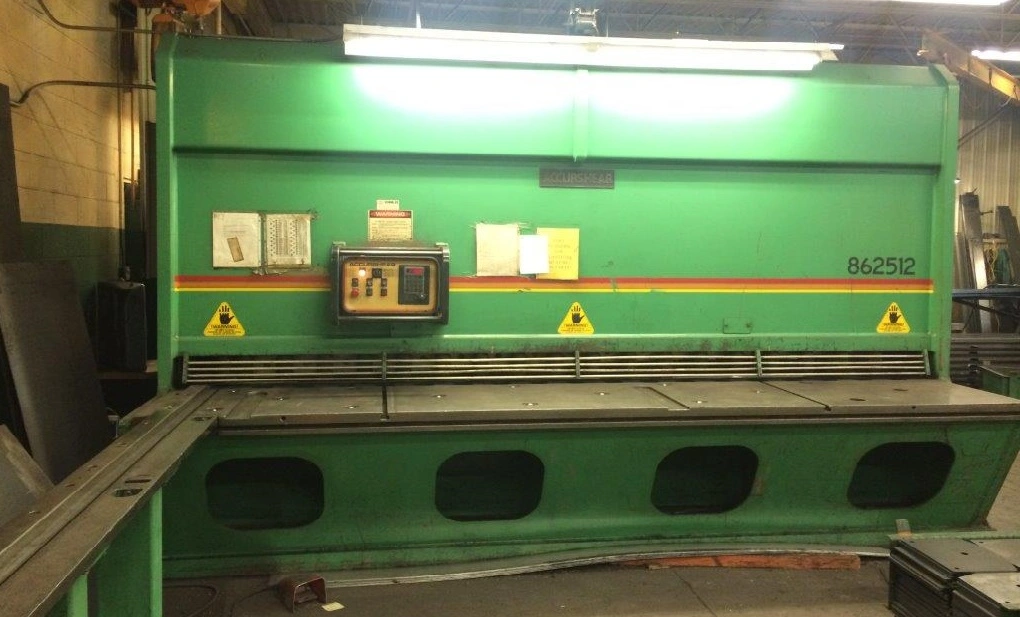

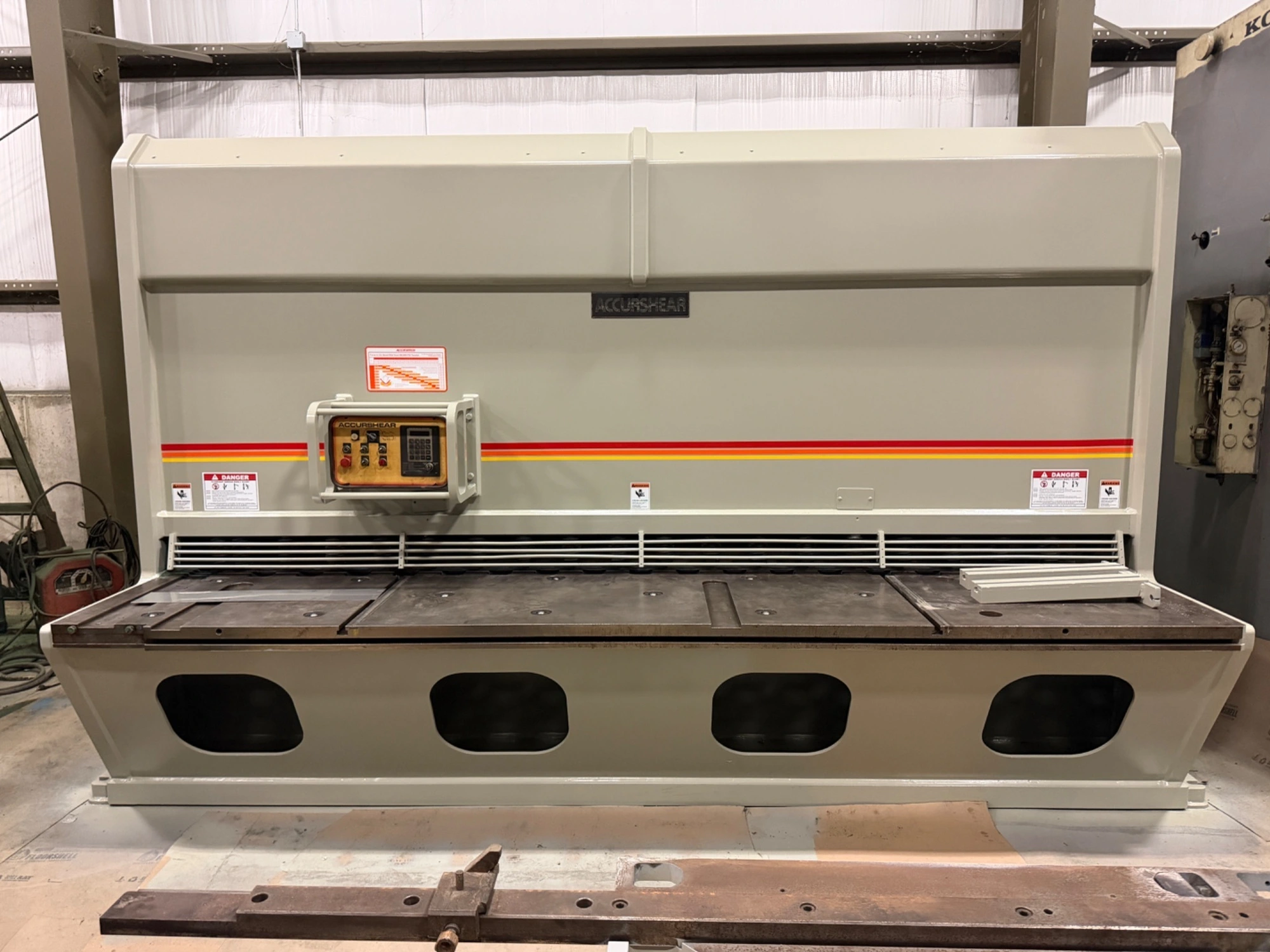

5/8" x 12' Shear. 12/32 SPM, 50HP motor. Has 19 hold downs. Equipped with 10' squaring arm, ball transfers in squaring arm and table, 48" back gauge w/ automatic swing up at full extension.
| Max Thickness | 0.625" | 15.875 mm |
| Length of Blade | 12' | 3.7 m |
| Hyd/Mech | Hyd | Hyd |
| Back Gauges | 48" | 1,219.2 mm |
| Power | 50 hp | 37.3 kW |
| SPM | 32 strokes/min. | 32 strokes/min. |
| Dimensions | 177" L-R x 107" F-B x 105" H | 177" L-R x 107" F-B x 105" H |
| Weight | 49,000 Lbs | 49,000 Lbs |
Capacity: 5/8"
Length of Bed: 144"
Knife Size: 1-1/8" x 5" x 148"
Number of Hold Downs: 19
Hold Down Tonnage: 38
Full Stroke: 12 SPM
Short Stroke: 32 SPM
Main Motor: 50 HP
Weight: 49,000 Lbs Approx.
Dimensions: 177" L-R x 107" F-B x 105" H
Ball Transfers in Table
10' Left Hand Squaring Arm
Ball Transfers in Squaring Arm
Hand Slots in Table
Backgauge Control
48" Backgauge Travel w/automatic Swing up Backstop at Full Extension
4 Edge Blades Top & Bottom
