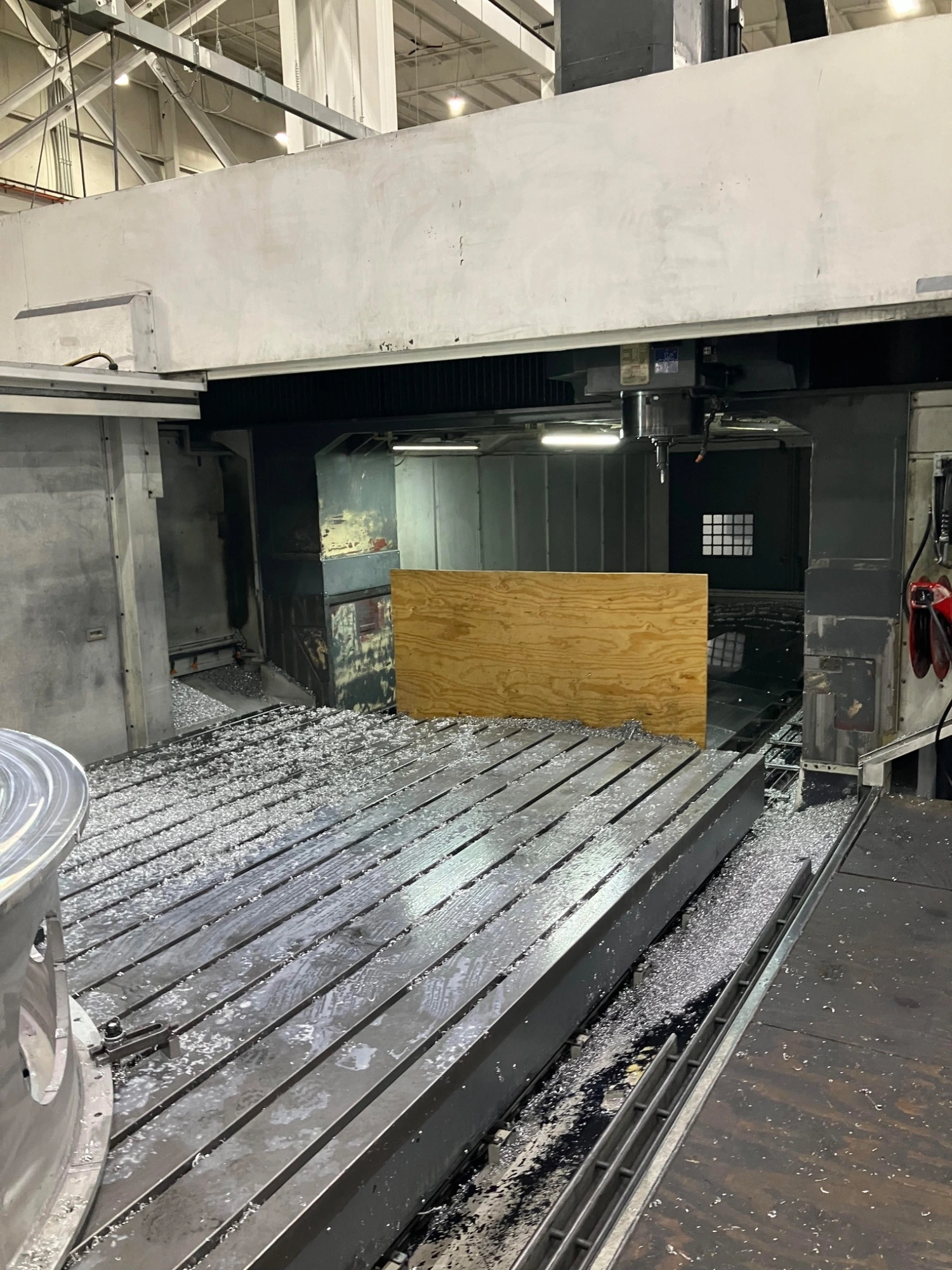

YCM DCV 6030BF CNC, a 2012 model, offers large capacity and 5-face machining as a VMC gantry/bridge type. Ideal for complex projects demanding precision and versatility. Perfect for enhancing your production capabilities.
| Number Of Tables / Pallets | 1 | 1 |
| Table Size - L | 236.2" | 5,999.5 mm |
| Table Size - W | 118.1" | 2,999.7 mm |
| Weight on Table | 55,110 lb | 24,997.5 kg |
| Distance Between Columns | 122" | 3,098.8 mm |
| Spindle Nose to Table Top | 10.63" - 50.63" | 10.63" - 50.63" |
| X - Axis Travel | 220" | 5,588 mm |
| Y - Axis Travel | 120" | 3,048 mm |
| Z - Axis Travel | 40" | 1,016 mm |
| Rapid Traverse Rate - X | 394 in/min. | 10 m/min. |
| Rapid Traverse Rate - Y | 394 ipm | |
| Rapid Traverse Rate - Z | 394 ipm | |
| Spindle Speed | 6,000 RPM | 6,000 RPM |
| Spindle Taper | CT #50 | CT #50 |
| Number Of Gear Ranges | 2 | 2 |
| Automatic Tool Changer | 60 | 60 |
| Machine Weight | 153,000 lb | 69,399.7 kg |
| Weight | 153000.00 | 153000.00 |
FANUC 200FB CNC CONTROL
HIGH POWER HIGH TORQUE OUTPUT SPINDLE
TOP COVER
DATA SERVER 2GB
HIGH SPEED SKIP FUNCTION
TRANSFORMER
HEIDENHAIN SCALE FEEDBACK X,Y,Z AXIS
300 PSI COOLANT THRU SPINDLE
90 DEGREE ANGLE HEAD
AUTO HEAD CHANGING (AHC)
MARPOSS TOOL GAUGE MEASUREMENT
RENISHAW TOUCH PROBE
CHIP CONVEYOR
SPINDLE CHILLER
