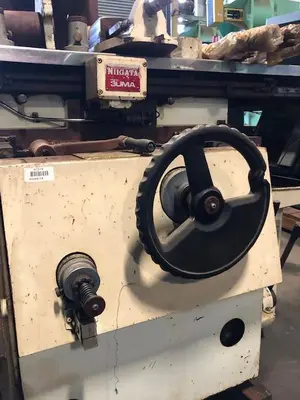

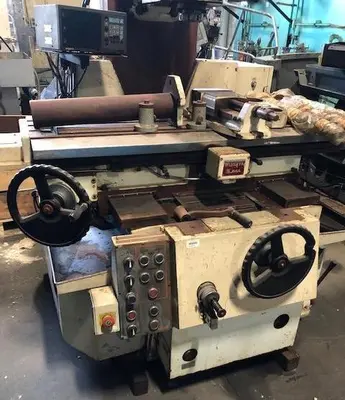

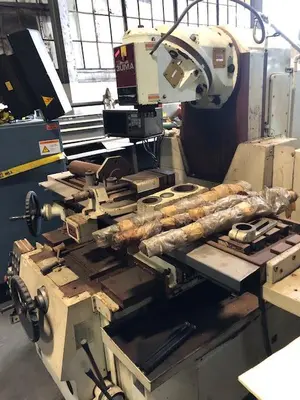

USED 1987 NIIGATA 3UMA

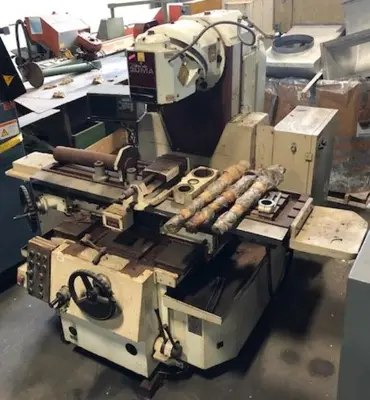

NIIGATA BED TYPE UNIVERSAL MILLING MACHINE

MODEL:  3UMA

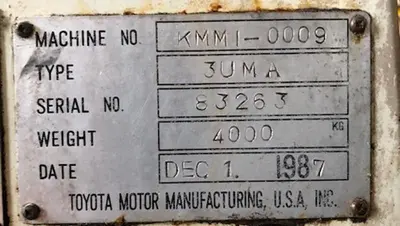

SERIAL NUMBER: 83263

"This machine is a bed type universal milling machine which has a double swiveling spindle head. Because of its double swiveling spindle head it can be used as a horizontal or vertical milling machine."

GENERAL SPECIFICATIONS

Table Size: 15" x 63"
Longitudinal Table Travel: 39-3/8"
Cross Travel: 16-1/2"
Distance From Table To Horizontal Spindle Center w/Overarm: 2" to 17-3/4"
Distance From Table To Horizontal Spindle Center w/o Overarm: 16" to 32"
Distance From Table To Vertical Spindle Nose: 2-3/4" to 18-1/2"
Number Of Feeds: 9
Feed Range, Longitudinal and Cross: 3/4" to 32" IPM
Rapid Traverse, Longitudinal and Cross: 120" IPM
Maximum Table Load: 1500 Lbs.
Spindle Taper: No. 50
Spindle Speeds: (16) 45 - 1400 RPM
Vertical Travel Of Column: 15-3/4"
Column Feeds: (9) 3/16" to 8" IPM
Rapid Traverse, Vertical: 30" IPM
Distance From Column To Vertical Spindle Center:  18-1/2"
Distance From Column To Horizontal Spindle Nose: 17-3/4"

EQUIPPED WITH

15 HP Spindle Motor
Automatic Table Cycle

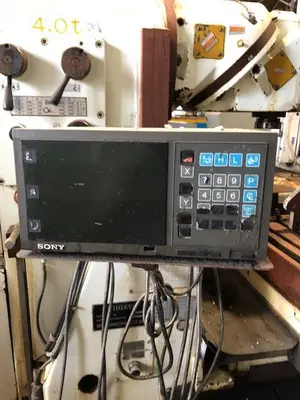

Sony Digital Readout
Coolant System
Automatic Lubrication
Arbor Support and Arbor
Chip Pans
Miscellaneous Tooling

Approximate Weight: 9500 Lbs.

F.O.B. Cincinnati, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
