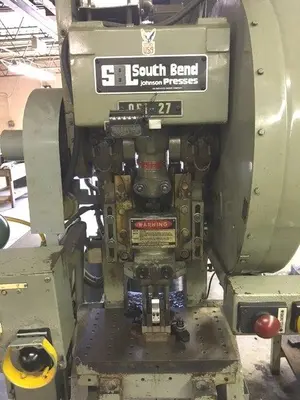

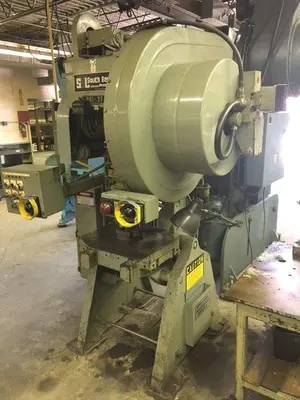

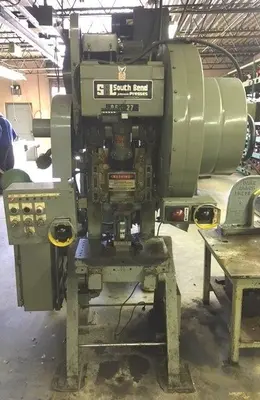

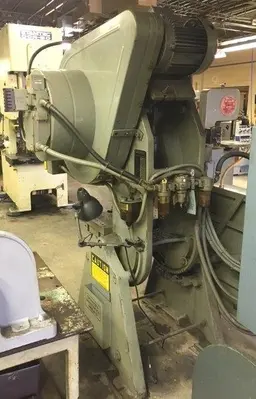

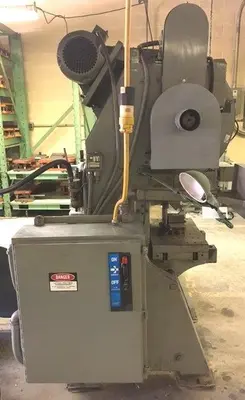

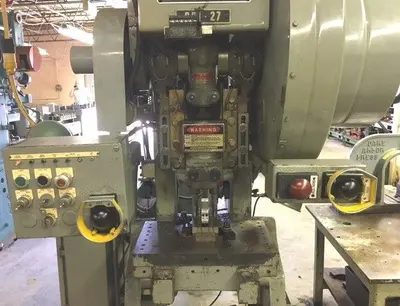

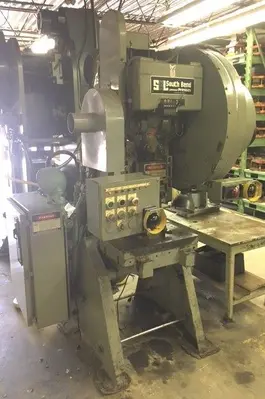

USED 1983 SOUTH BEND 27-FW-AC

SOUTH BEND-JOHNSON O.B.I. PRESS

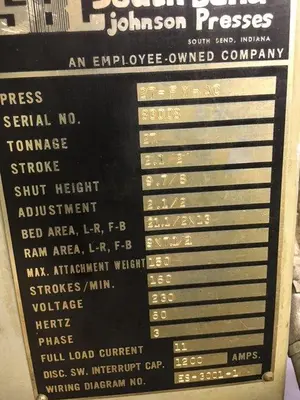

MODEL: 27-FW-AC
SERIAL NUMBER: 83008    Year: 1983

GENERAL SPECIFICATIONS

Flywheel Type
Stroke: 2-1/2"
Ram Adjustment: 2-1/2"
Shut Height: 9-7/8"
Strokes Per Minute: 160
Bed Area: 21-1/2" x 13"
Bed Opening: 10-1/2" x 5-1/2"
Bolster Plate Size: 21-1/2" x 13" x 2"
Punch Shank Hole Diameter: 1-9/16"
Opening Thru Back: 10-1/2"

EQUIPPED WITH

3 HP Motor, 230/440/60/3
Air Clutch and Brake
One Shot Lube System

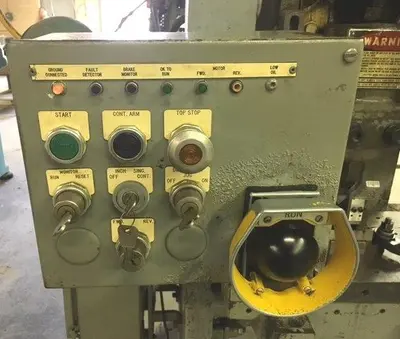

Dual Palm Button Operation
Inch, Single , Continuous Stroke
Emergency Stop, Top Stop
Bolster Plate: 2" Thick

Approximate Weight: 4000 Lbs.

F.O.B. Holland, Ohio

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
