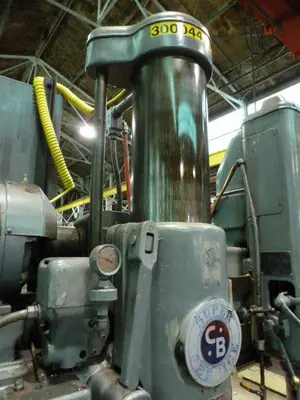

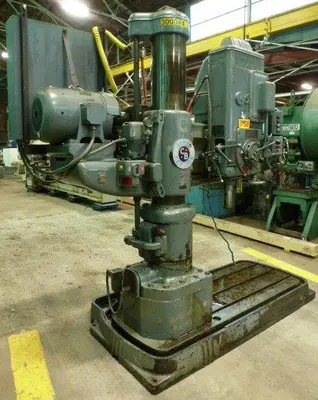

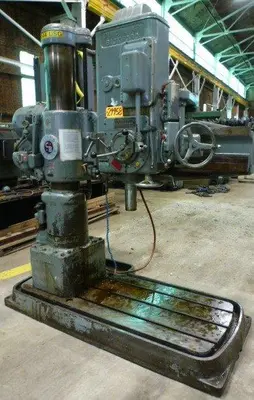

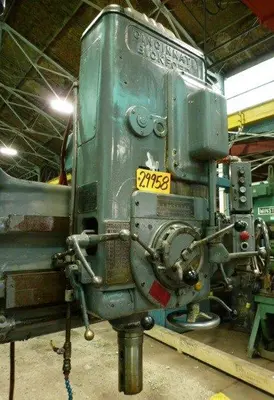

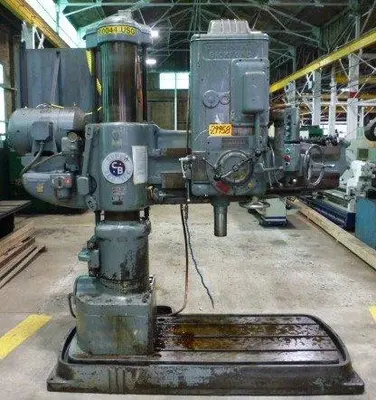

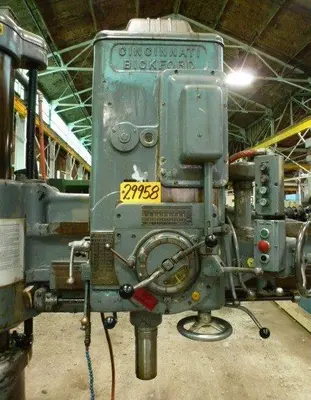

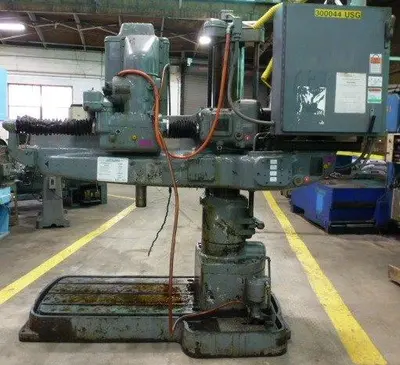

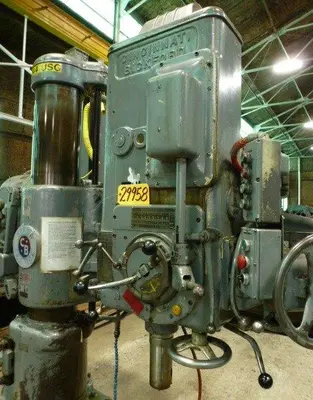

4' x 11" CINTI-BICKFORD, 14-1500 RPM, 5 M.T., Extra Height, 7-1/2 HP, Nice

CINCINNATI BICKFORD RADIAL DRILL

MODEL: Super Service

SERIAL NUMBER: 2E-717

GENERAL SPECIFICATIONS

Arm Length: 4'

Column Diameter: 11"

Drills In Plane Of Base To Center Of Circle: 8'

Distance From Center Of Column To Face Of Column: 9-1/8"

Minimum Distance Face Of Column To Spindle: 12-1/8"

Horizontal Traverse Of Head On Arm: 33-3/8"

Vertical Traverse Of Arm On Column: 25"

Spindle Speeds: (36) 14 to 1500 RPM

Spindle Feeds: (18) .004 to .125 IPR

Tap Leads: (6) 8 to 27 TPI

Spindle Stroke: 16"

Spindle Taper: No. 5 M.T.

Working Surface Of Base: 59" x 36"

EQUIPPED WITH

7-1/2 HP Motor

12" Riser Block For Extra Height Capacity

Power Column Clamping

Power Elevation

Coolant

Approximate Weight: 11,500 Lbs.

F.O.B. Cincinnati. Ohio 45223

ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
