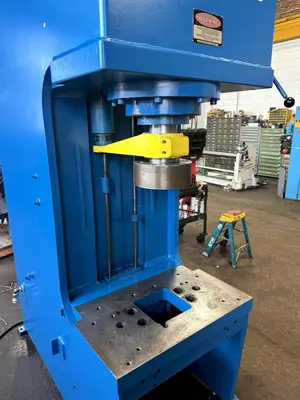

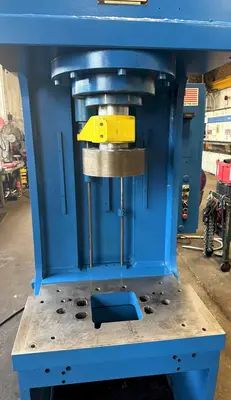

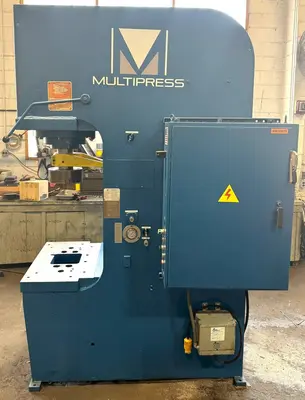

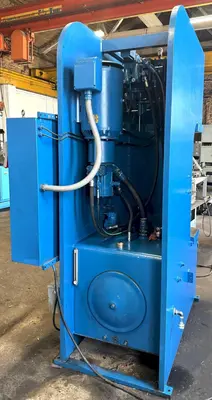

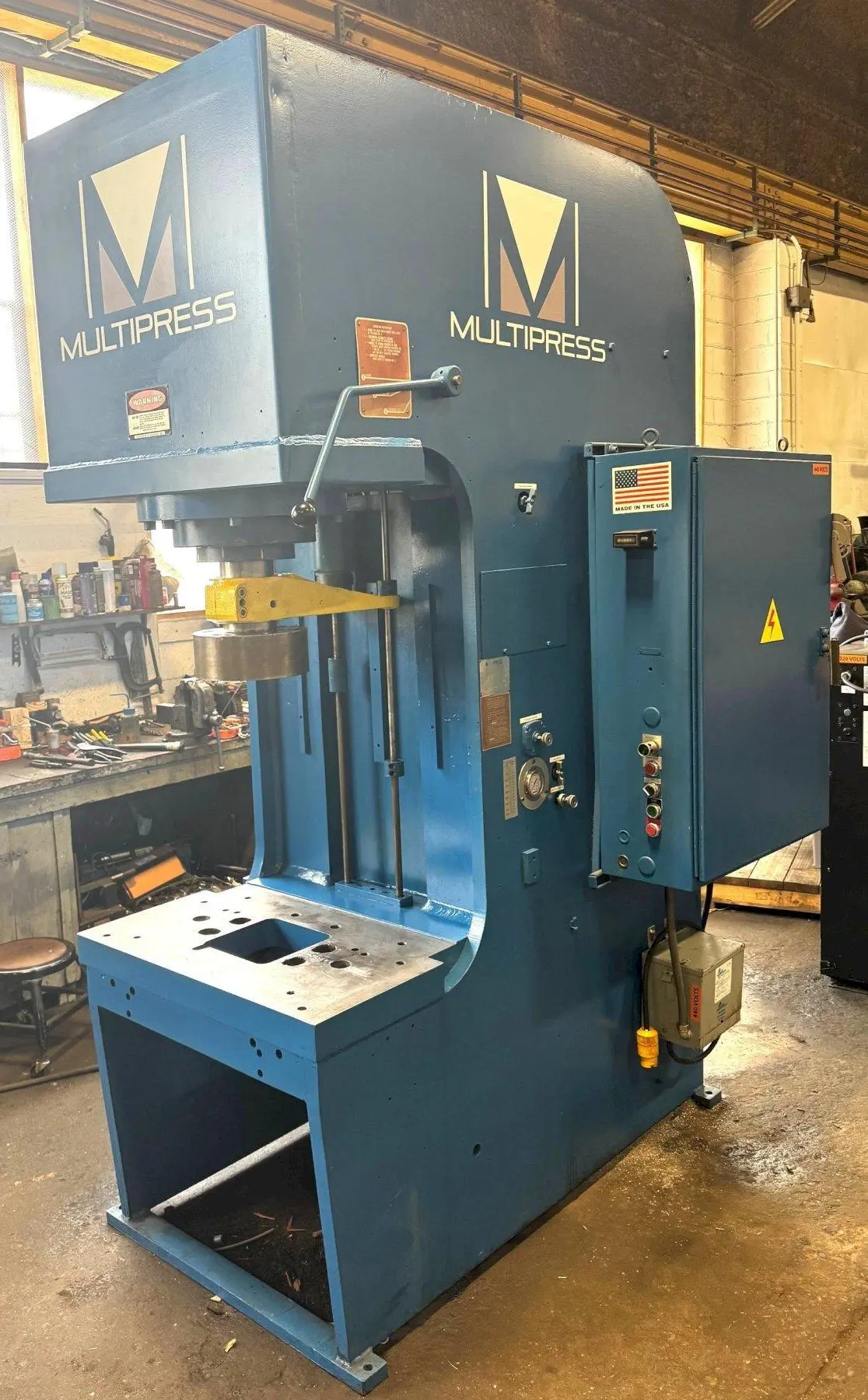

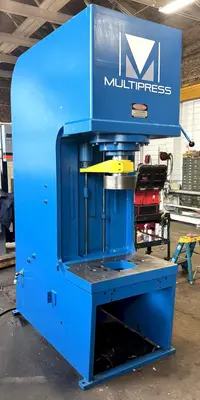

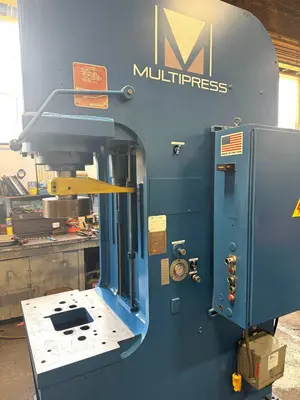

USED 1984 MULTIPRESS FQ-75-30H
Overview
MULTIPRESS GAP FRAME HYDRAULIC PRESS

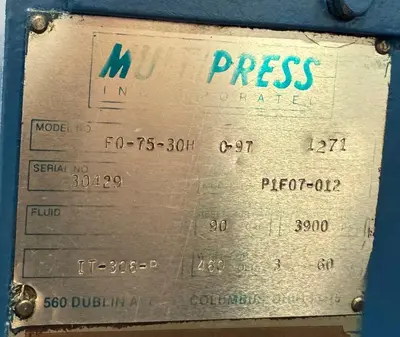

MODEL: FQ-75-30H
SERIAL NUMBER: 30429
GENERAL SPECIFICATIONS
Capacity: 75 Tons
Stroke: 15"
Daylight: 30"
Throat: 13"
Bed Size:
Bed Height: 32"
Piston Diameter: 7"
Rod Diameter: 5"
Ram Speed, Closing: 232 IPM
Ram Speed, Pressing: 114 IPM
Ram Speed, Return: 242 IPM
Maximum Operating Pressure: 3900 PSI
Reservoir Capacity: 90 Gallons
EQUIPPED WITH
30 HP Motor, 230/460/60/3
Lever Operation
Pressing Speed Adjustment Valve
Pressure Gauge
Emergency Stop Button
Non-Rotating Ram Guide

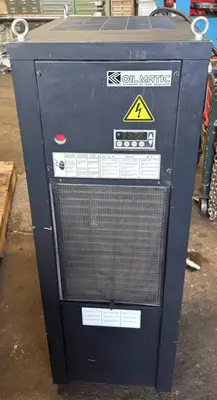

Oil Matic Oil Cooler
Approximate Weight: 12,000 Lbs.
F.O.B. Cincinnati, Ohio
ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER
